Timing Chain Idler Sprocket Installation - Left Side

WARNING: This page is about a different variant/trim than selected.

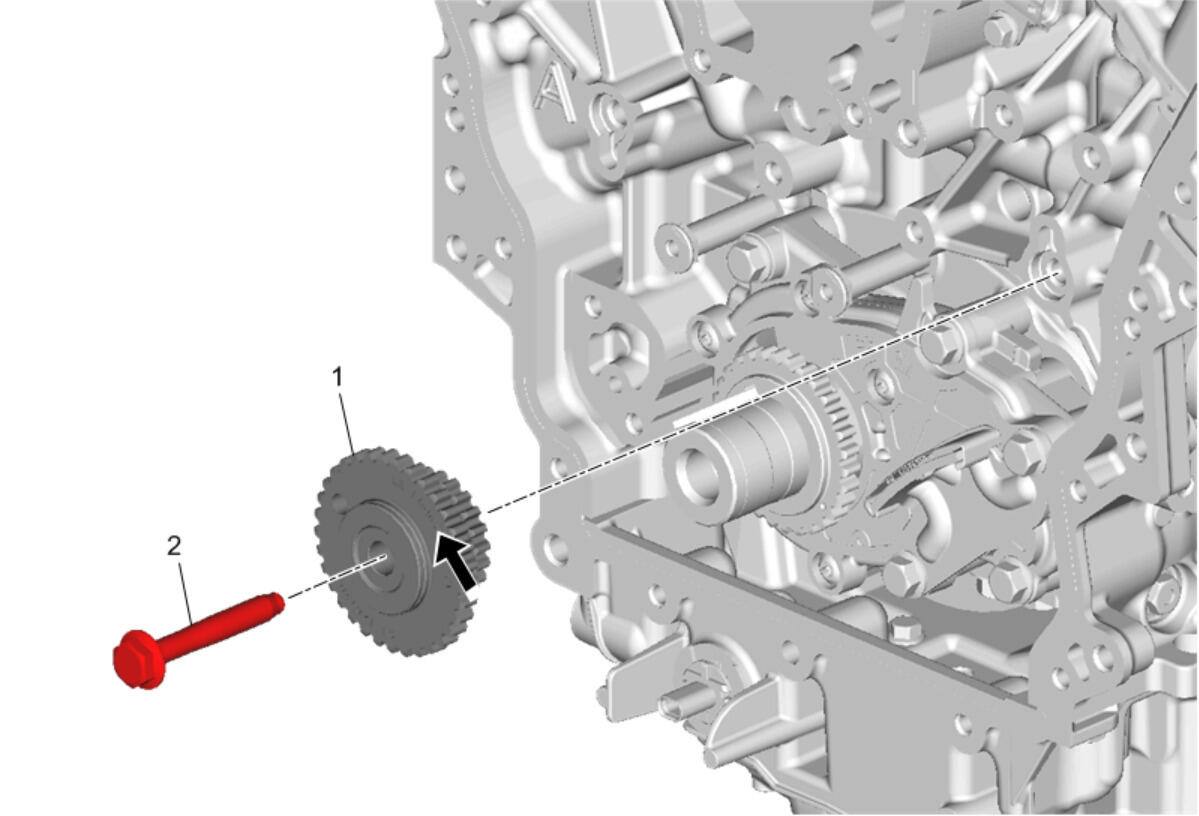

Fig 1: Timing Chain Idler Sprocket
GM4596873Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Left Side Timing Chain Idler Sprocket
  1. Ensure that the left timing chain idler sprocket is being installed. The recessed hub and the larger sprocket of the left timing chain idler sprocket is installed outward.
  2. Place the left camshaft intermediate drive chain idler to the cylinder block.
2 Timing Chain Idler Sprocket Shaft Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
58 N.m (43 lb ft)
