Oil Pan Removal

WARNING: This page is about a different variant/trim than selected.

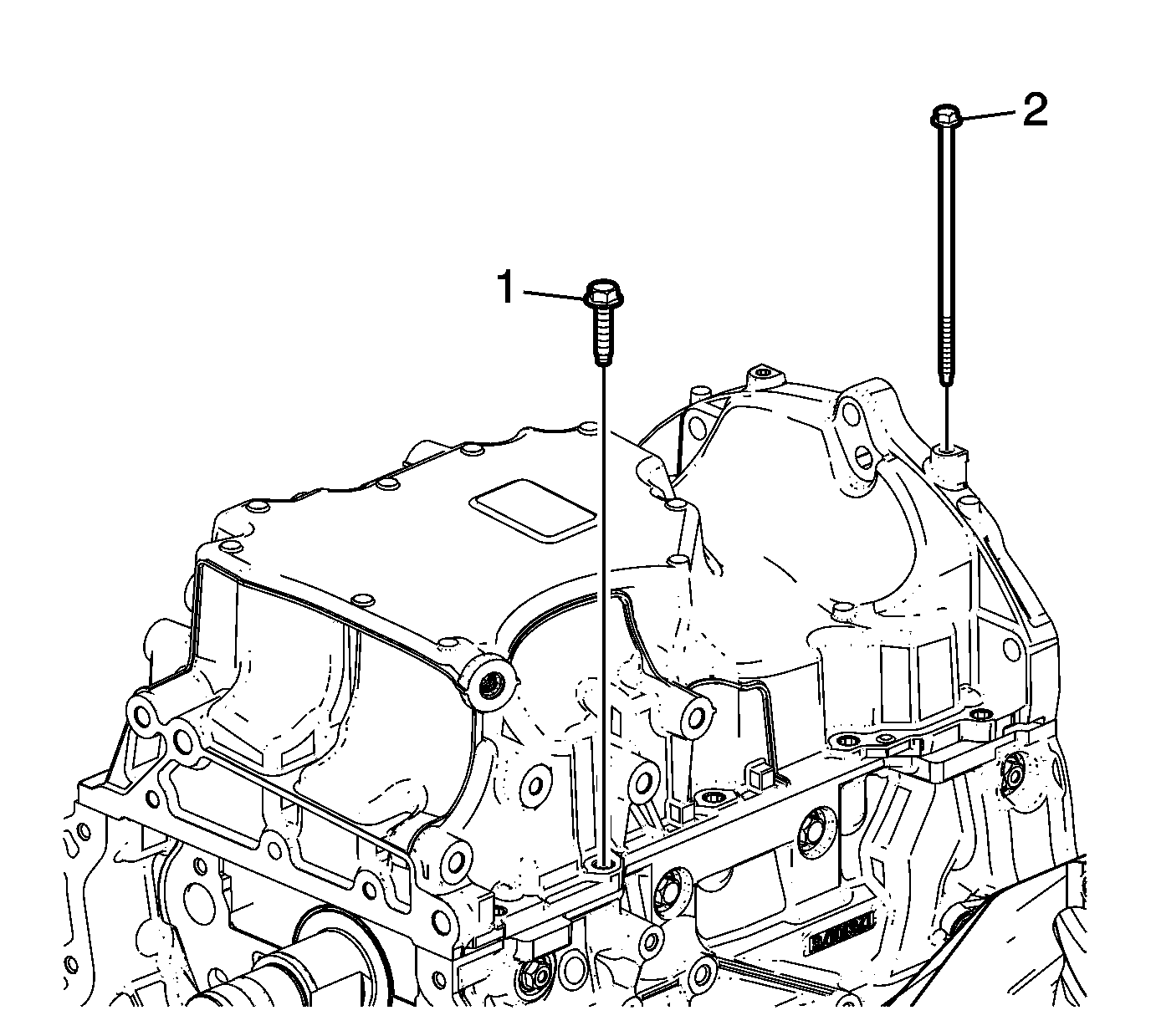

    Fig 1: Engine Oil Pan Bolts
    GM2202037Courtesy of GENERAL MOTORS COMPANY
  1. Remove the oil pan bolts (1) and (2).
  2. Using the pry points located at the edge of the oil pan separate the RTV sealant.

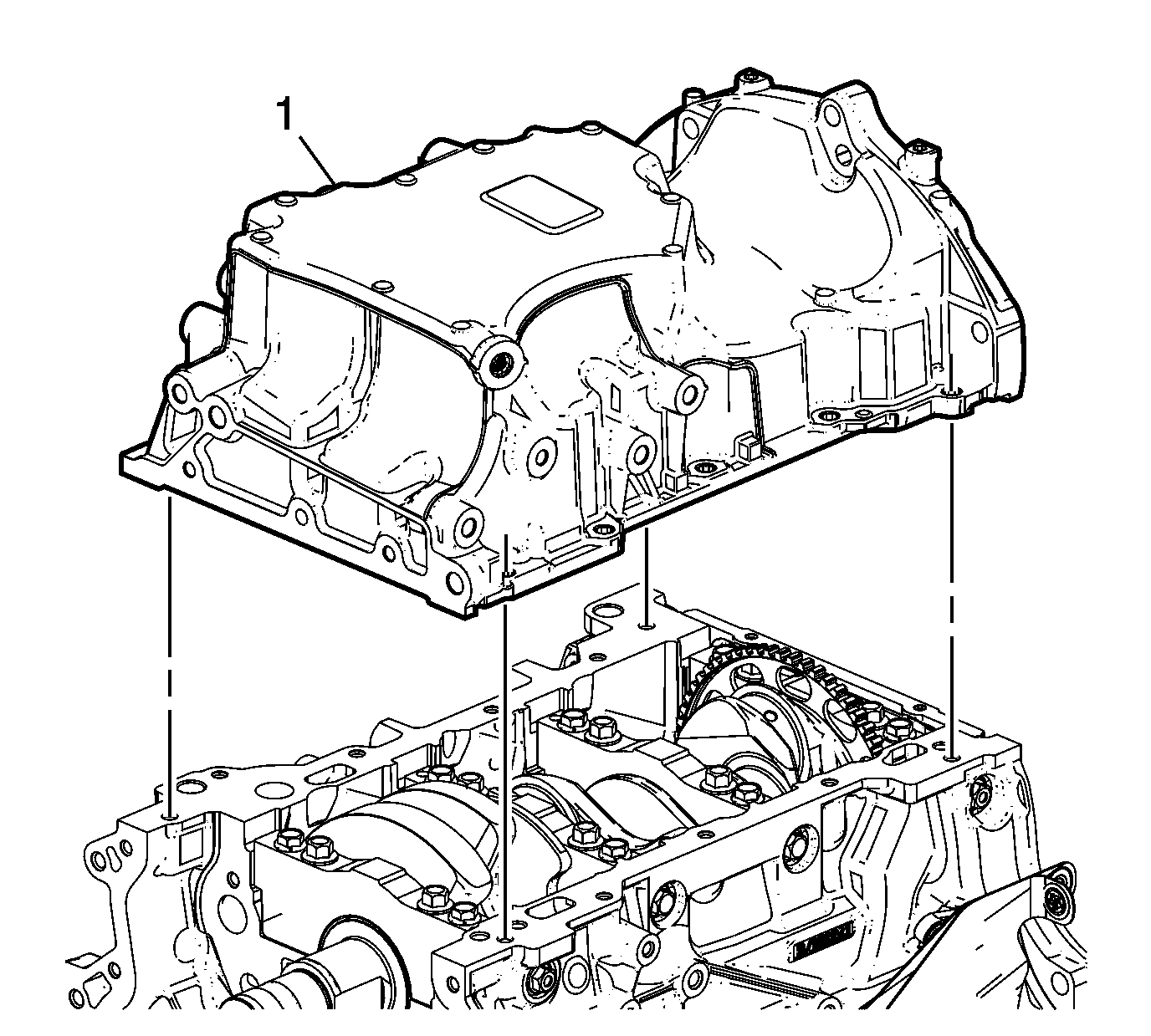

    3. Fig 2: Engine Oil Pan
    GM2202038Courtesy of GENERAL MOTORS COMPANY
  3. Remove the oil pan (1) from the block.
