Oil Pan Installation

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Sealant Application Locations On Block Pan Rail And Crankshaft Rear Oil Seal Housing
    GM1306200Courtesy of GENERAL MOTORS COMPANY
  1. Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
  2. Place a 3 mm (0.118 in) bead of RTV sealant, on the block pan rail and the crankshaft rear oil seal housing (1). Refer to Adhesives, Fluids, Lubricants, and Sealers .
    3. Fig 2: Engine Oil Pan
    GM2202038Courtesy of GENERAL MOTORS COMPANY
  3. Position the oil pan (1) onto the block.
    4. Fig 3: Engine Oil Pan Bolts
    GM2202037Courtesy of GENERAL MOTORS COMPANY
  4. Loosely install the oil pan bolts (1) and (2).

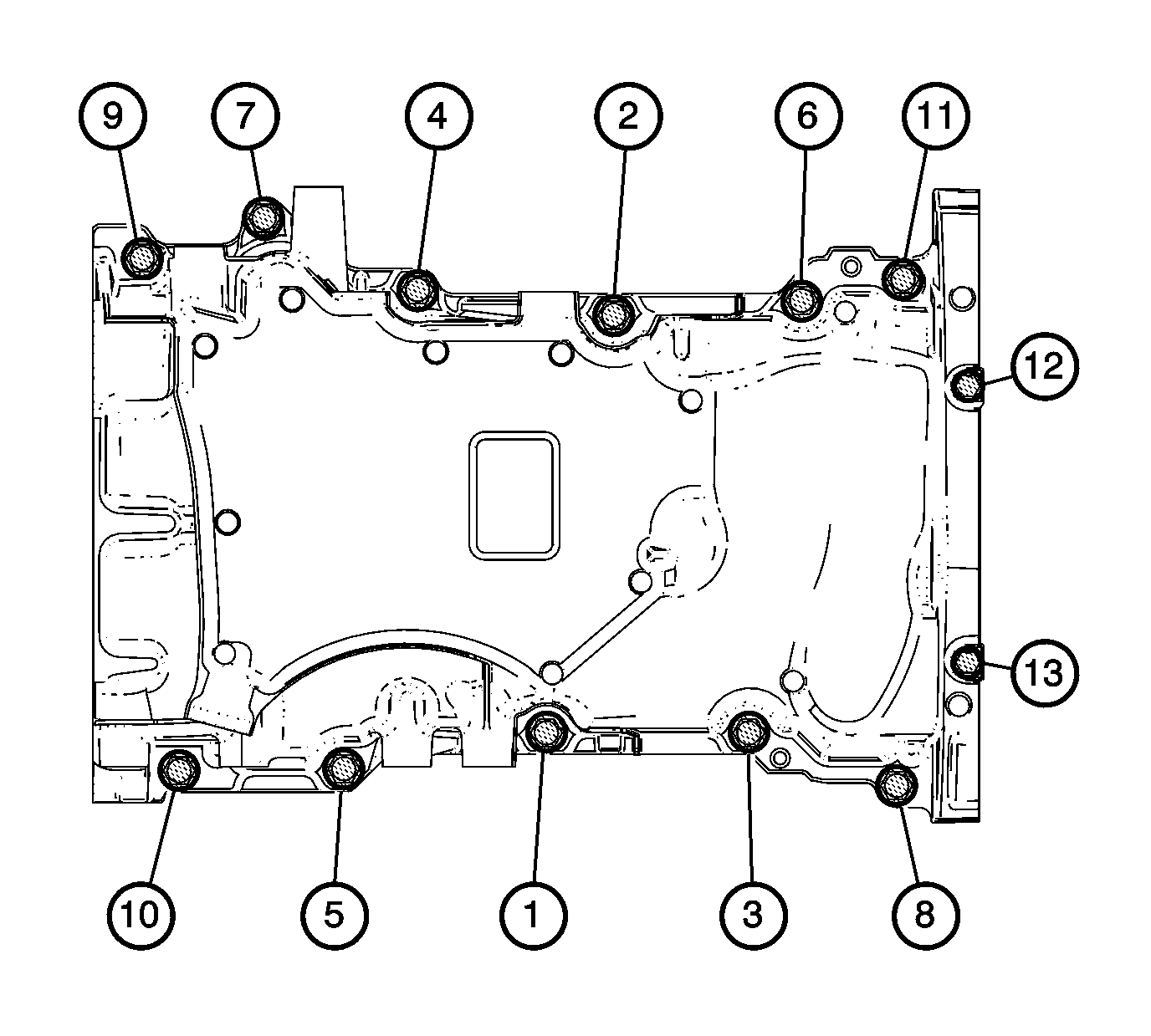

    5. Fig 4: Engine Oil Pan Bolt Tightening Sequence
    GM2202065Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  5. Tighten the oil pan bolts in sequence shown.
    1. Tighten the 8 mm bolts (1-11) to 25 N.m (18 lb ft).
    2. Tighten the 6 mm bolts (12, 13) to 10 N.m (89 lb in).
