Inspection Procedure

WARNING: This page is about a different variant/trim than selected.

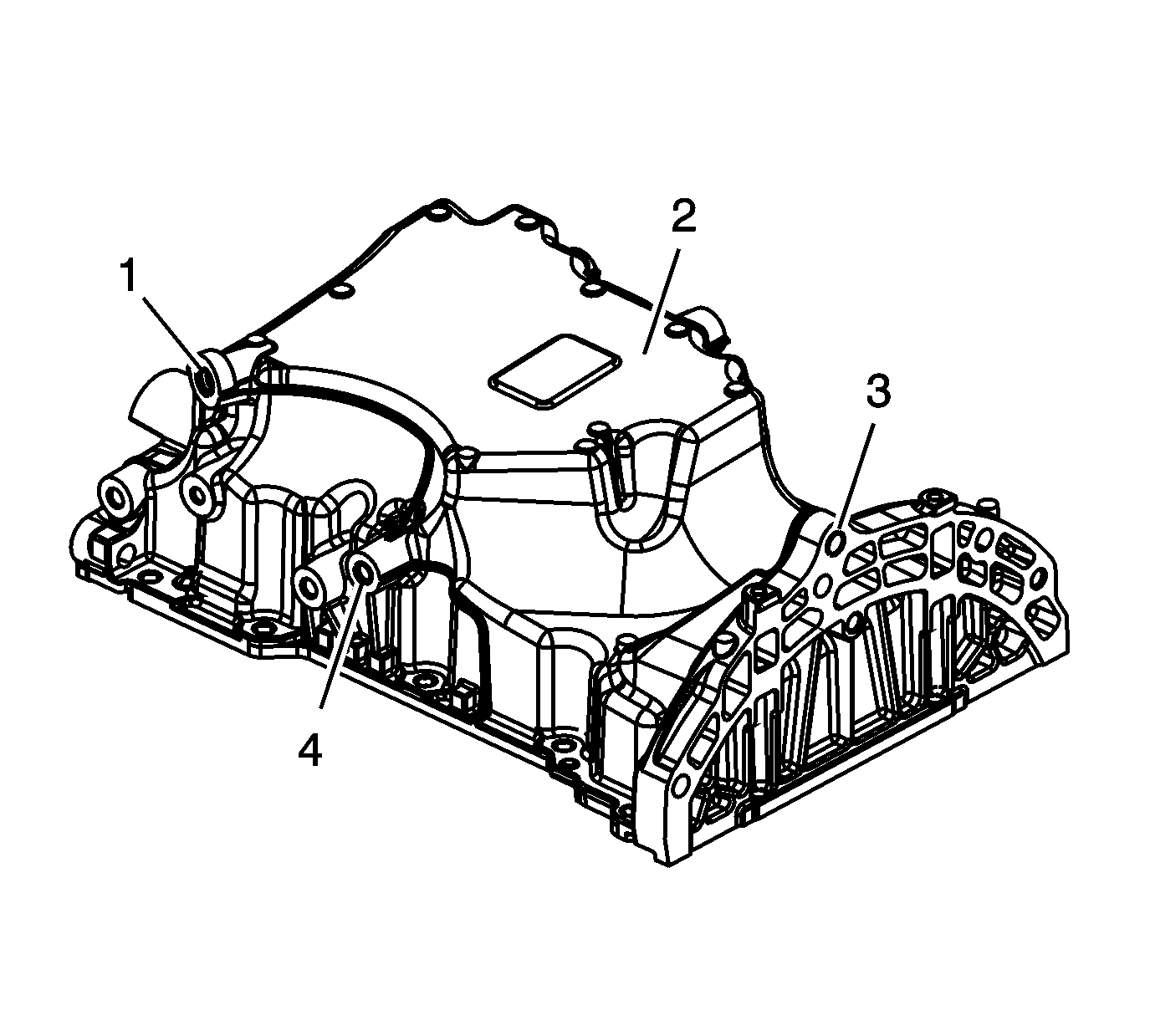

Fig 1: Oil Pan Exterior Inspection Points

Courtesy of GENERAL MOTORS COMPANY

Inspect the exterior of the oil pan for the following conditions:
- Dents or damage to the exterior (2)
- Damage to the drain plug or drain plug hole (1)
- Damage to the brace mounting bosses (4)
- Damage to the mounting bosses (3)

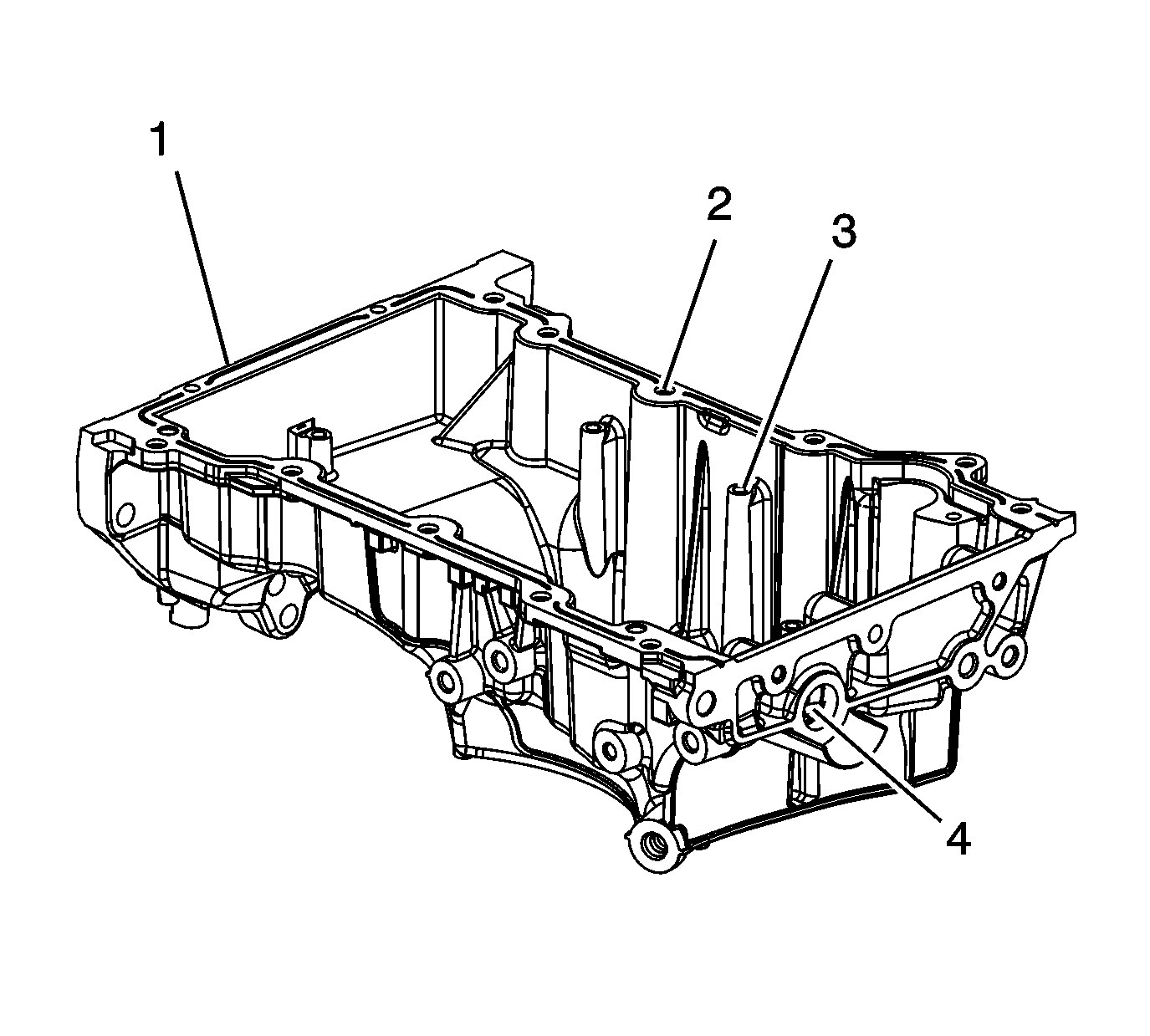

Fig 2: Oil Pan Interior Inspection Points

Courtesy of GENERAL MOTORS COMPANY

Inspect the interior of the oil pan for the following conditions:
- Gouges or damage to the oil pan sealing surfaces (1)
- Damage to the oil pan scraper mounting holes (2)
- Damage to the bolt holes (3)
- Damage to the engine oil level switch hole (4)
Repair or replace the oil pan and/or oil pan components as necessary.
