Oil Pan Assemble

WARNING: This page is about a different variant/trim than selected.
    CAUTION:

    Refer to Fastener Caution .

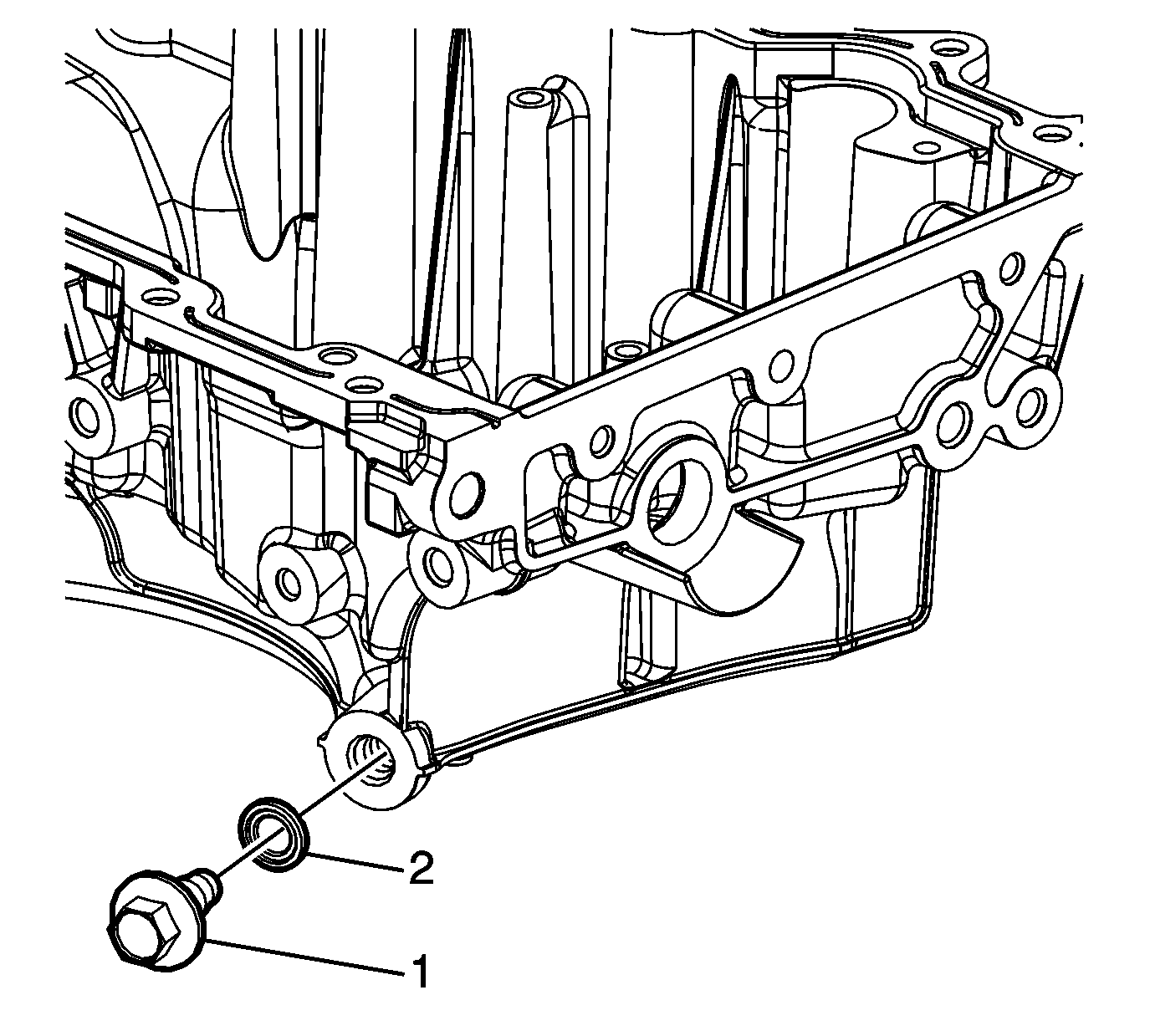

    Fig 1: Oil Pan Drain Plug And Seal
    GM2736536Courtesy of GENERAL MOTORS COMPANY
  1. Install the oil pan drain plug (1) and NEW O-ring seal (2) and tighten to 25 N.m (18 lb ft).
    2. Fig 2: Engine Oil Level Switch, Seal & Clip
    GM2736533Courtesy of GENERAL MOTORS COMPANY
  2. Install the NEW engine oil level switch seal (1).
  3. Install the engine oil level switch (3).
  4. Install the engine oil level switch bolts (2) and tighten to 10 N.m (89 lb in).
  5. Install NEW engine oil level switch clip (4).
    6. Fig 3: Oil Suction Pipe Seal
    GM2736537Courtesy of GENERAL MOTORS COMPANY
  6. Install the NEW oil suction pipe seal (1).
    7. Fig 4: Oil Suction Pipe Bolts
    GM2736534Courtesy of GENERAL MOTORS COMPANY
  7. Install the oil suction pipe (2).
  8. Install the oil suction pipe bolts (1) and tighten to 10 N.m (89 lb in).
    9. Fig 5: Oil Pan Scraper
    GM2736535Courtesy of GENERAL MOTORS COMPANY
  9. Install the oil pan scraper (1).
  10. Install the oil pan scraper bolts (2) and tighten to 10 N.m (89 lb in).
