Oil Level Indicator and Tube Removal

WARNING: This page is about a different variant/trim than selected.

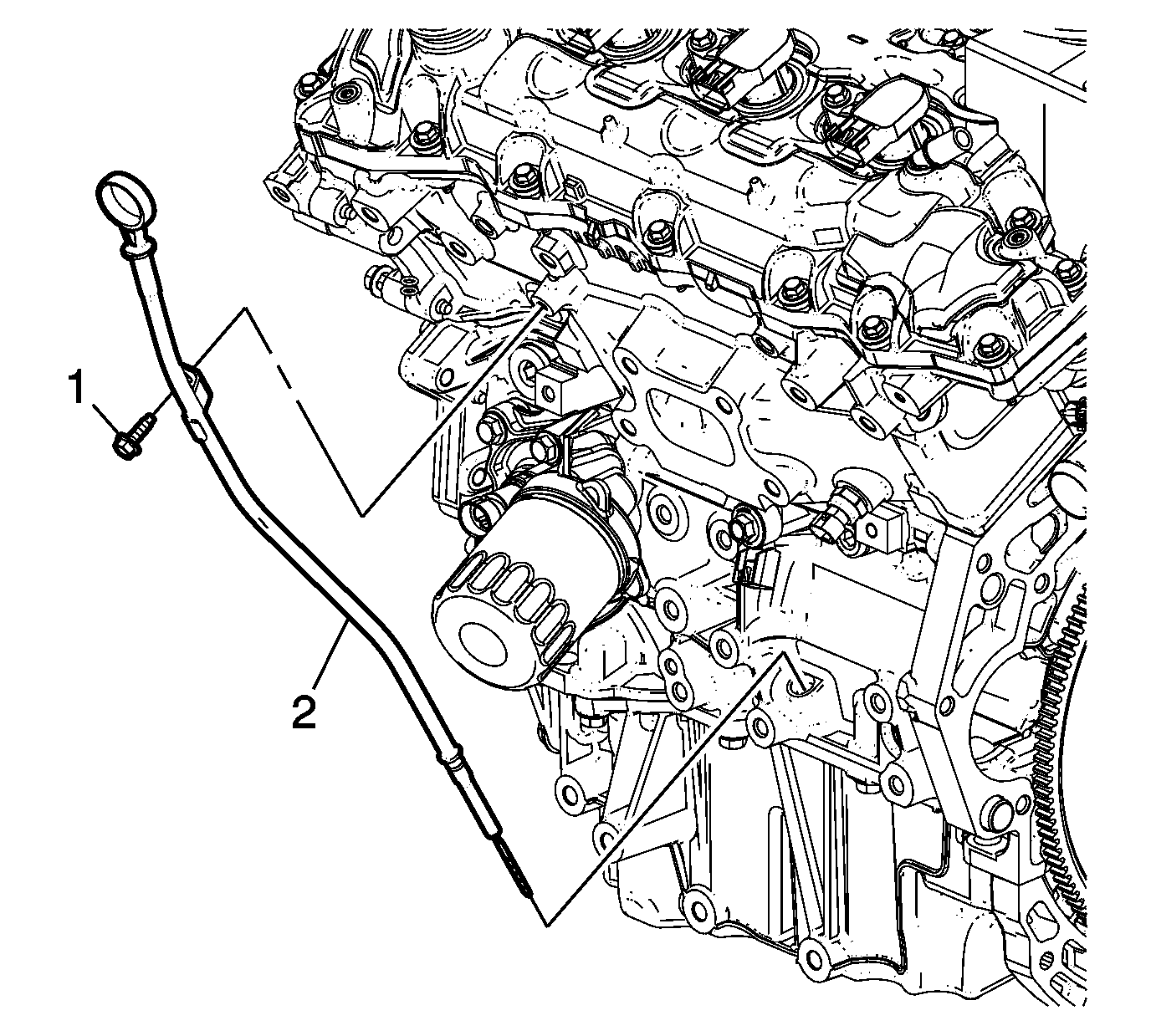

    Fig 1: Oil Level Indicator And Tube
    GM2201939Courtesy of GENERAL MOTORS COMPANY
  1. Remove the oil level indicator tube bracket bolt (1).
  2. Remove the oil level indicator and tube (2) by sliding the tube out from the lower crankcase hole.
    3. Fig 2: Oil Level Indicator Tube O-Ring
    GM1583980Courtesy of GENERAL MOTORS COMPANY
  3. Remove and discard the O-ring from the oil level indicator tube if damaged.
