Engine Coolant Thermostat Housing Removal
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY

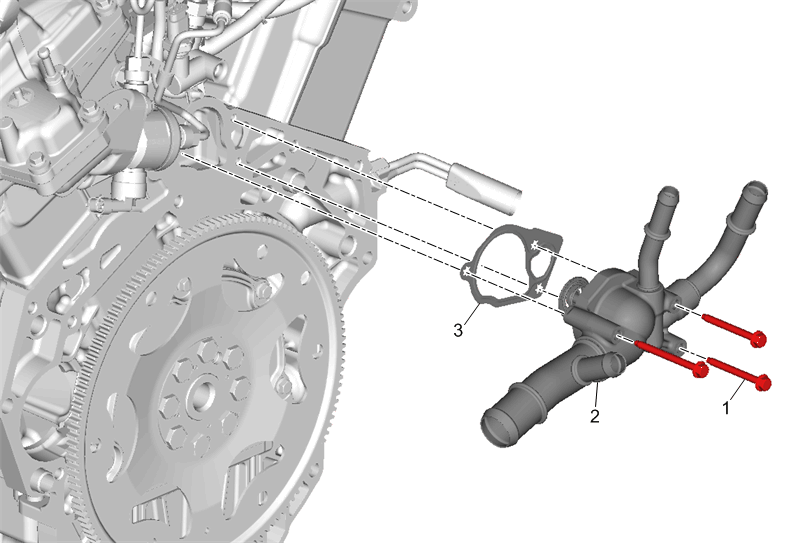

| Callout |
Component Name |
| 1 |
Engine Coolant Thermostat Housing Bolt (Qty: 3) |
| 2 |
Engine Coolant Thermostat Housing |
| 3 |
Engine Coolant Thermostat Housing Gasket
NOTE:
Remove and DISCARD the gasket.
|
