Engine Coolant Thermostat Housing Installation
WARNING: This page is about a different variant/trim than selected.

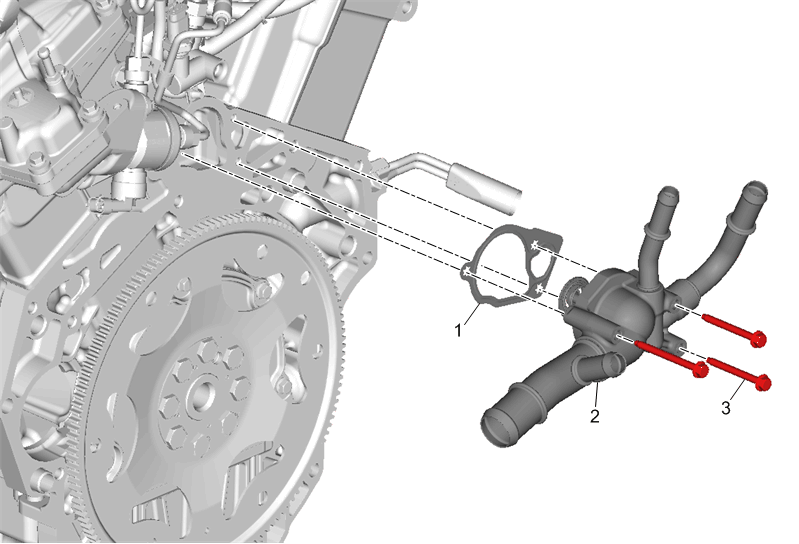

| Callout | Component Name |
|---|---|
| 1 | Engine Coolant Thermostat Housing Gasket
NOTE:
Install a NEW gasket. |
| 2 | Engine Coolant Thermostat Housing |
| 3 | Engine Coolant Thermostat Housing Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
