Cylinder Head Removal - Right Side

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Right Cylinder Head And Bolts
    GM2202033Courtesy of GENERAL MOTORS COMPANY
  1. Remove the right cylinder head bolts (1) and discard.
  2. Remove the right cylinder head (2).
    3. Fig 2: Right Cylinder Head Gasket
    GM2202034Courtesy of GENERAL MOTORS COMPANY
  3. Remove and discard the right cylinder head gasket (1).

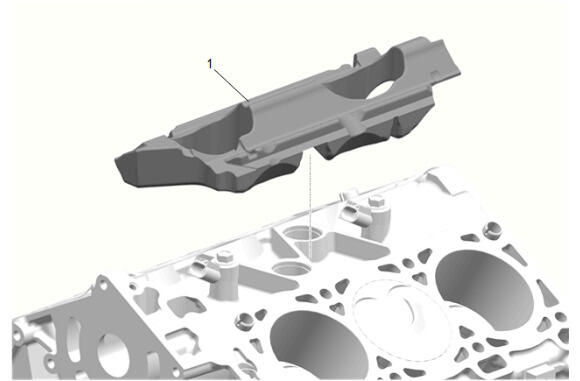

    4. Fig 3: Fuel Injection Fuel Rail Noise Shield-Lower
    GM3707163Courtesy of GENERAL MOTORS COMPANY
  4. Remove the fuel injection fuel rail noise shield-lower (1).
