Secondary Camshaft Drive Chain Components Removal - Right Side

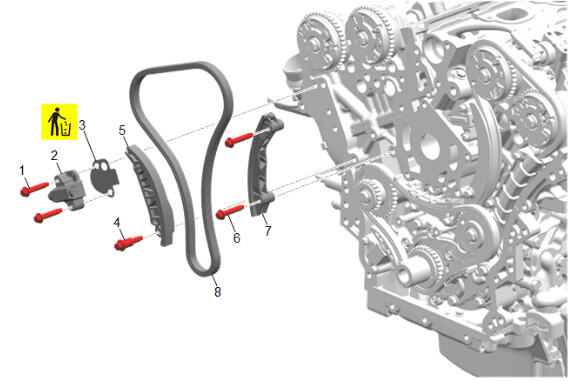

Fig 1: Secondary Camshaft Drive Chain Components - Right Side

Courtesy of GENERAL MOTORS COMPANY

Secondary Camshaft Drive Chain Components Removal - Right Side

Callout	Component Name
1	Right Secondary Timing Chain Tensioner Bolt
2	Right Secondary Timing Chain Tensioner
3	Right Timing Chain Housing Gasket NOTE: Discard the gasket.
4	Right Secondary Timing Chain Guide Bolt
5	Right Secondary Timing Chain Guide
6	Right Pivot Arm Timing Chain Guide Bolt
7	Right Pivot Arm Timing Chain Guide
8	Secondary Camshaft Intermediate Drive Chain
