Secondary Camshaft Drive Chain Components Removal - Left Side

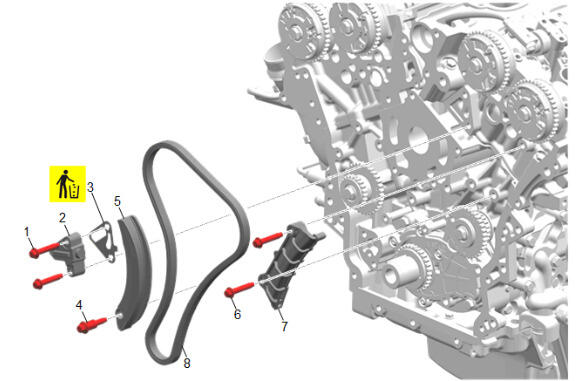

Fig 1: Secondary Camshaft Drive Chain Components - Left Side

Courtesy of GENERAL MOTORS COMPANY

Secondary Camshaft Drive Chain Components Removal - Left Side

Callout	Component Name
1	Left Secondary Timing Chain Tensioner Bolt
2	Left Secondary Timing Chain Tensioner
3	Left Timing Chain Housing Gasket NOTE: Discard the gasket.
4	Left Pivot Arm Timing Chain Guide Bolt
5	Left Pivot Arm Timing Chain Guide
6	Left Secondary Timing Chain Guide Bolt
7	Left Secondary Timing Chain Guide
8	Secondary Camshaft Intermediate Drive Chain
