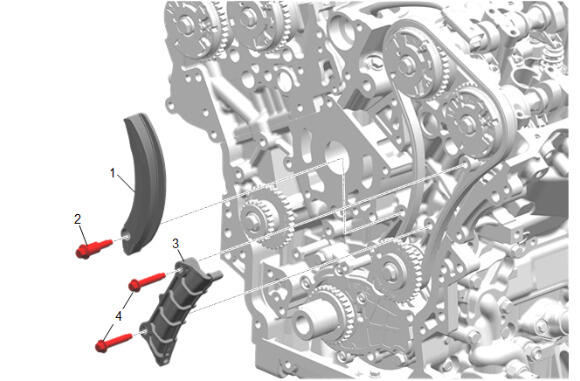

Secondary Camshaft Drive Chain Guide and Shoe Installation - Left
| Callout | Component Name |
|---|---|
| 1 | Left Pivot Arm Timing Chain Guide |
| 2 | Left Pivot Arm Timing Chain Guide Bolt
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 3 | Left Secondary Timing Chain Guide |
| 4 | Left Secondary Timing Chain Guide Bolt Tighten 25 N.m (18 lb ft) |
