Primary Timing Chain Guide Installation - Lower and Upper
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY Primary Timing Chain Guide Installation - Lower and Upper

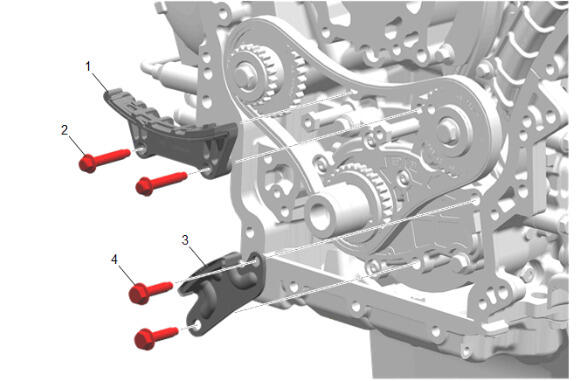

| Callout |
Component Name |
| 1 |
Upper Primary Timing Chain Guide |
| 2 |
Upper Primary Timing Chain Guide Bolt
Tighten
25 N.m (18 lb ft) |
| 3 |
Lower Primary Timing Chain Guide |
| 4 |
Lower Primary Timing Chain Guide Bolt
Tighten
25 N.m (18 lb ft) |
