Primary Camshaft Intermediate Drive Chain Installation

WARNING: This page is about a different variant/trim than selected.

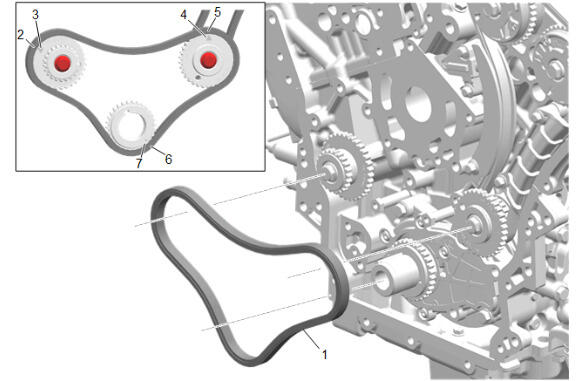

Fig 1: Primary Camshaft Intermediate Drive Chain Components

GM2901741

Courtesy of GENERAL MOTORS COMPANY

Primary Camshaft Intermediate Drive Chain Installation

Callout	Component Name
1	Primary Camshaft Drive Intermediate Chain Procedure Wrap the primary camshaft drive chain around the large sprockets of each camshaft intermediate drive chain idler and the crankshaft sprocket. The left camshaft intermediate drive chain idler timing mark (2) will align with camshaft drive chain timing link (3). The right camshaft intermediate drive chain idler timing mark (4) will align with camshaft drive chain timing link (5). The crankshaft sprocket timing mark (7) will align with camshaft drive chain timing link (6).
2	Left Camshaft Intermediate Drive Chain Idler Timing Mark
3	Camshaft Drive Chain Timing Link
4	Right Camshaft Intermediate Drive Chain Idler Timing Mark
5	Camshaft Drive Chain Timing Link
6	Camshaft Drive Chain Timing Link
7	Crankshaft Sprocket Timing Mark
