Camshaft Position Actuator Removal - Right Side Exhaust
WARNING: This page is about a different variant/trim than selected.
- Use an open wrench on the hex cast into the camshaft in order to prevent engine rotation when loosening the camshaft position actuator bolt.

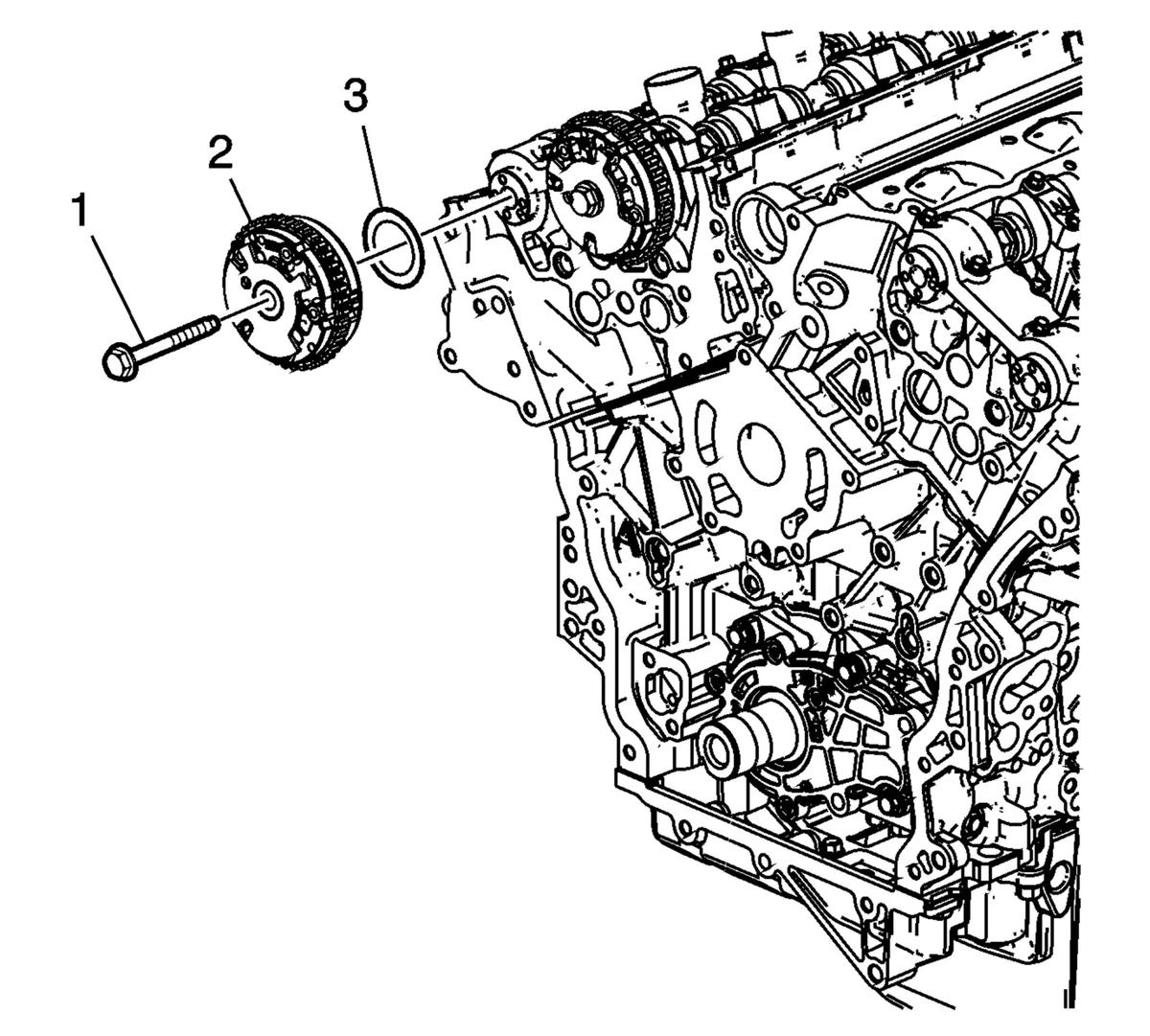

- Remove the right exhaust camshaft position actuator bolt (1).
- Remove the right exhaust camshaft position actuator (2).
- Remove the camshaft thrust washer if applicable (3).
CAUTION:
Refer to Torque Reaction Against Timing Drive Chain Caution .
