Camshaft Position Actuator Installation - Right Side Exhaust
WARNING: This page is about a different variant/trim than selected.
- Ensure the proper camshaft position actuator is installed. Observe the body of the camshaft position actuator for the "EX" marking (1). The marking is for an exhaust camshaft position actuator.
- Ensure the proper timing mark is used. Observe the outer ring of the camshaft position actuator for the triangle marking (2). The marking is for alignment to the highlighted timing chain link on the right side of the engine.
- Use an open wrench on the hex cast into the camshaft in order to prevent camshaft rotation when tightening the camshaft position actuator bolt.
- Apply a liberal amount of lubricant to the back of the camshaft position actuator (1) and front of the camshaft bearing cap (2). Refer to Adhesives, Fluids, Lubricants, and Sealers for recommended lubricant.

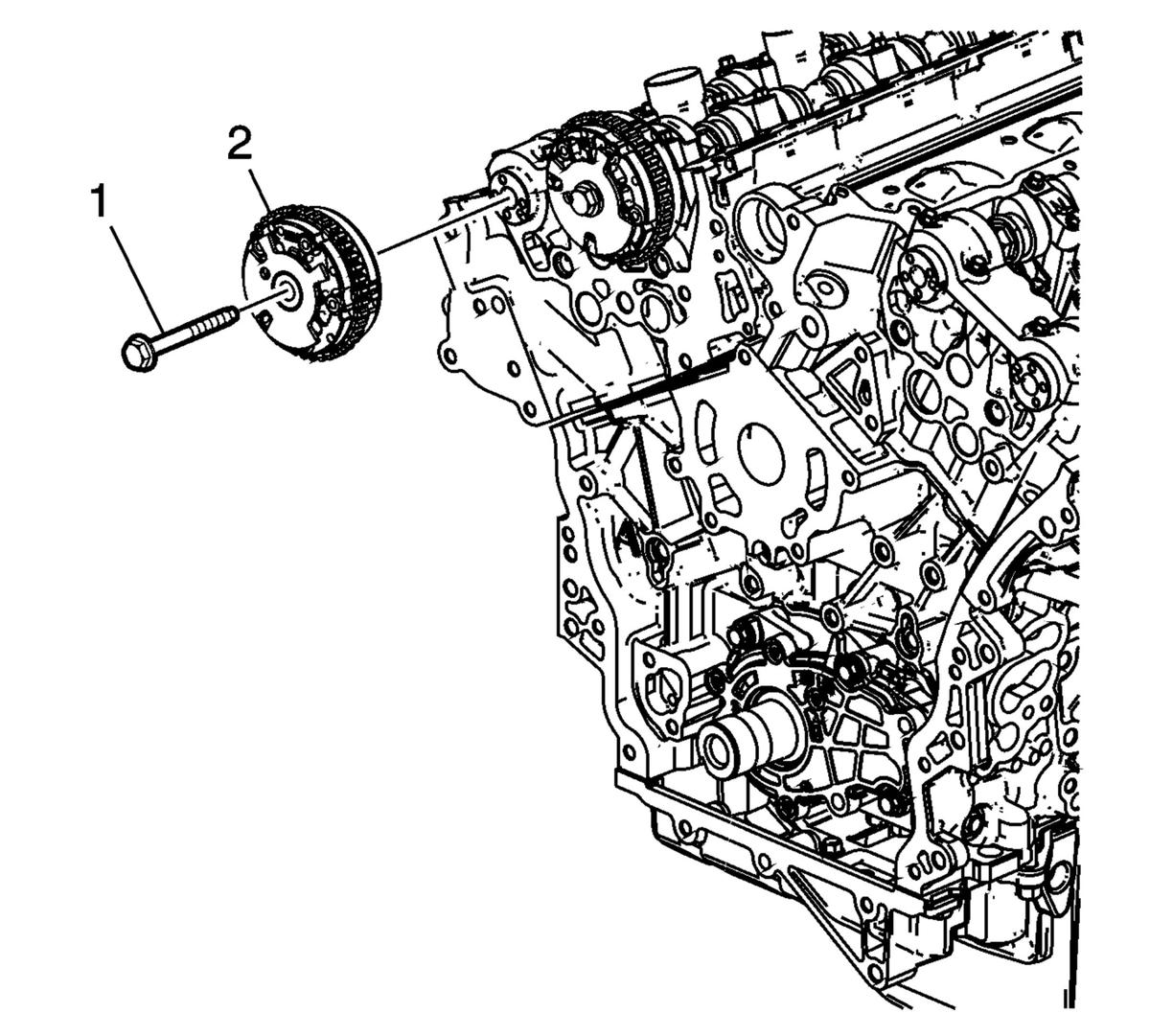

- Install the right exhaust camshaft position actuator (2).
- Install the camshaft position actuator bolt (1) and tighten to 58 N.m (43 lb ft).
CAUTION:
Refer to Torque Reaction Against Timing Drive Chain Caution .
CAUTION:
Refer to Fastener Caution .
