Camshaft Cover Removal - Left Side

WARNING: This page is about a different variant/trim than selected.

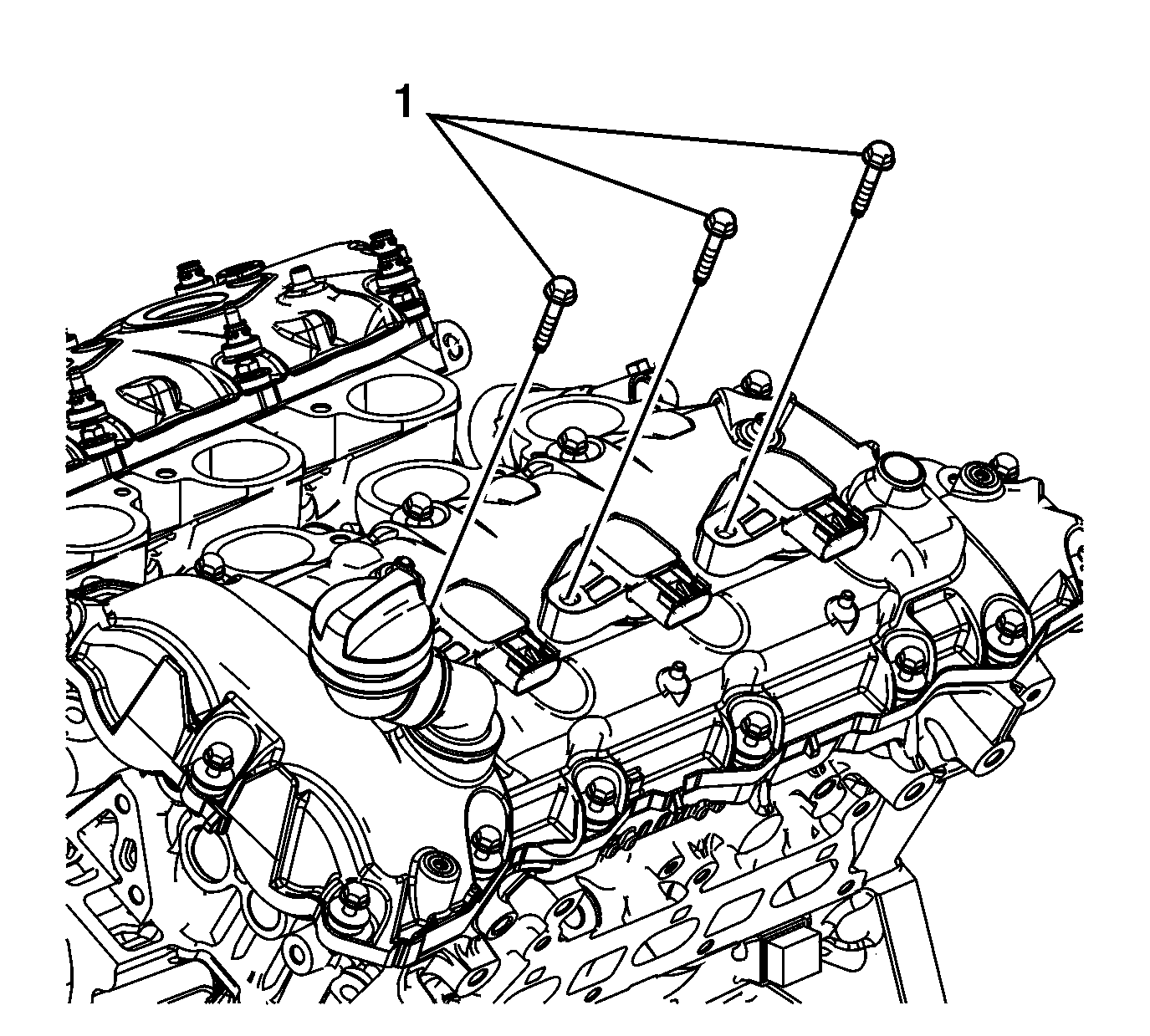

    Fig 1: Ignition Coil Bolts
    GM1977859Courtesy of GENERAL MOTORS COMPANY
  1. Remove the ignition coil bolts (1).

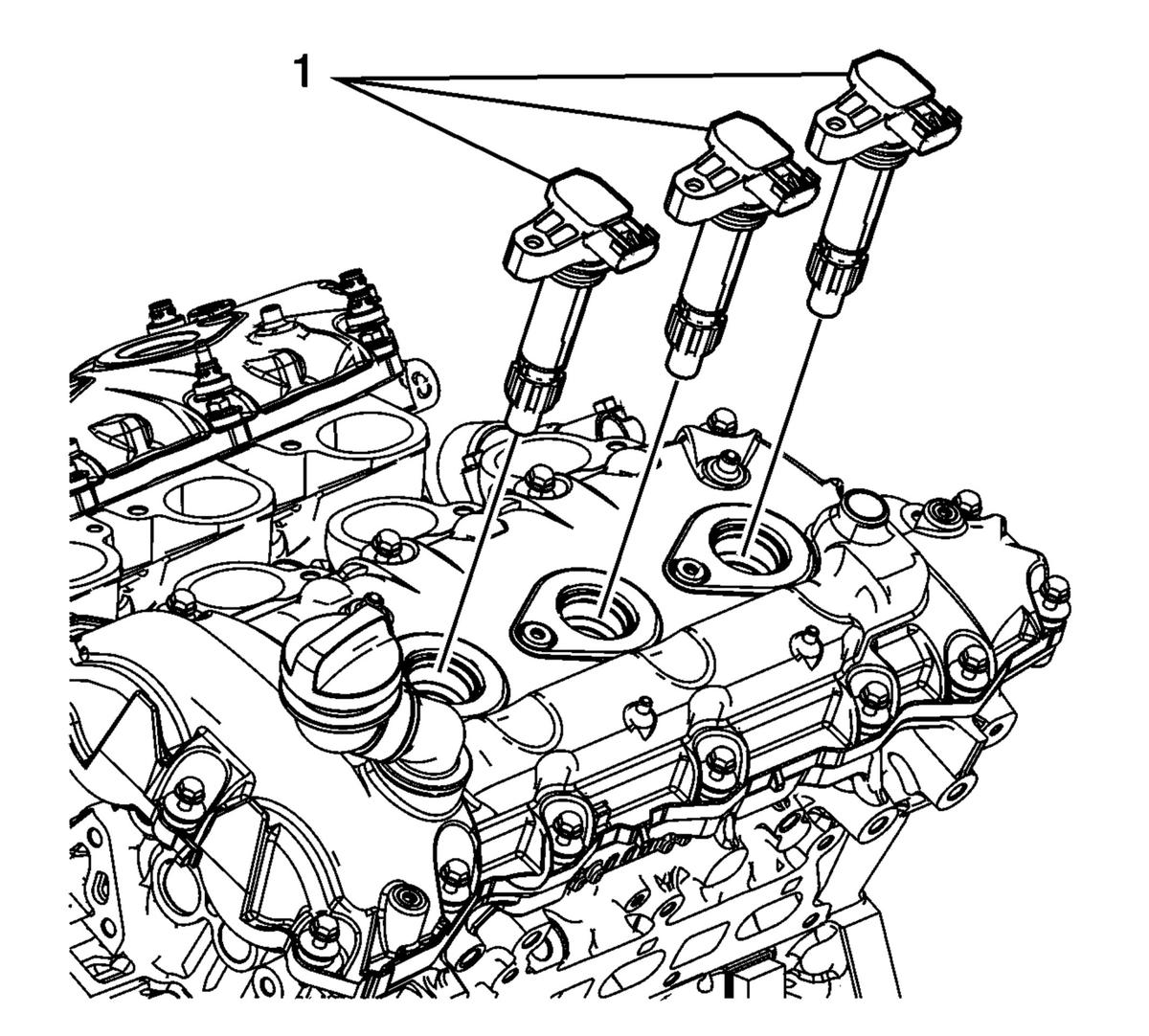

    2. Fig 2: Ignition Coils
    GM1977863Courtesy of GENERAL MOTORS COMPANY
  2. Remove the ignition coils (1).
    3. Fig 3: Left Camshaft Cover Bolts
    GM1977868Courtesy of GENERAL MOTORS COMPANY
  3. Remove the left camshaft cover bolts (1).
  4. Remove and discard the camshaft cover grommets and camshaft cover bolts if they are serviced with the grommet.

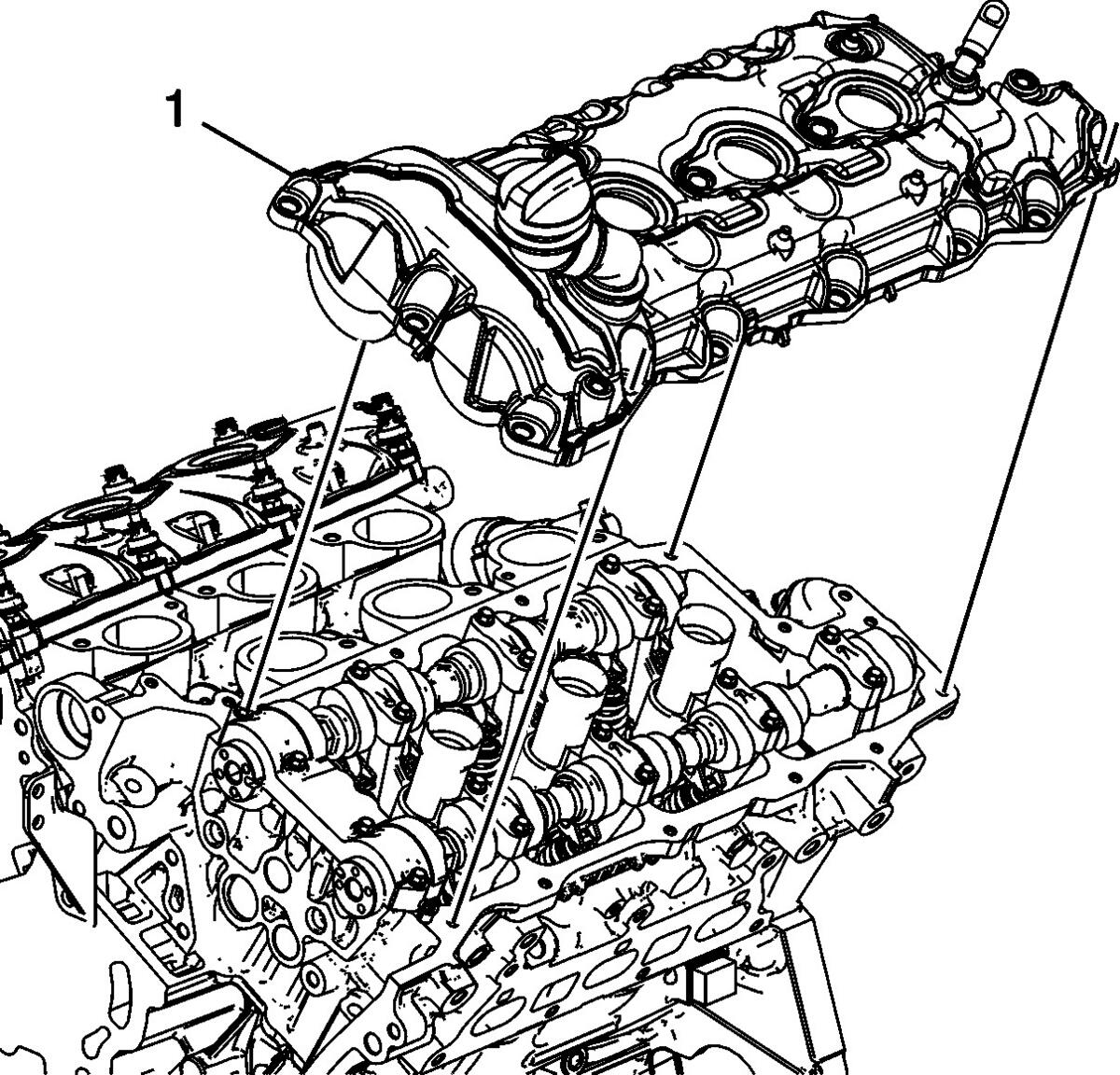

    5. Fig 4: Left Camshaft Cover And Left Cylinder Head
    GM1977870Courtesy of GENERAL MOTORS COMPANY
  5. Remove the left camshaft cover (1) from the left cylinder head.
