Right Camshaft Cover

WARNING: This page is about a different variant/trim than selected.

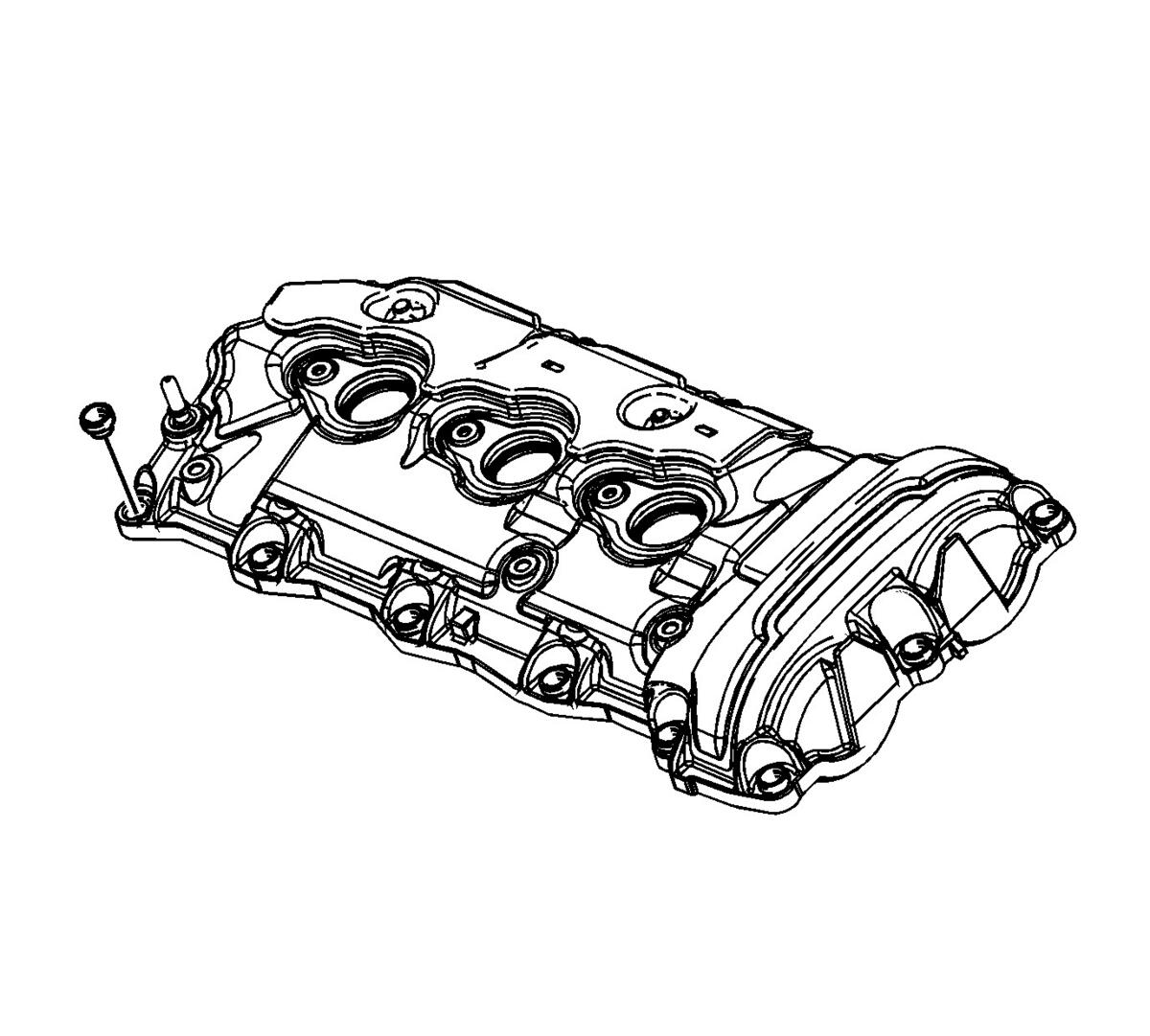

    Fig 1: Right Camshaft Cover Bolt Grommets
    GM1833742Courtesy of GENERAL MOTORS COMPANY
  1. Remove and discard the right camshaft cover bolt grommets.

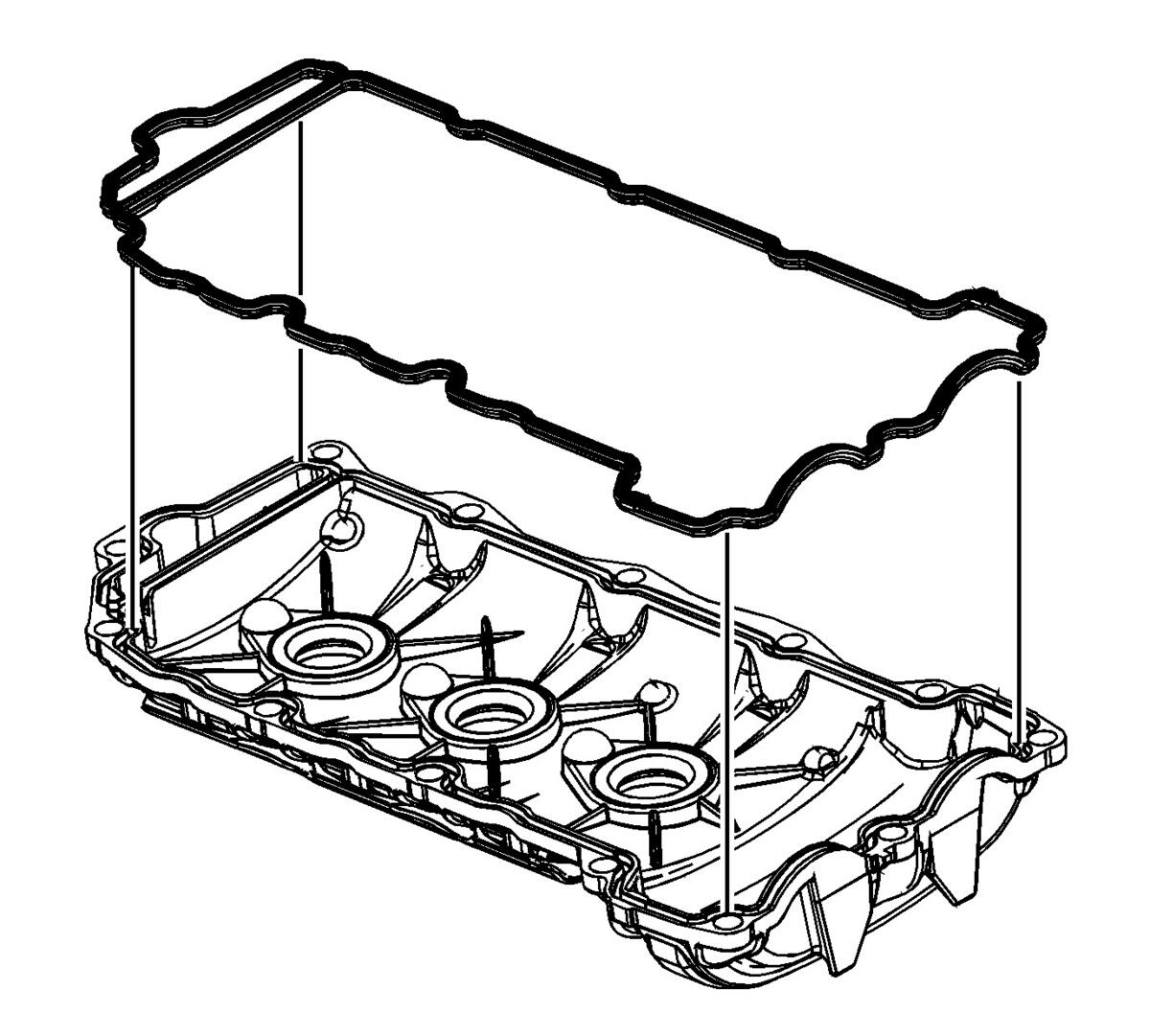

    2. Fig 2: Right Camshaft Cover Gasket
    GM1833744Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not reuse the camshaft cover gasket and spark plug shield tube seals.

  2. Remove and discard the right camshaft cover gasket.

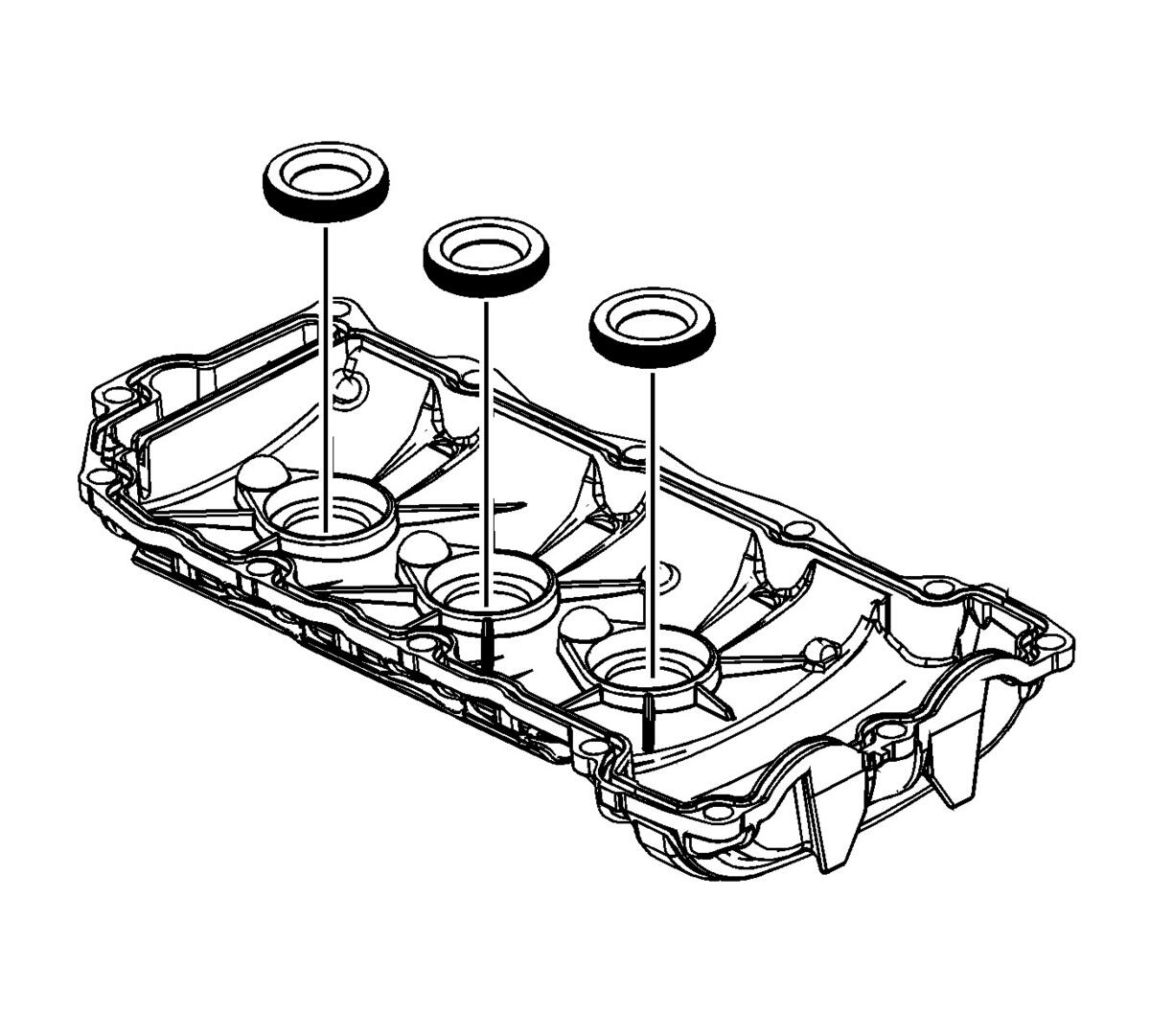

    3. Fig 3: Right Spark Plug Shield Tube Seals
    GM1833747Courtesy of GENERAL MOTORS COMPANY
  3. Remove and discard the right spark plug shield tube seals.
