Left Camshaft Cover

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Left Camshaft Cover Bolt Grommets
    GM1992526Courtesy of GENERAL MOTORS COMPANY
  1. Remove and discard the left camshaft cover bolt grommets.
    2. Fig 2: Fuel Injector Sight Shield Ballstud
    GM1992528Courtesy of GENERAL MOTORS COMPANY
  2. Remove the fuel injector sight shield ballstud.
    3. Fig 3: Oil Fill Cap
    GM1992531Courtesy of GENERAL MOTORS COMPANY
  3. Remove the oil fill cap.
    4. Fig 4: Left Camshaft Cover Gasket
    GM1992532Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not reuse the camshaft cover gasket and spark plug shield tube seals.

  4. Remove and discard the left camshaft cover gasket.

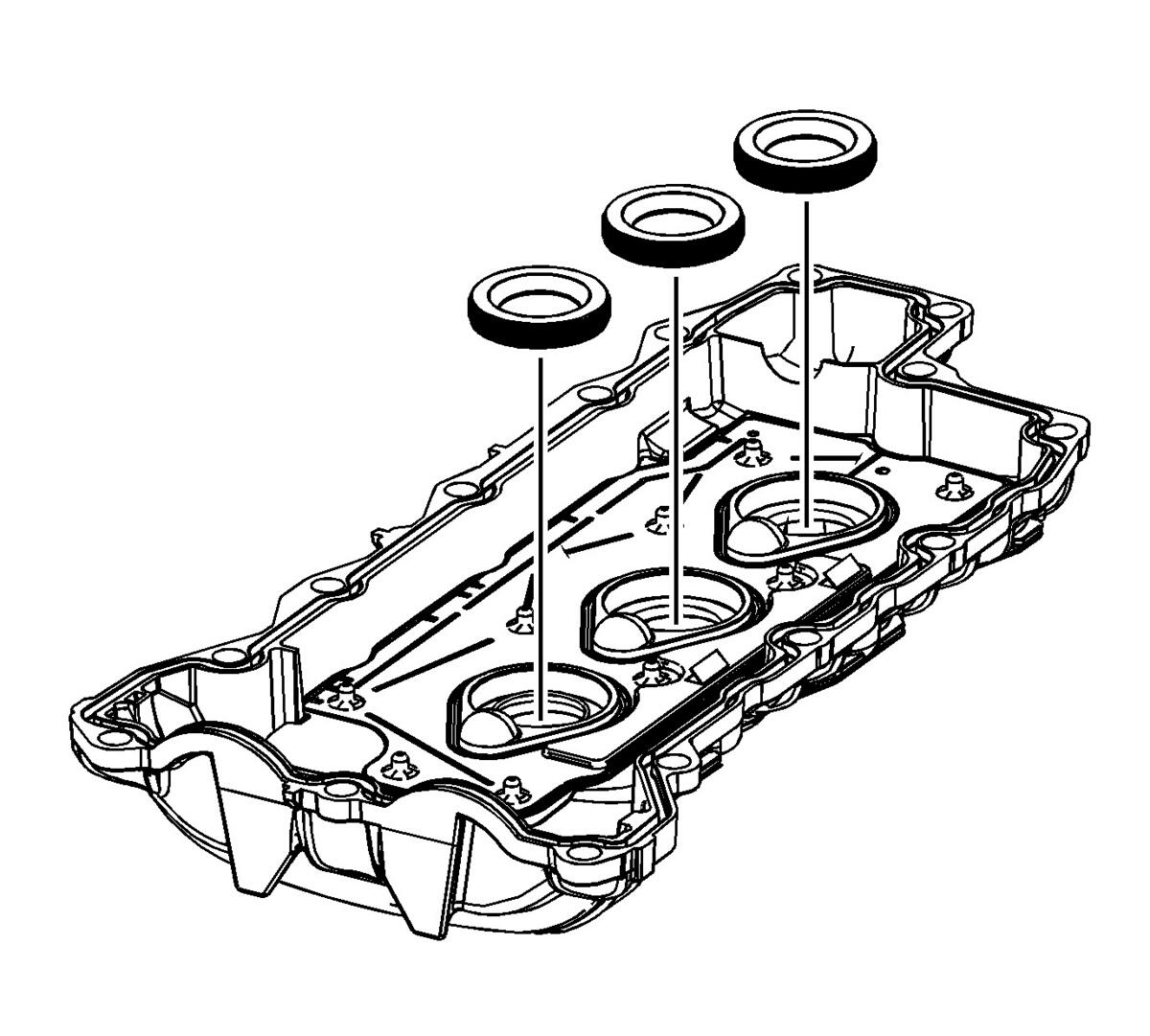

    5. Fig 5: Left Spark Plug Shield Tube Seals
    GM1992534Courtesy of GENERAL MOTORS COMPANY
  5. Remove and discard the left spark plug shield tube seals.
