Right Camshaft Cover

WARNING: This page is about a different variant/trim than selected.

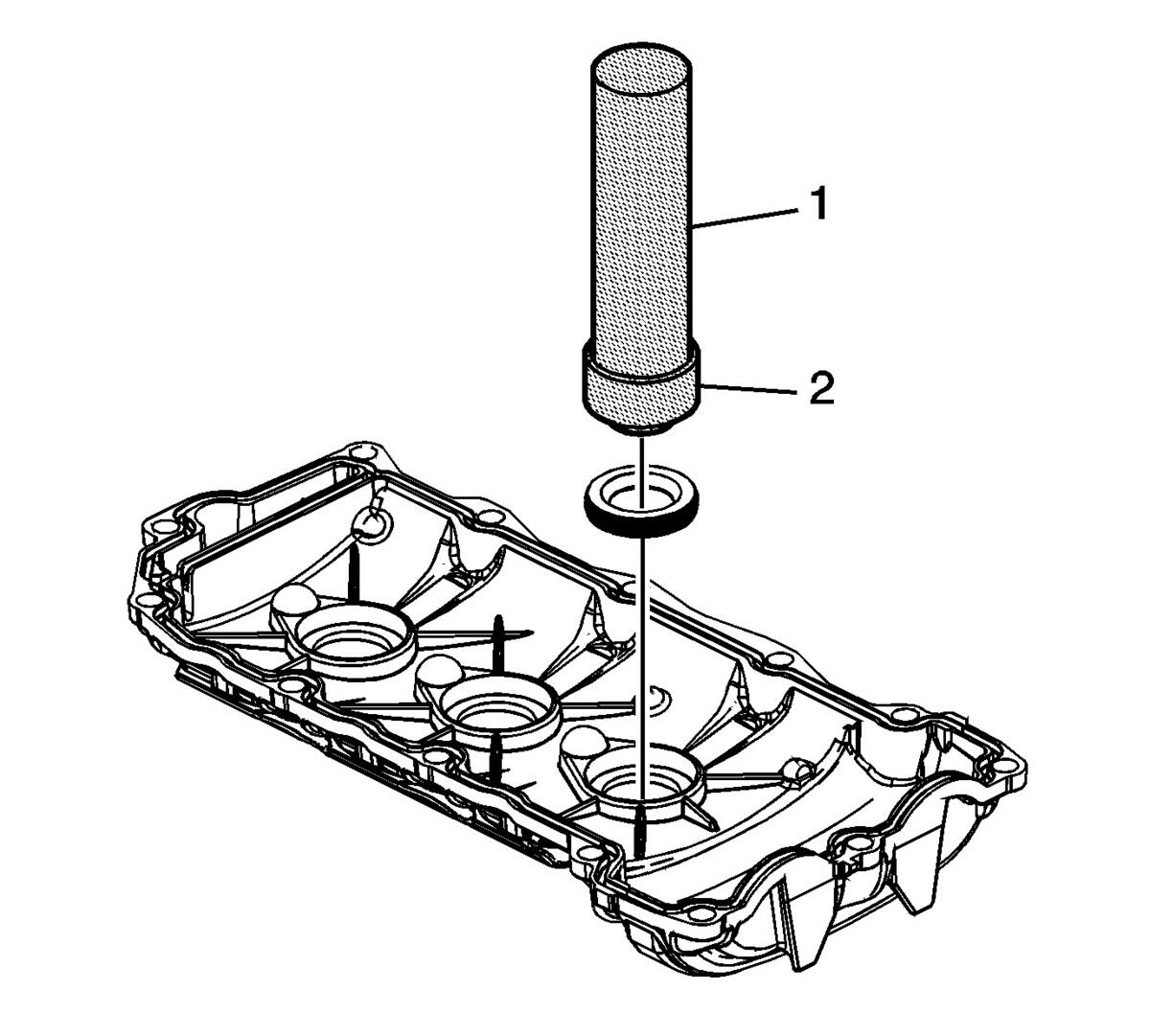

    Fig 1: Right Spark Plug Shield Tube Seals And Special Tools
    GM1836411Courtesy of GENERAL MOTORS COMPANY
  1. Install the NEW right spark plug shield tube coil seals using the DT 5590  driver (1) and J-25254-A  installer (2).
    2. Fig 2: Right Camshaft Cover Gasket
    GM1833744Courtesy of GENERAL MOTORS COMPANY
  2. Install the NEW right camshaft cover gasket.
    3. Fig 3: Right Camshaft Cover
    GM1836419Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The camshaft cover bolt grommet must be installed into the camshaft cover bolt hole before installing the camshaft cover bolt.

  3. Install the NEW right camshaft cover bolt grommets.
