Left Camshaft Cover

WARNING: This page is about a different variant/trim than selected.

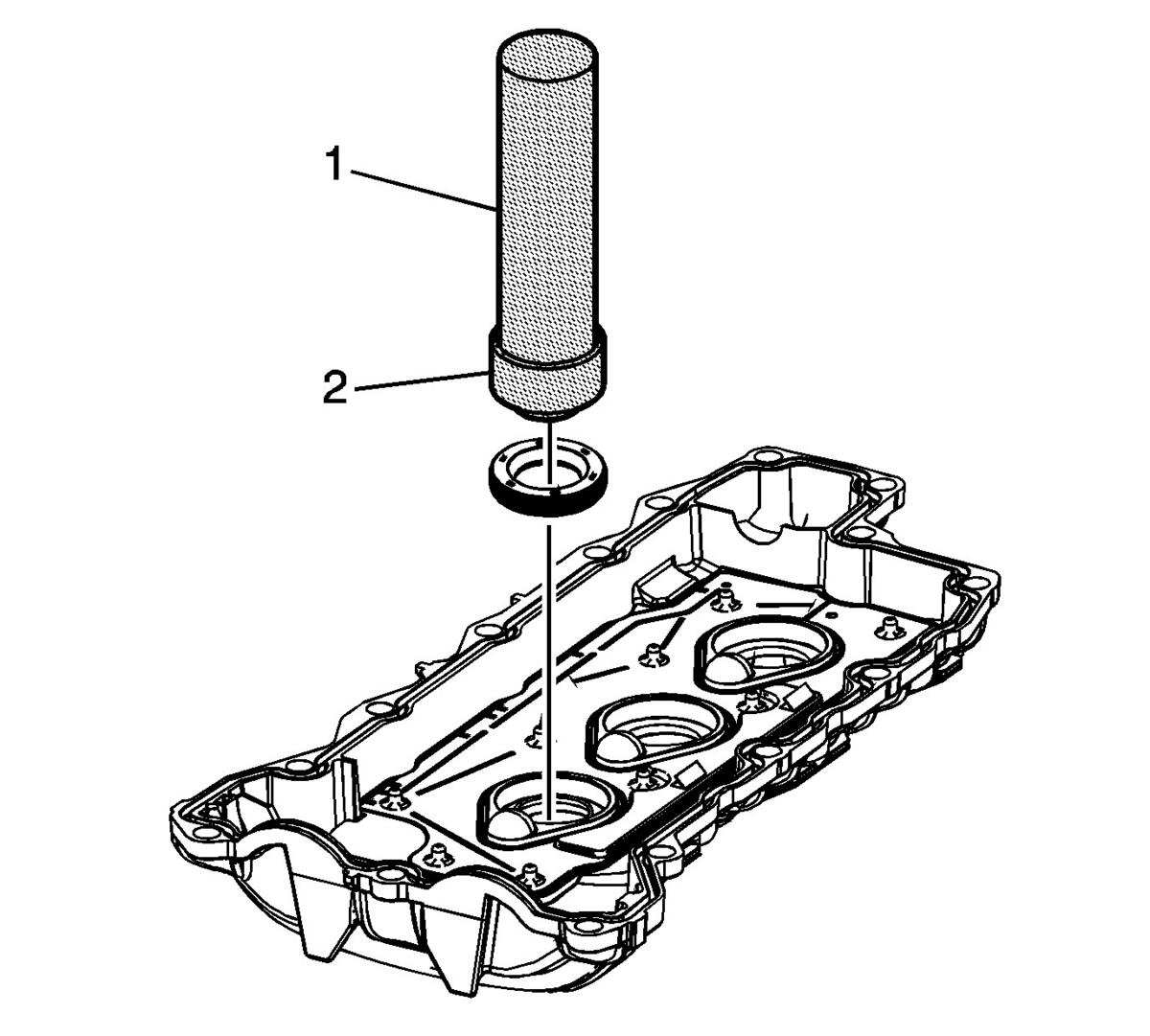

    Fig 1: Left Spark Plug Shield Tube Seals And Special Tools
    GM1992540Courtesy of GENERAL MOTORS COMPANY
  1. Install the NEW left spark plug shield tube seals using the DT 5590  driver (1) and J-25254-A  installer (2).

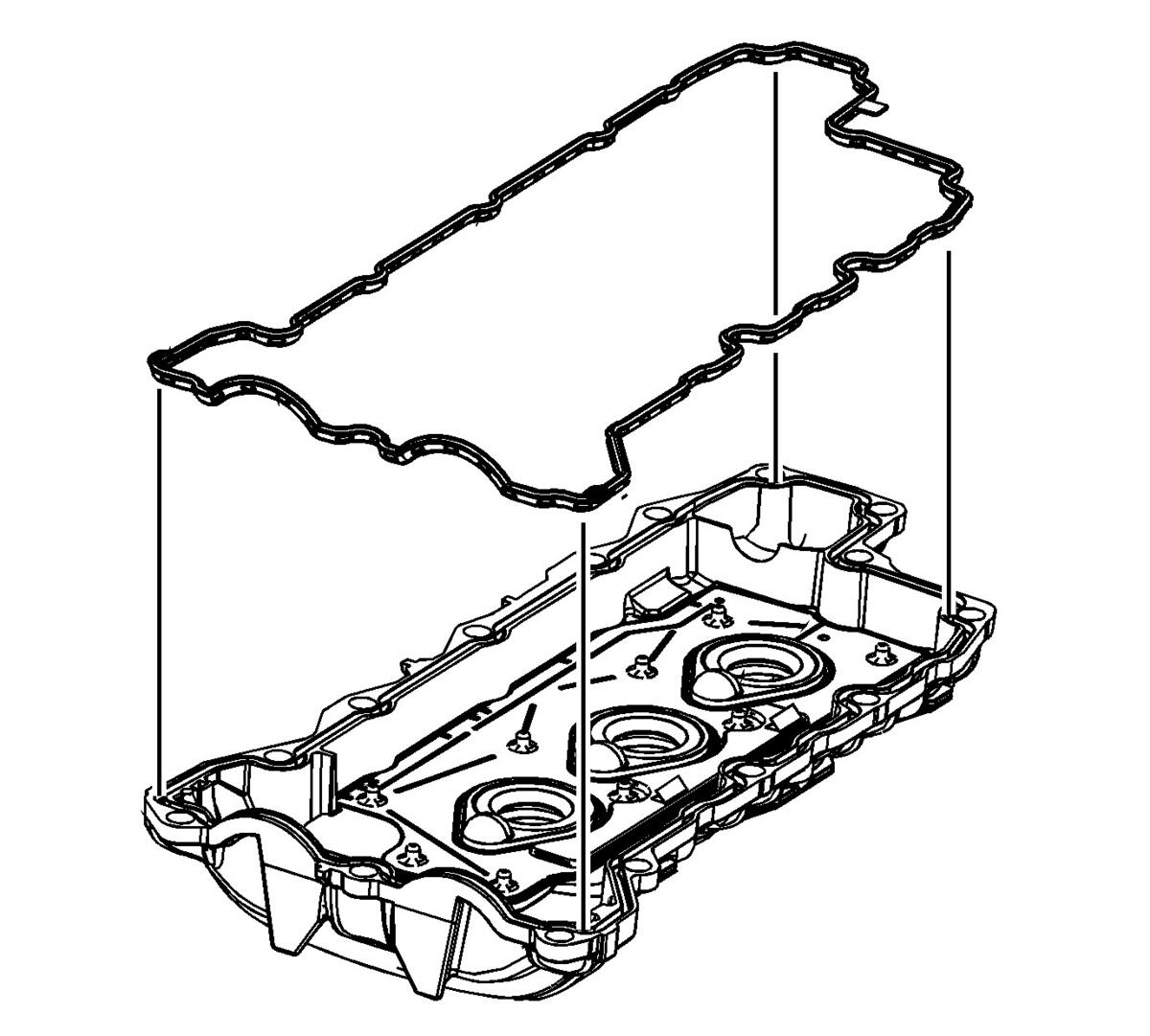

    2. Fig 2: Left Camshaft Cover Gasket
    GM1992532Courtesy of GENERAL MOTORS COMPANY
  2. Install the NEW left camshaft cover gasket.

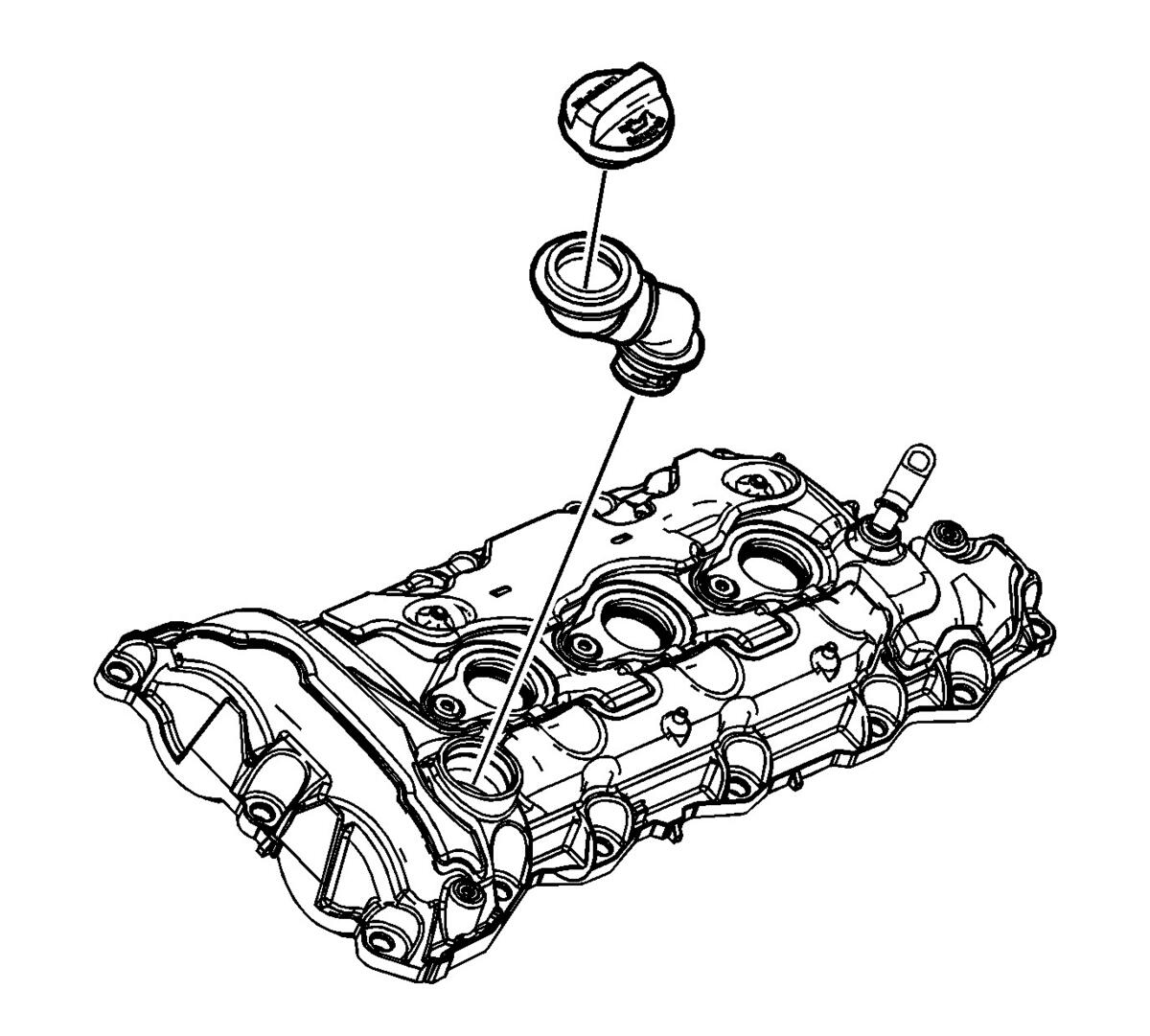

    3. Fig 3: Oil Fill Cap
    GM1992531Courtesy of GENERAL MOTORS COMPANY
  3. Install the oil fill cap.

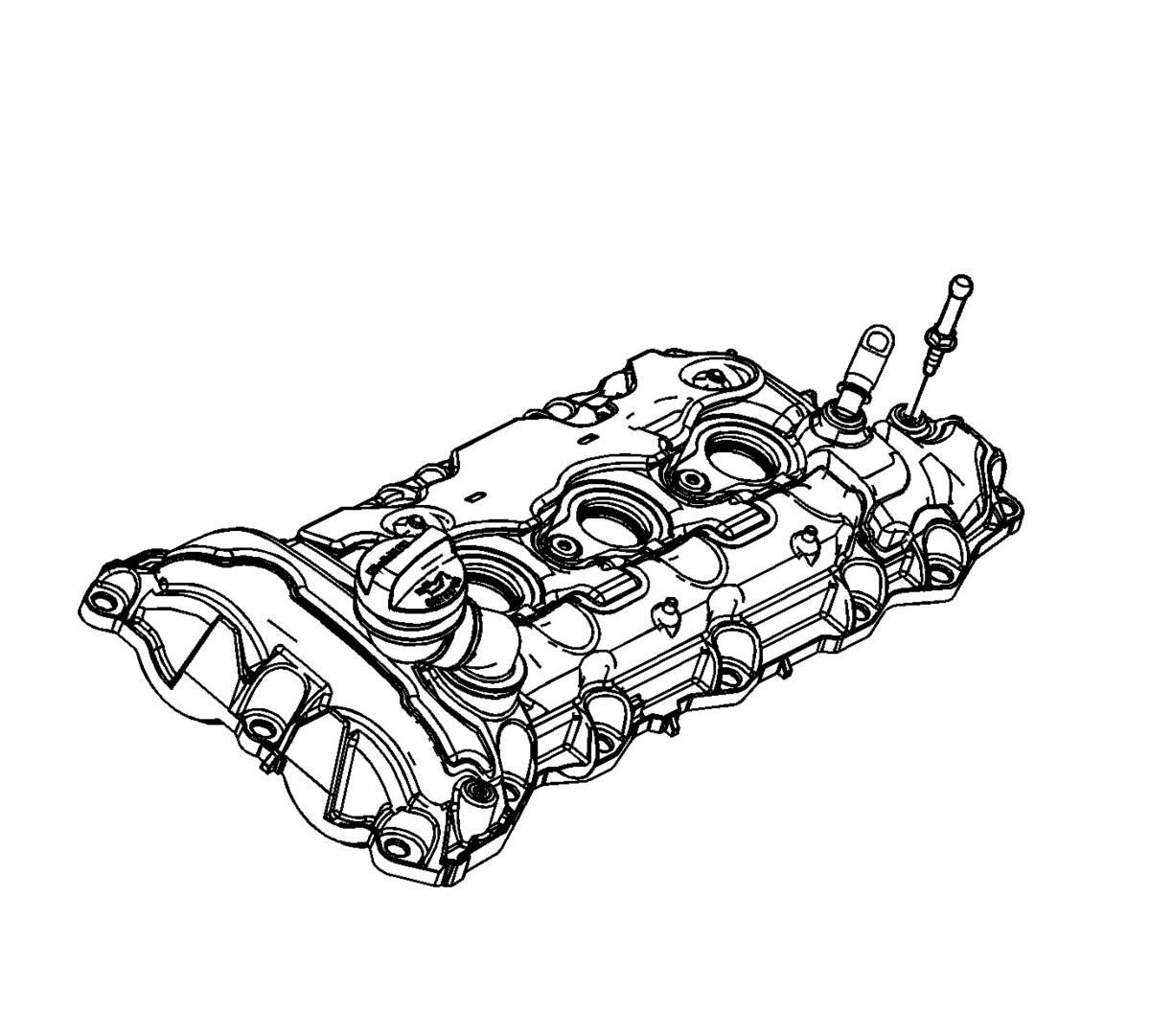

    4. Fig 4: Fuel Injector Sight Shield Ballstud
    GM1992528Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install the fuel injector sight shield cover ballstud and tighten to 10 N.m (89 lb in).

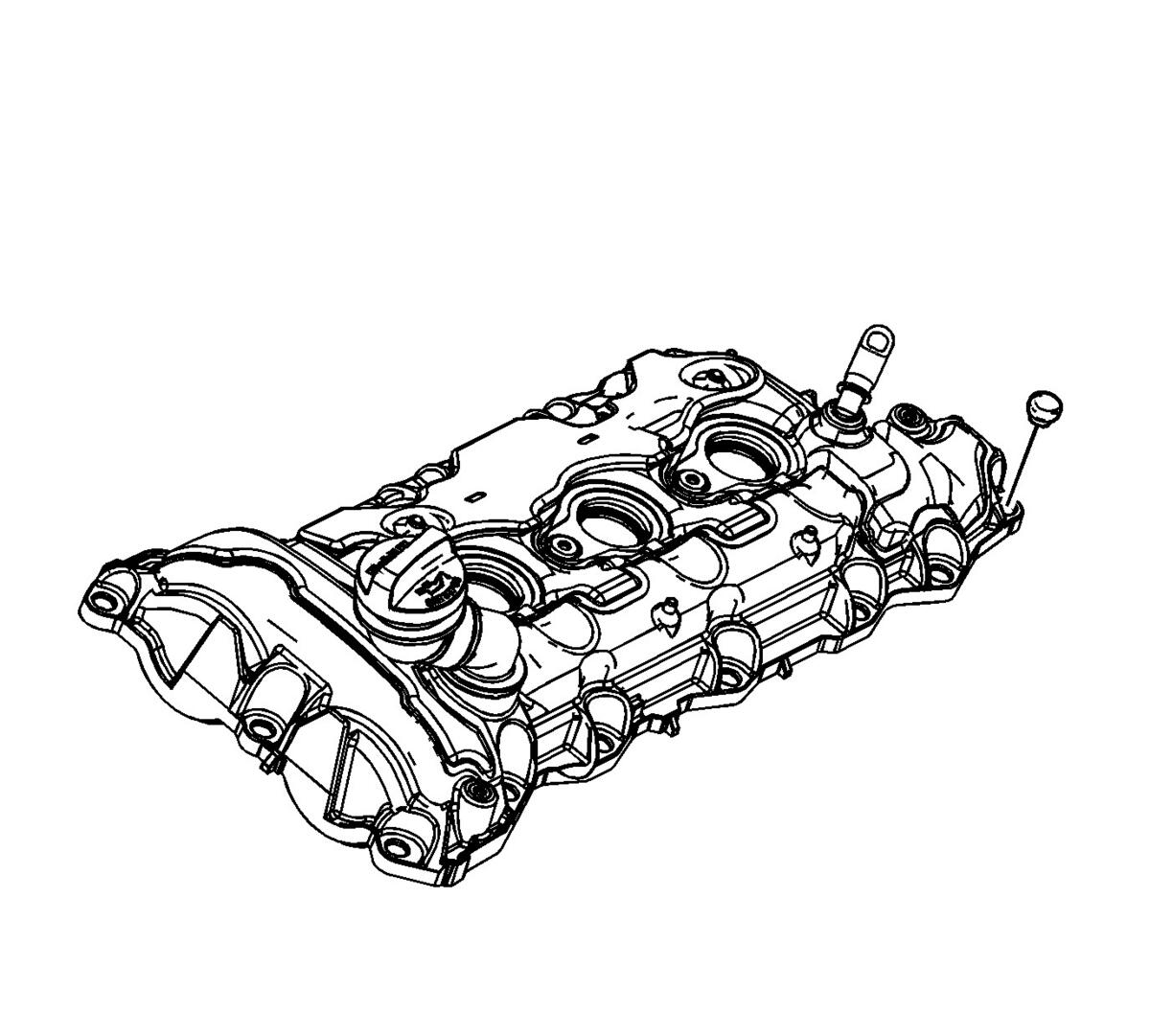

    5. Fig 5: Left Camshaft Cover Bolt Grommets
    GM1992526Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The camshaft cover bolt grommet must be installed into the camshaft cover bolt hole before installing the camshaft cover bolt.

  5. Install the NEW left camshaft cover bolt grommets.
