Ignition Controls - Ignition System Coils 2, 4, and 6

WARNING: This page is about a different variant/trim than selected.

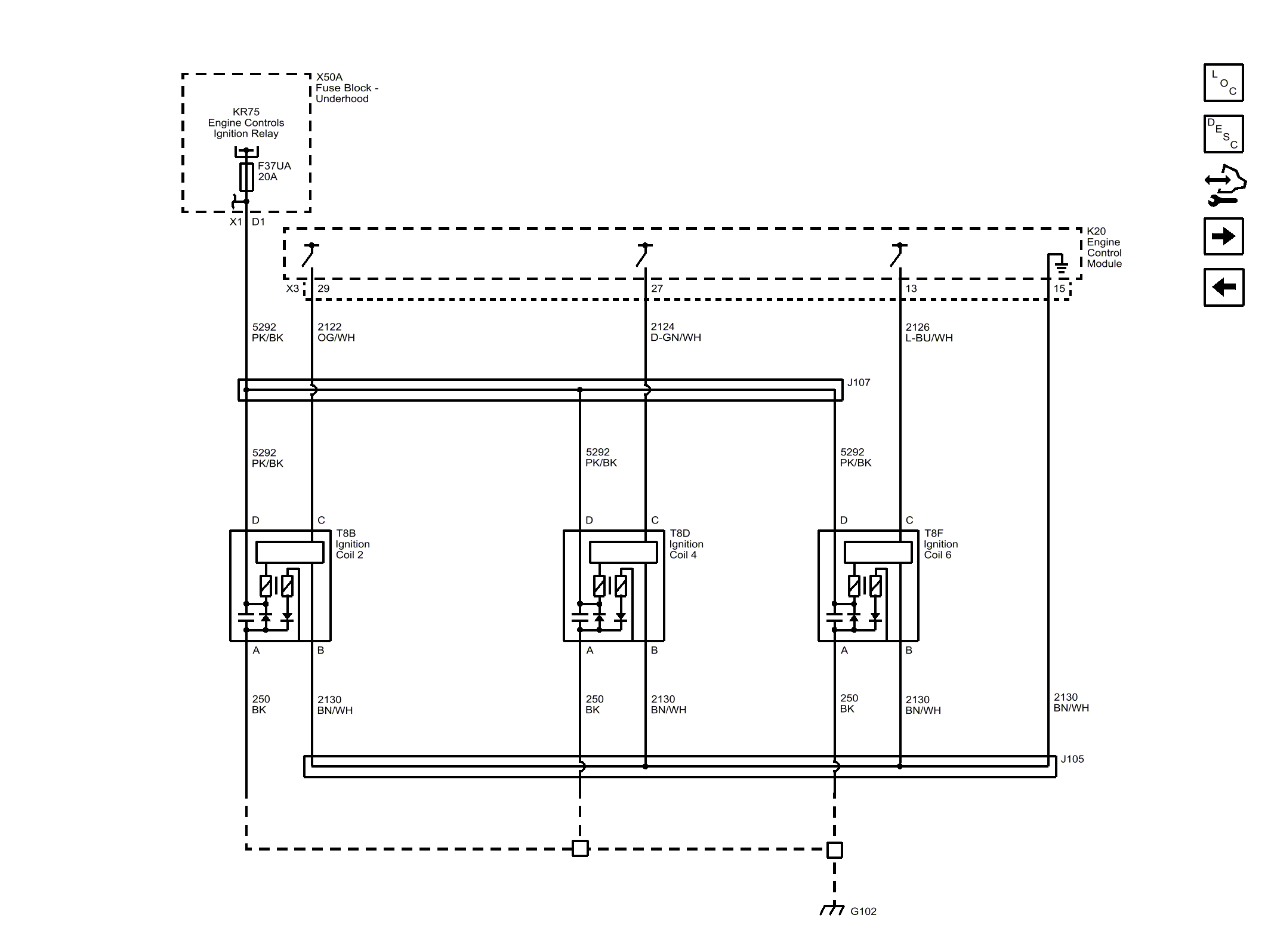

Fig 1: Ignition Controls - Ignition System Coils 2, 4, and 6
GM4069543Courtesy of GENERAL MOTORS COMPANY
