Ignition Controls - Ignition System Coils 1, 3, and 5

WARNING: This page is about a different variant/trim than selected.

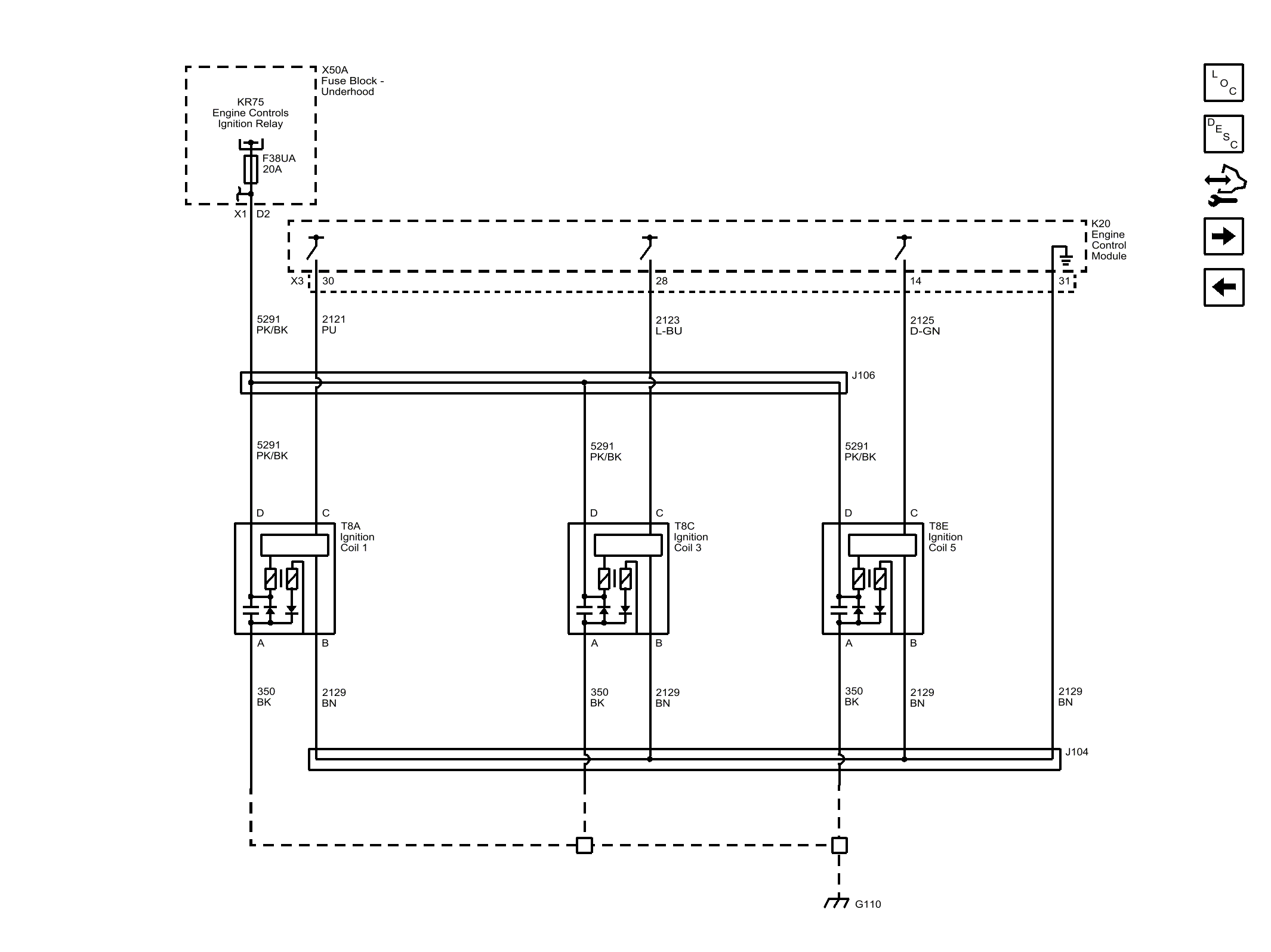

Fig 1: Ignition Controls - Ignition System Coils 1, 3, and 5
GM4069541Courtesy of GENERAL MOTORS COMPANY
