Section 16 (Engine Controls And Fuel - 3.6L (LFX) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Fuel Controls - Evaporative Emission Controls, Fuel Composition and Fuel Tank Pressure Sensors
Fuel Controls - Evaporative Emission Controls, Fuel Composition and Fuel Tank Pressure Sensors
WARNING:
This page is about a different variant/trim than selected.

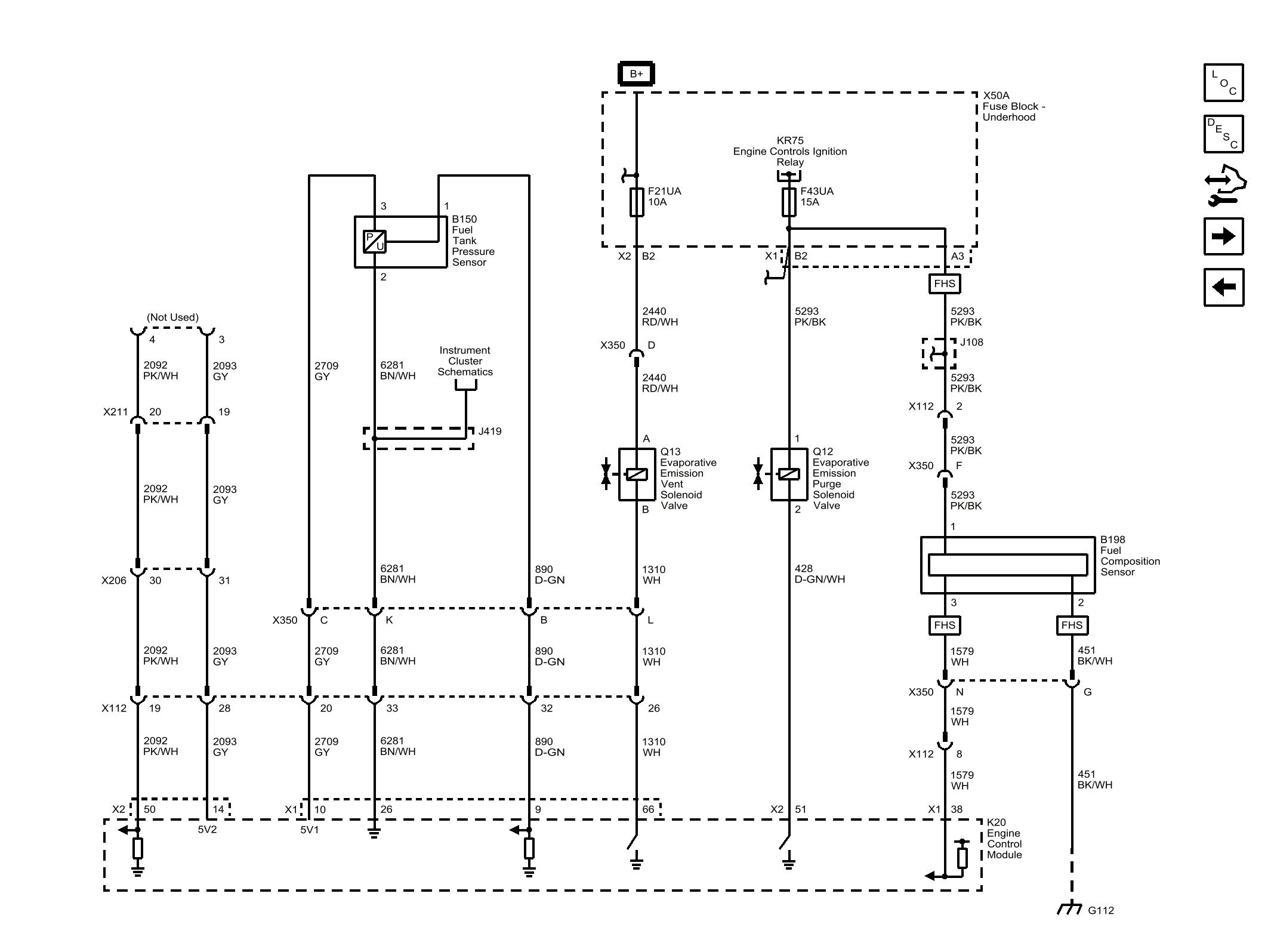

Fig 1: Fuel Controls - Evaporative Emission Controls, Fuel Composition and Fuel Tank Pressure Sensors
Courtesy of GENERAL MOTORS COMPANY
