Section 16 (Engine Controls And Fuel - 3.6L (LFX) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Engine Data Sensors - Pressure, Temperature
Engine Data Sensors - Pressure, Temperature
WARNING:
This page is about a different variant/trim than selected.

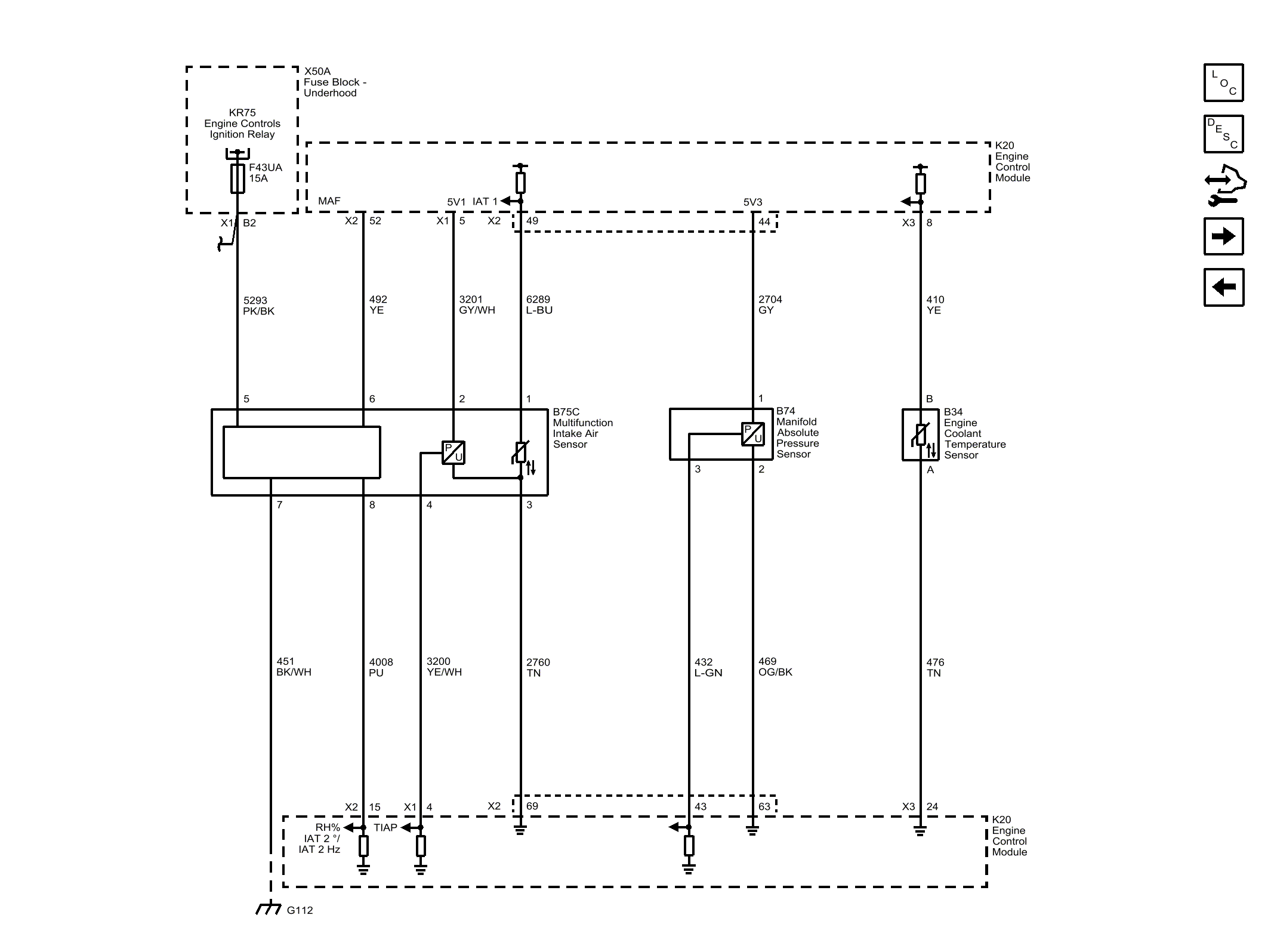

Fig 1: Engine Data Sensors - Pressure, Temperature
Courtesy of GENERAL MOTORS COMPANY
