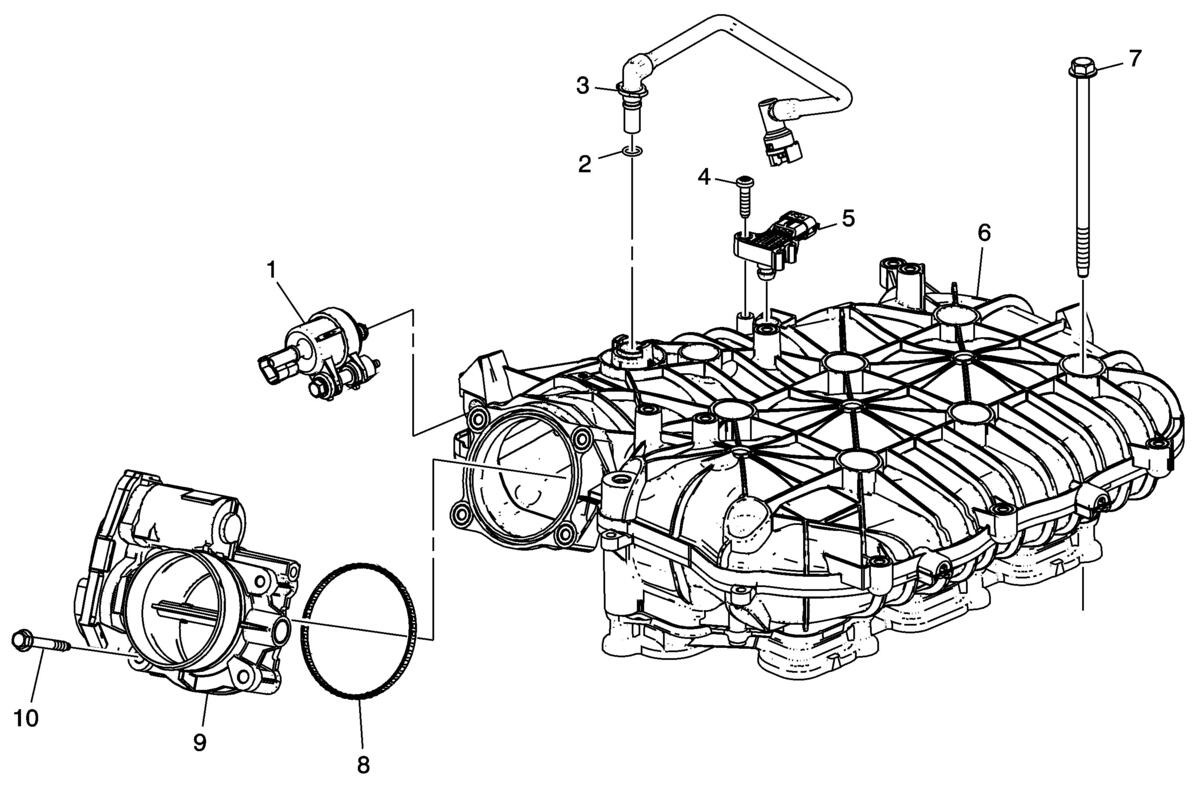

Intake Manifold
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
EVAP Solenoid |
| 2 |
PCV Tube O-ring Seal |
| 3 |
PCV Tube |
| 4 |
MAP Sensor Bolt |
| 5 |
MAP Sensor |
| 6 |
Upper Intake Manifold |
| 7 |
Upper Intake Manifold Bolt |
| 8 |
Throttle Body Gasket |
| 9 |
Throttle Body |
| 10 |
Throttle Body Bolt |
