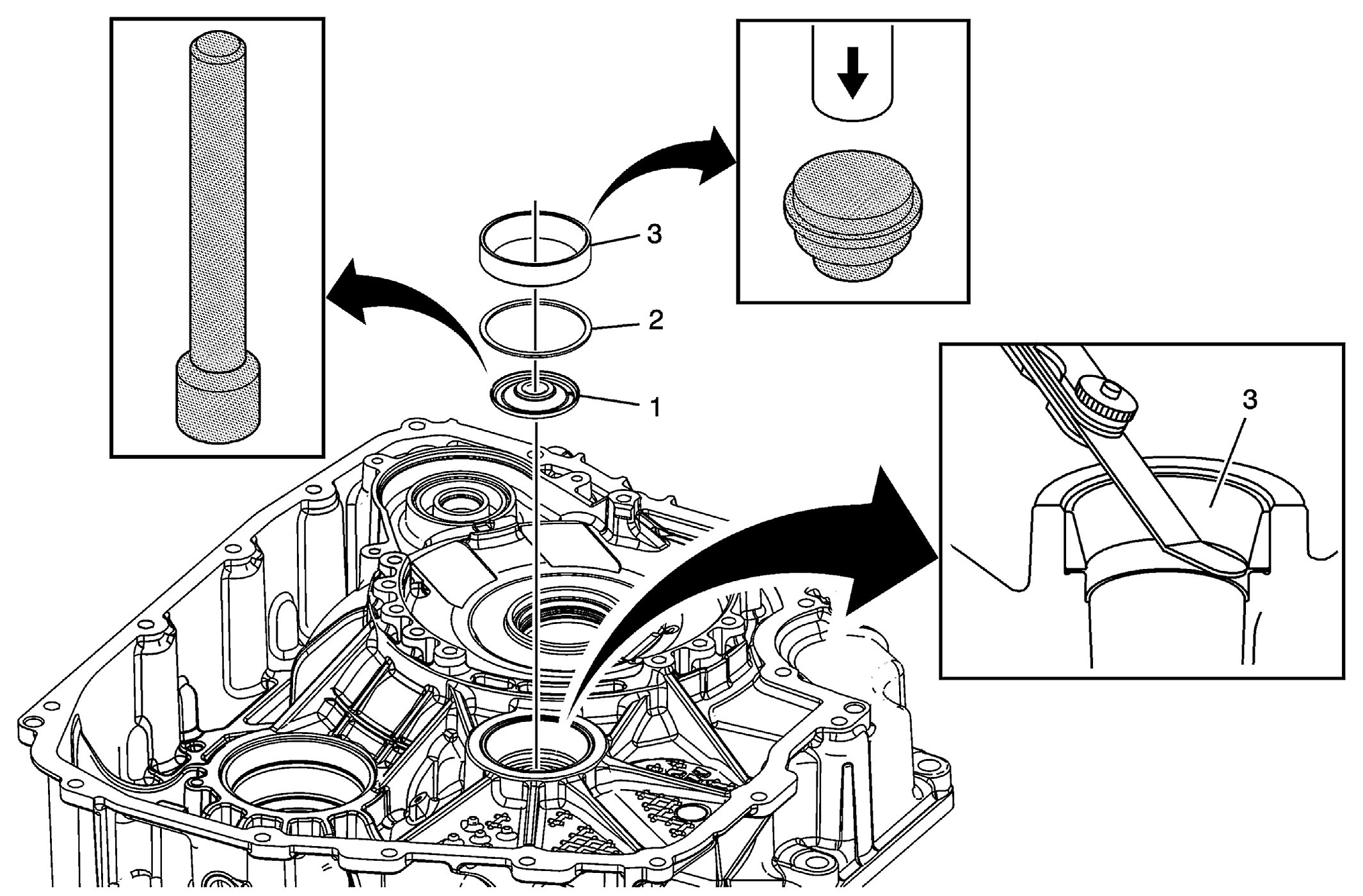

Bearing Cup, Washer and Lubricant Dam Installation
| Callout | Component Name |
|---|---|
| Preliminary Procedure Do not install the bearing cup until after the selective washer measurement has been performed. |
|
| 1 | Front Differential Drive Pinion Gear Lube Dam Special Tools
For equivalent regional tools, refer to Special Tools . |
| 2 | Front Differential Drive Pinion Gear Bearing Thrust Washer
NOTE:
Install the correct drive pinion gear bearing thrust washer as determined by the thrust washer measurement procedure. Refer to Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement . |
| 3 | Front Differential Drive Pinion Gear Bearing Cup
CAUTION:
Support the back side of the torque converter housing before installing the bearing cup. Apply a light coating of transmission fluid to the bore before pressing the cup into position. Install the bearing cup until it stops moving. Applying excessive pressure to the bearing cup once it is seated could cause damage to the torque converter housing casting.
CAUTION:
An unseated or improperly installed bearing cup will result in premature bearing failure. Visually inspect the bearing cup to insure there is "no gap" between the converter housing, thrust washer, and the bearing cup. Use of a feeler gauge may assist in identifying a bearing cup that is not fully seated. Special Tools DT-45087 Bearing Cup Installer For equivalent regional tools, refer to Special Tools . |
