Engine Coolant Air Bleed Pipe Replacement (LFX)

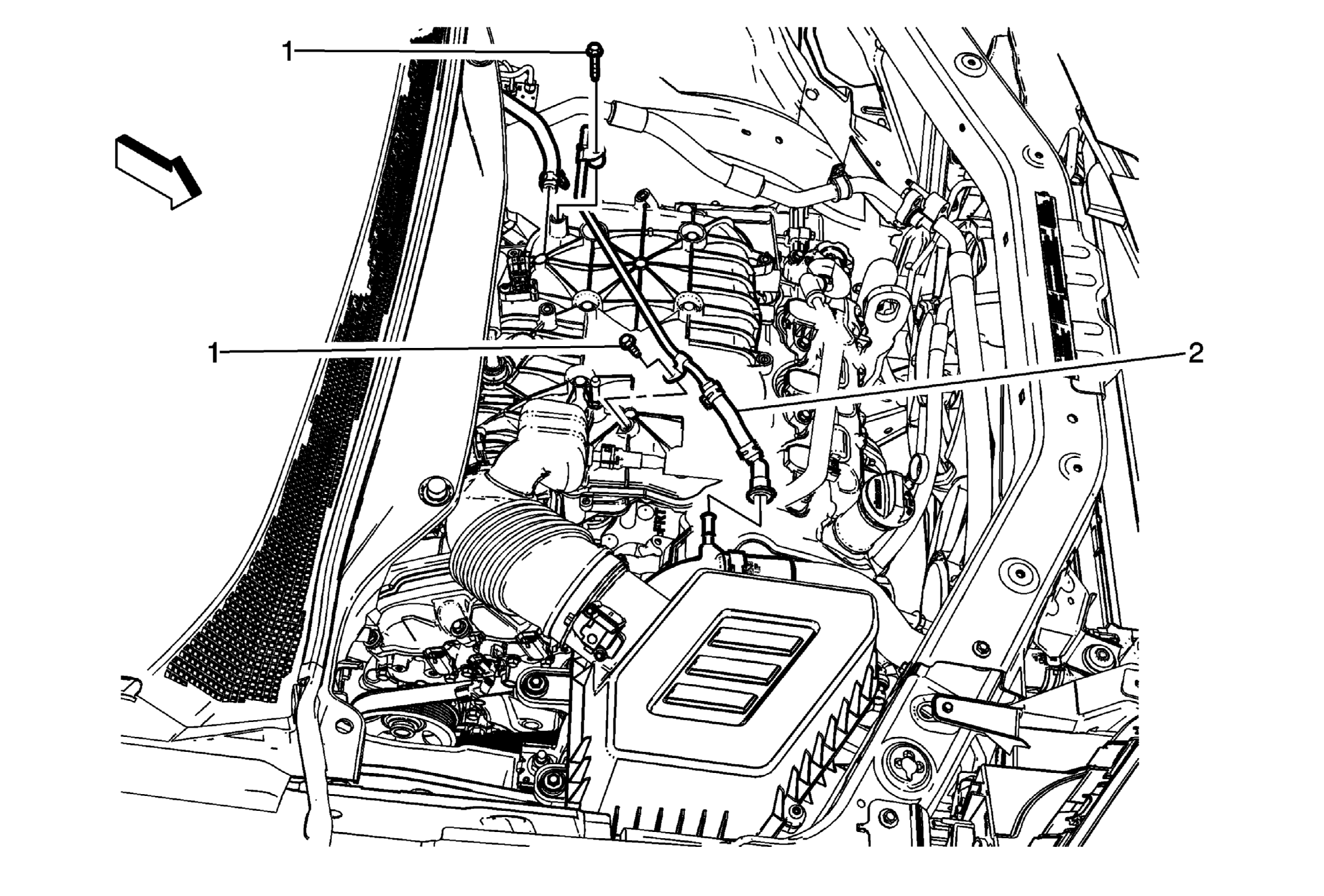

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . |
|
| 1 | Engine Coolant Air Bleed Pipe Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten: 9 N.m (80 lb in) |
| 2 | Engine Coolant Air Bleed Pipe |
