Rear of Vehicle Harness Routing (Chevrolet)

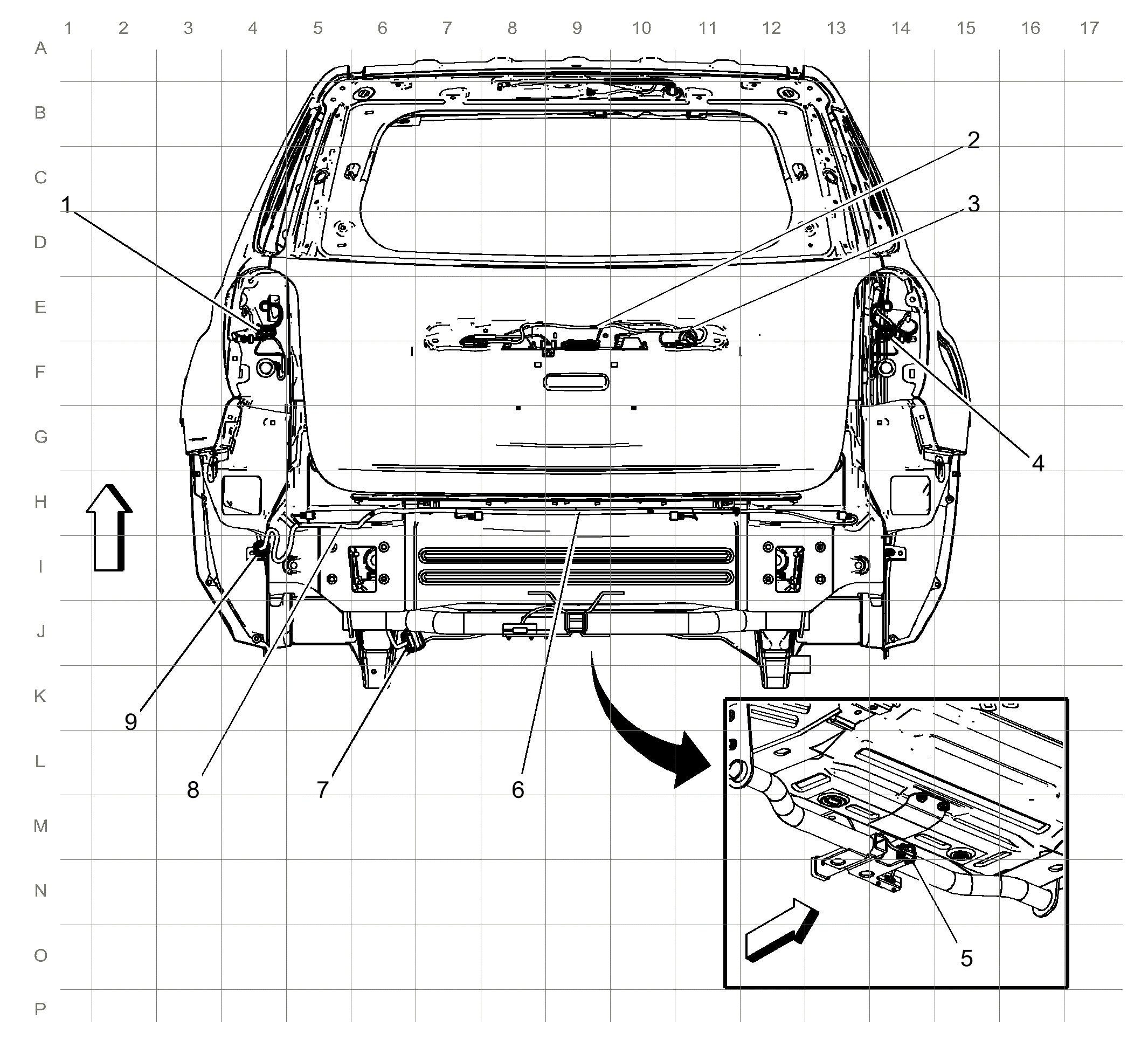

Fig 1: Rear of Vehicle Harness Routing (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Items
1: X407 X407 Body Harness to Left Tail Lamp Harness
2: J902
3: J901
4: X408 X408 Body Harness to Right Tail Lamp Harness
5: X450 (V92) X450 Trailer Pigtail Harness to Trailer Jumper Harness
6: J404 (UD7)
7: X411 X411 Body Harness to Chassis Harness
8: J405 (UD7)
9: X406 (UFT) X406 Body Harness to Rear Bumper Harness
