Passenger Door Harness Routing

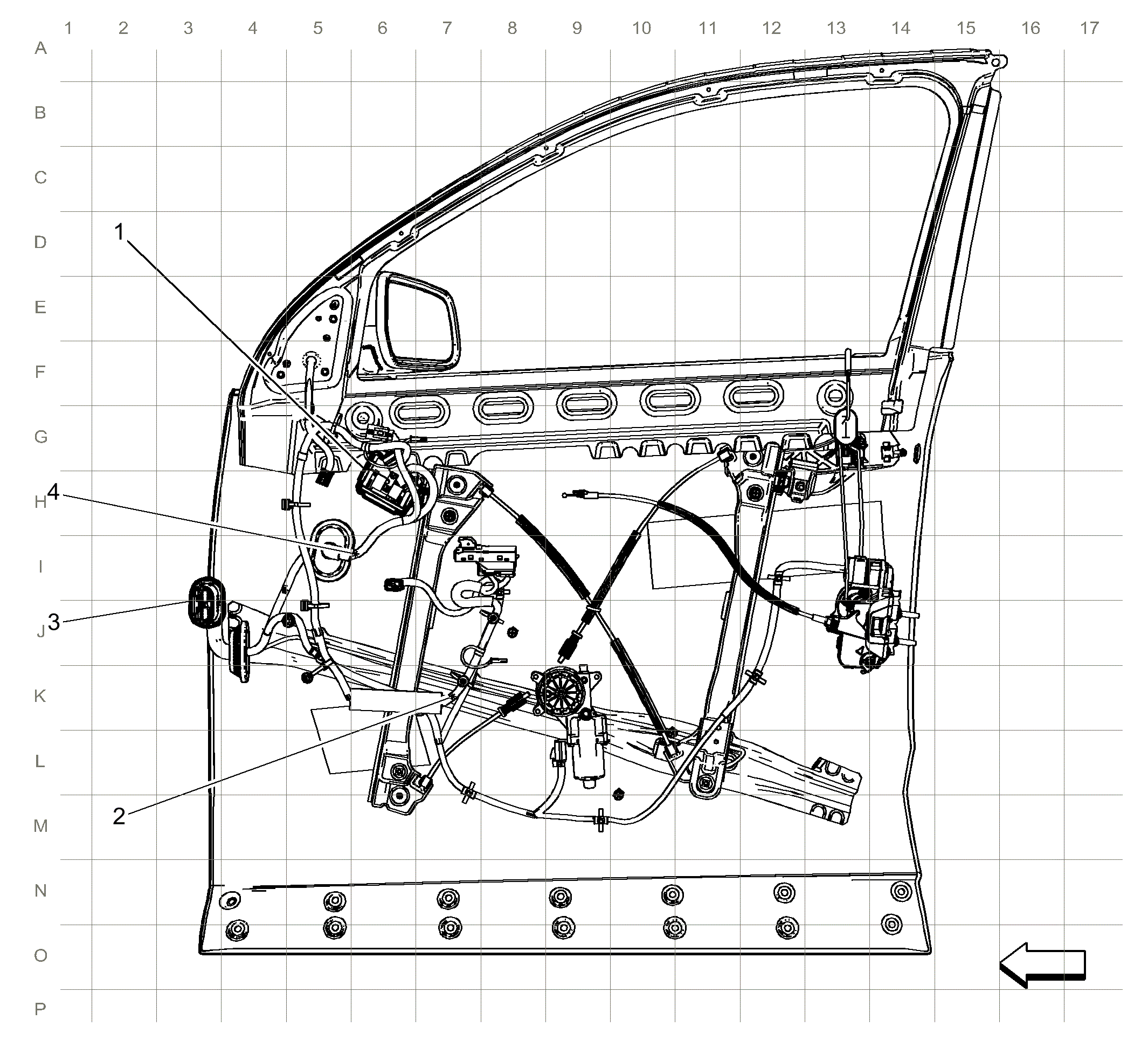

Fig 1: Passenger Door Harness Routing
GM2910344Courtesy of GENERAL MOTORS COMPANY
Items
1: X605 X605 Passenger Door Harness to Passenger Door Trim Harness
2: J602 (LTZ or SLT)
3: X600 X600 Body Harness to Passenger Door Harness
4: J601
