Liftgate Harness Routing

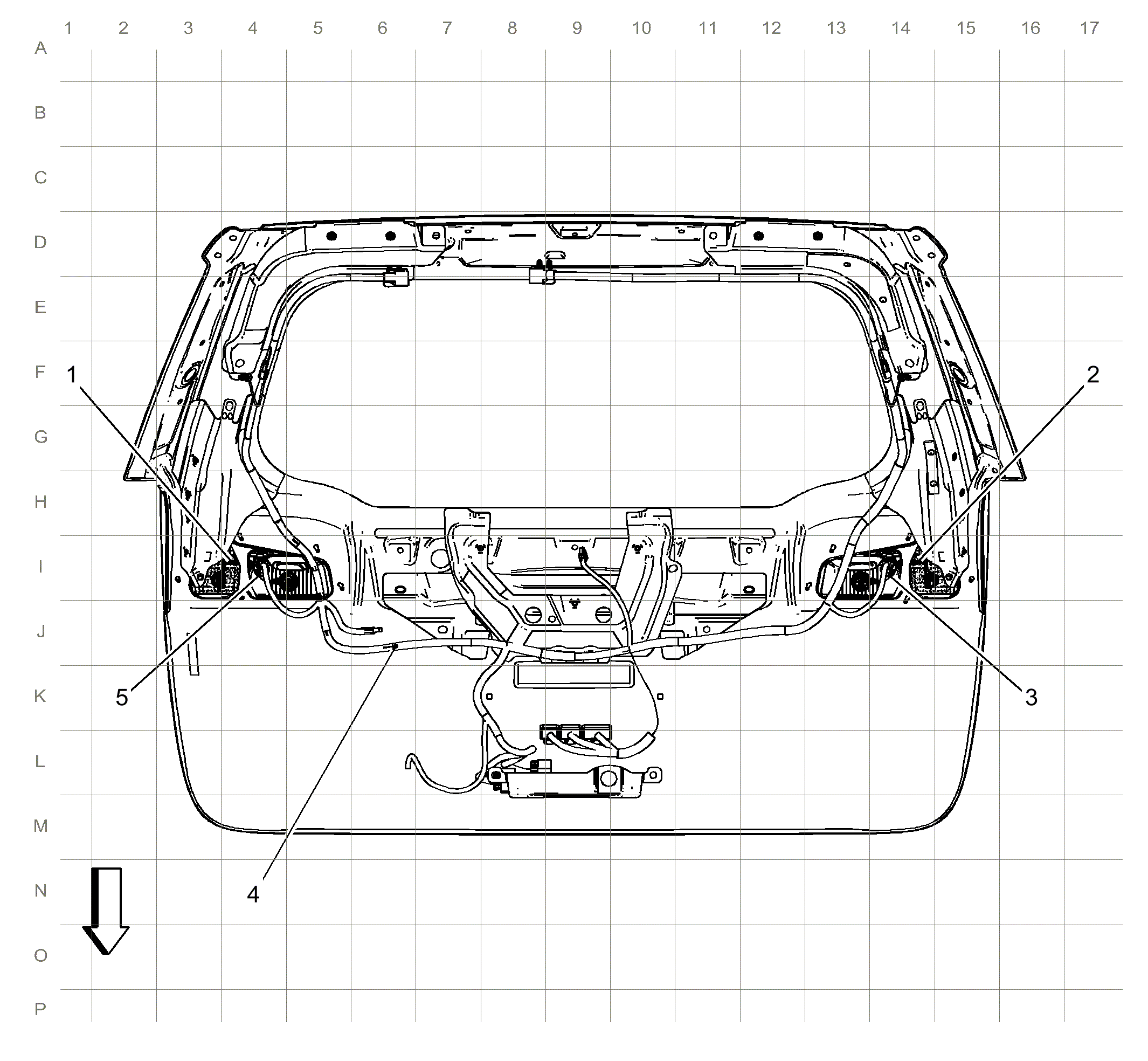

Fig 1: Liftgate Harness Routing
GM2910352Courtesy of GENERAL MOTORS COMPANY
Items
1: J407 (Chevrolet)
2: J406 (Chevrolet)
3: X902 (GMC) X902 Liftgate Harness to Left Rear Lamp Harness
4: J903 (GMC)
5: X903 (GMC) X903 Liftgate Harness to Right Rear Lamp Harness
