Instrument Panel Harness Routing - Rear

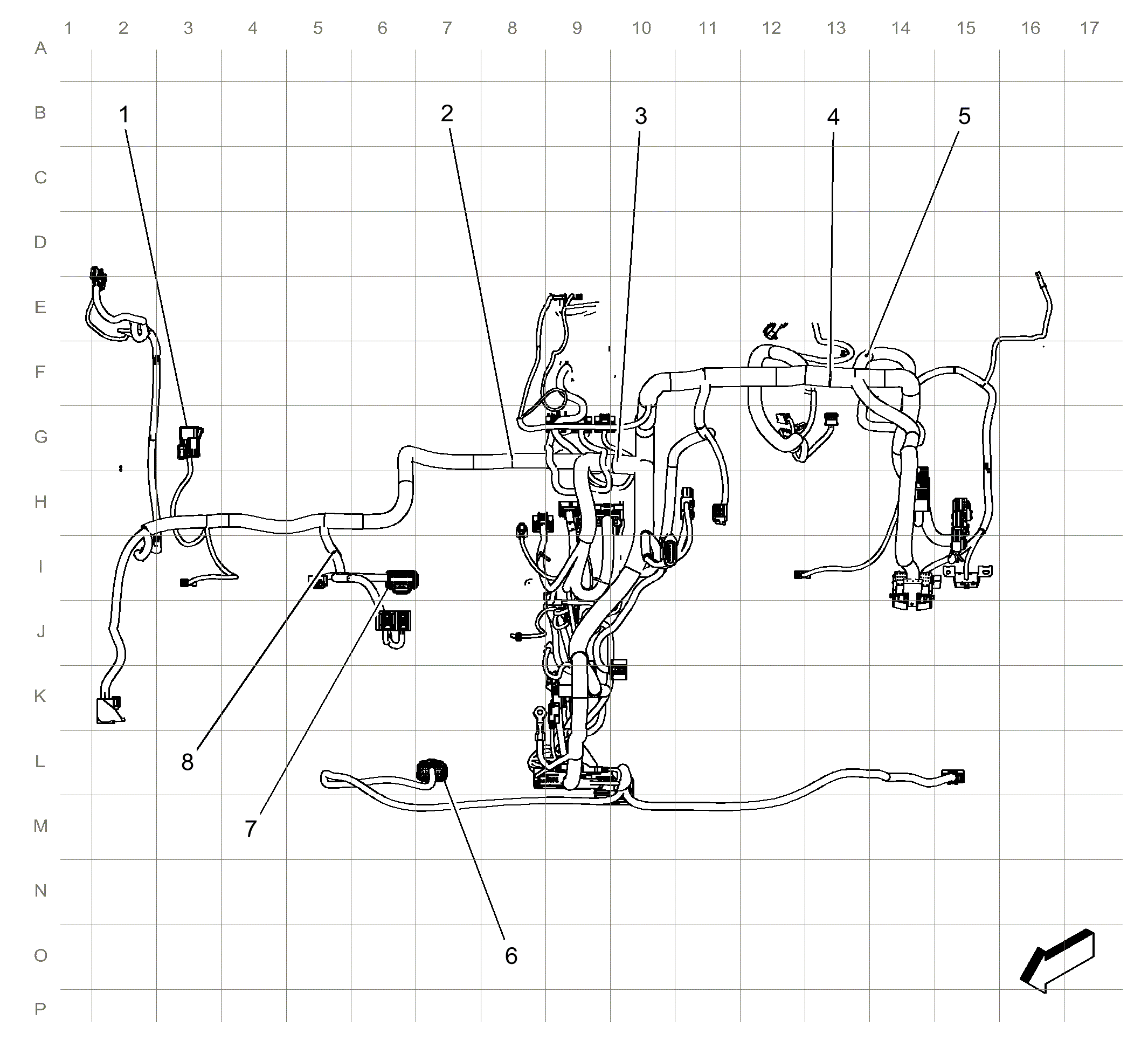

Fig 1: Instrument Panel Harness Routing - Rear
GM2910338Courtesy of GENERAL MOTORS COMPANY
Items
1: X203 X203 Instrument Panel Extension Harness to Instrument Panel Harness
2: J203
3: J206
4: J201 (LTZ or SLT)
5: J205
6: X309 (UWG) X309 Passenger Seat Back Harness to Instrument Panel Harness
7: X213 X213 Instrument Panel Harness to HVAC Harness
8: J202 (C68)
