Instrument Panel Harness Routing - Front

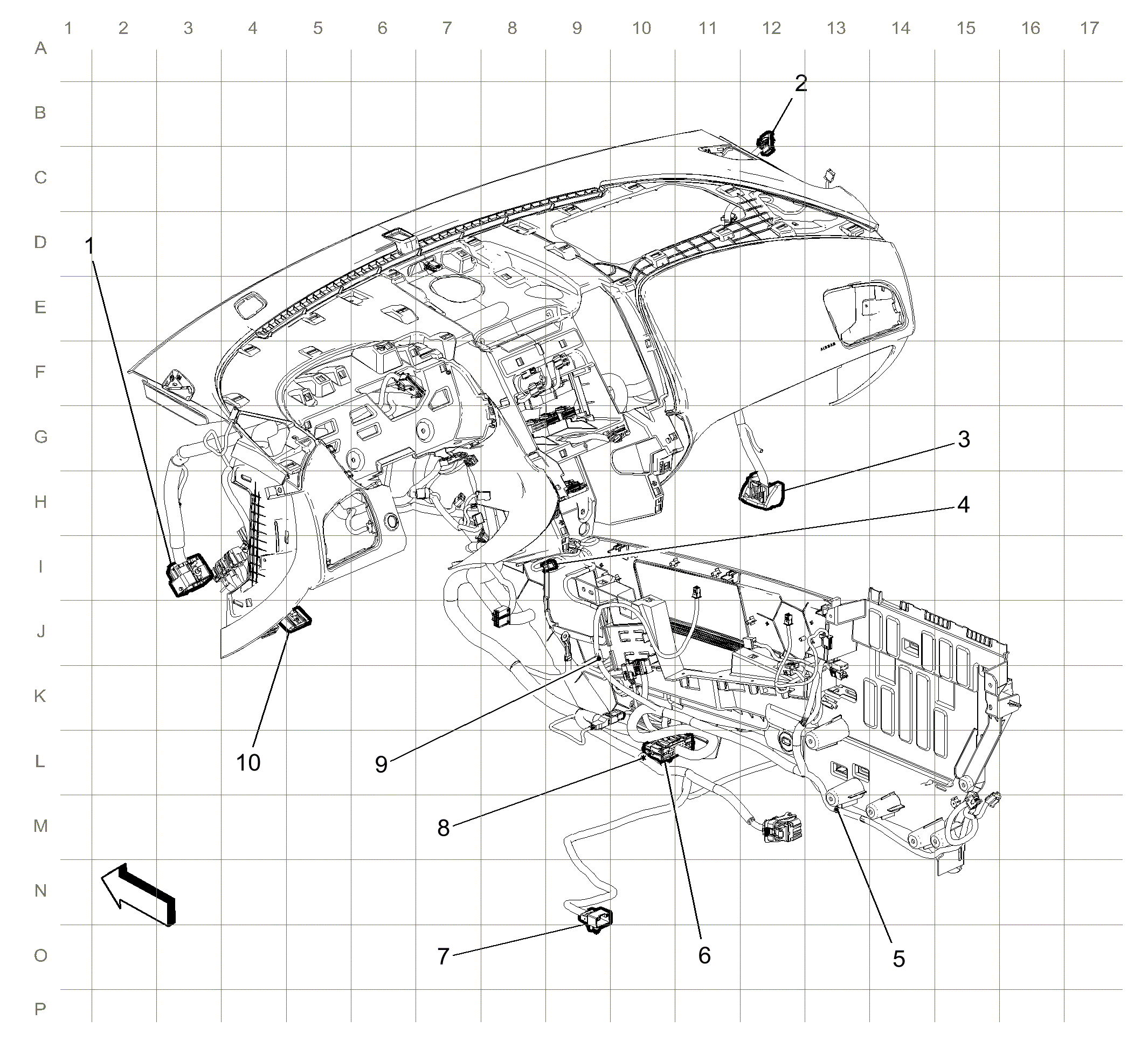

Fig 1: Instrument Panel Harness Routing - Front

Courtesy of GENERAL MOTORS COMPANY

Items
1: X206 X206 Body Harness to Instrument Panel Harness
2: X209 X209 Instrument Panel Harness to Headliner Harness
3: X210 X210 Instrument Panel Harness to Body Harness
4: X214 X214 Floor Console Harness to Seat Heating Power Extension Harness
5: J317
6: X211 X211 Floor Console Harness to Instrument Panel Harness
7: X307 (UWG) X307 Driver Seat Back Harness to Instrument Panel Harness
8: J204 (UWG)
9: J318
