Wiring Systems And Power Management - Schematic Wiring Diagrams And Wiring Harness Routing Diagrams
>>
Wiring Harness Routing Diagrams And Schematic Wiring Diagrams
>>
Wiring Harness Routing Views
>>
Engine Harness Routing - Left Front (LFX)
Engine Harness Routing - Left Front (LFX)

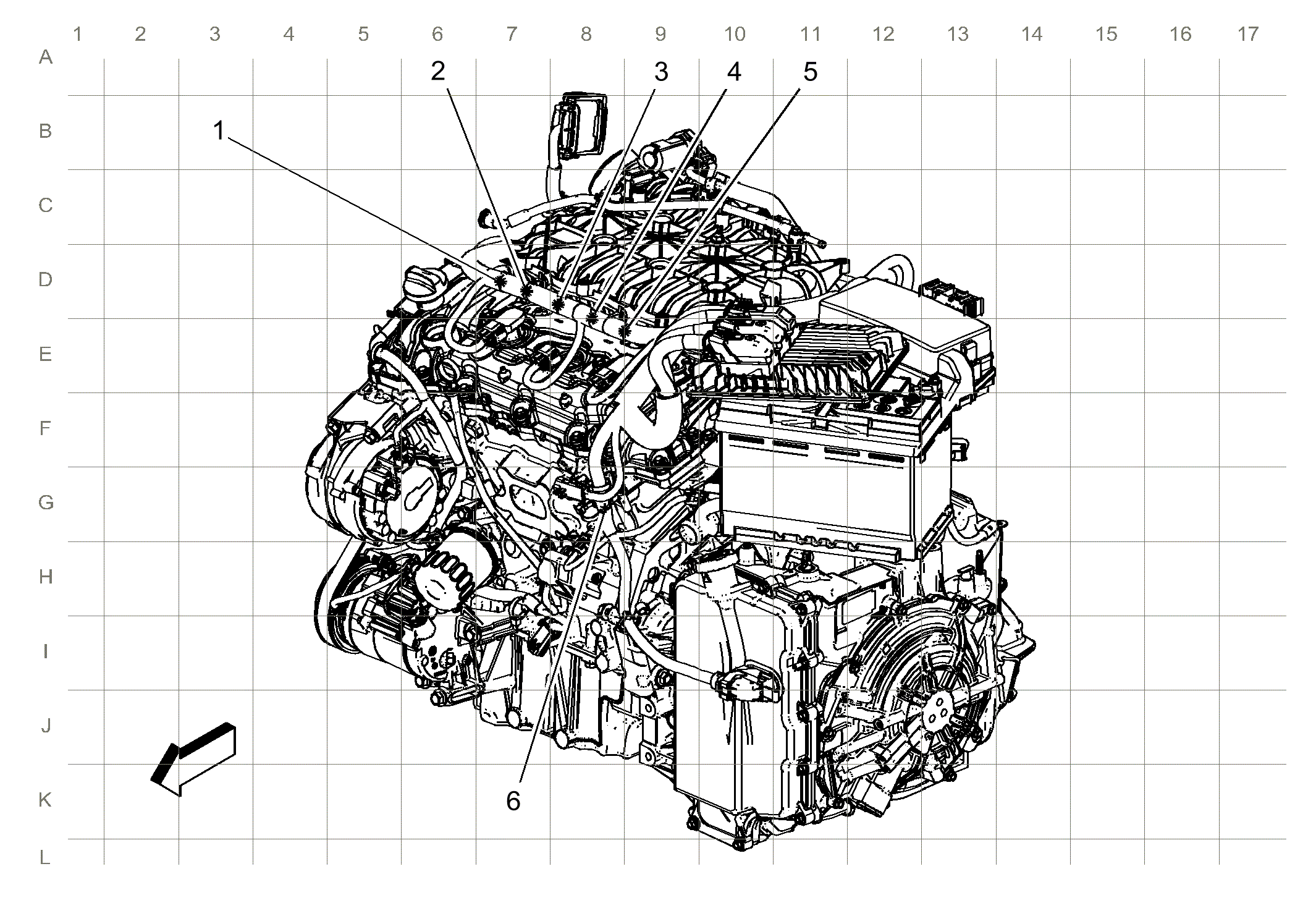

Fig 1: Engine Harness Routing - Left Front (LFX)
Courtesy of GENERAL MOTORS COMPANY
Items
1: J101
2: J109 (LFX)
3: J108
4: J105 (LFX)
5: J107
6: J103
Courtesy of GENERAL MOTORS COMPANY
