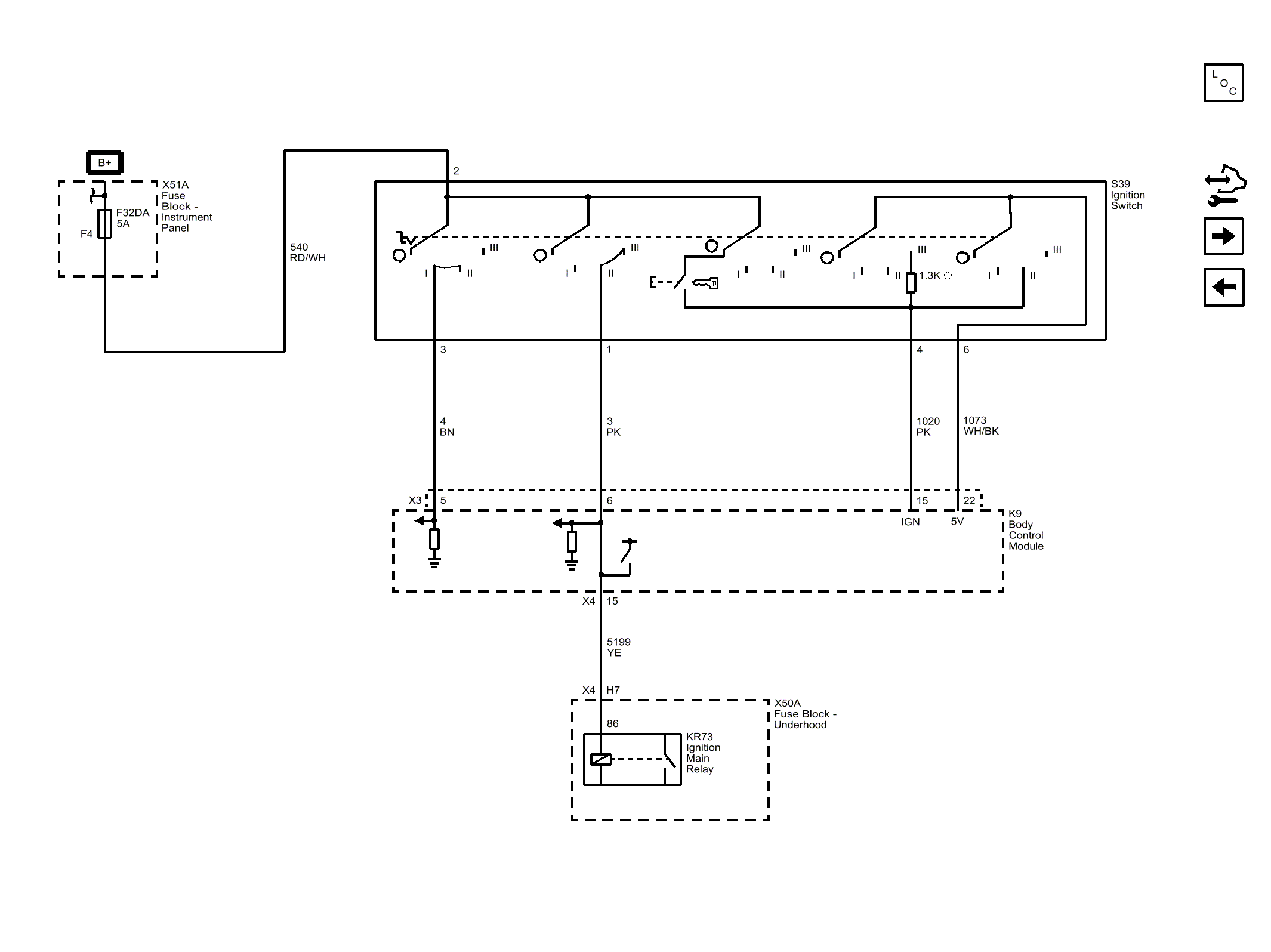

| 540 |
Battery Positive Voltage |
| 540 RD/WH |
540 RD/WH |
| CAV 2 |
2 |
| 4 |
Accessory Voltage |
| 4 BN |
4 BN |
| CAV 5 |
5 |
| CONN X3 |
X3 |
| CAV 3 |
3 |
| 3 |
Run/Crank Ignition 1 Voltage |
| 3 PK |
3 PK |
| CAV 6 |
6 |
| CAV 1 |
1 |
| 1020 |
Off/Run/Crank Voltage |
| 1020 PK |
1020 PK |
| CAV 15 |
15 |
| 1073 |
Ignition Key Resistor Signal |
| 1073 WH/BK |
1073 WH/BK |
| CAV 22 |
22 |
| CAV 6 |
6 |
| CAV 4 |
4 |
| 5199 |
Run/Crank Relay Coil Control |
| 5199 YE |
5199 YE |
| CAV H7 |
H7 |
| CONN X4 |
X4 |
| CAV 15 |
15 |
| CONN X4 |
X4 |
| CAV 86 |
86 |
| CAV F4 |
F4 |
| F32DA |
F32DA 5A |
| S39 |
S39 Ignition Switch |
| X51A |
X51A Fuse Block - Instrument Panel |
| K9 |
K9 Body Control Module |
| KR73 |
KR73 Ignition Main Relay |
| X50A |
X50A Fuse Block - Underhood |
