B+ Bus (3 of 3)

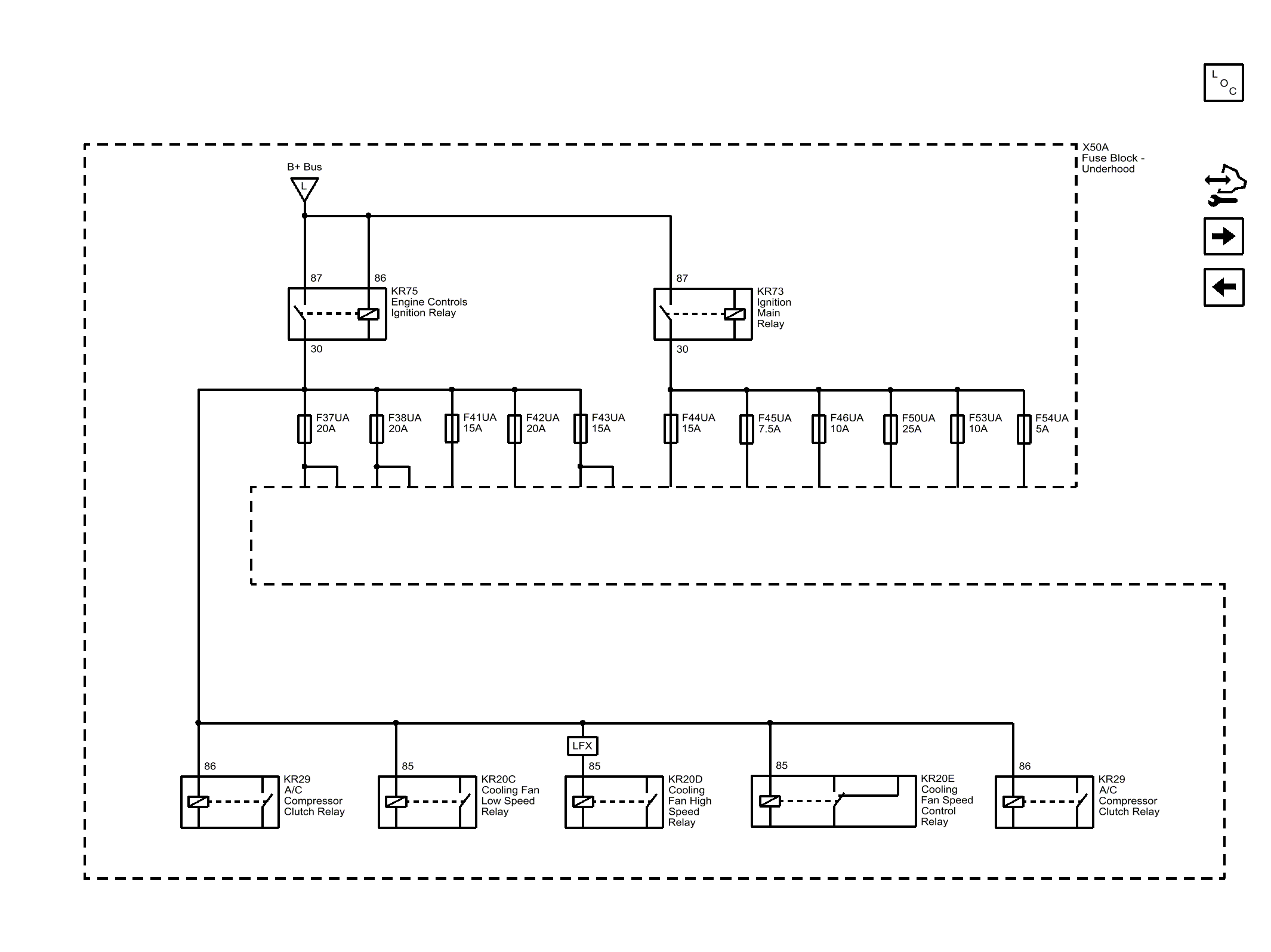

Fig 1: B+ Bus (3 of 3)
GM4069752Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
CAV 86 86
CAV 85 85
CAV 85 85
CAV 85 85
CAV 86 86
CAV 87 87
CAV 86 86
CAV 30 30
CAV 87 87
CAV 30 30
LFX ENGINE-GAS, 6 CYL, 3.6L, SIDI, DOHC, VVT, E85 MAX, ALUM, GM
L REF L
F37UA F37UA 20A
F38UA F38UA 20A
F41UA F41UA 15A
F42UA F42UA 20A
F43UA F43UA 15A
F44UA F44UA 15A
F45UA F45UA 7.5A
F46UA F46UA 10A
F50UA F50UA 25A
F53UA F53UA 10A
F54UA F54UA 5A
KR73 KR73 Ignition Main Relay
X50A X50A Fuse Block - Underhood
KR29 KR29 A/C Compressor Clutch Relay
KR29 KR29 A/C Compressor Clutch Relay
KR20C KR20C Cooling Fan Low Speed Relay
KR20D KR20D Cooling Fan High Speed Relay
KR20E KR20E Cooling Fan Speed Control Relay
KR75 KR75 Engine Controls Ignition Relay
