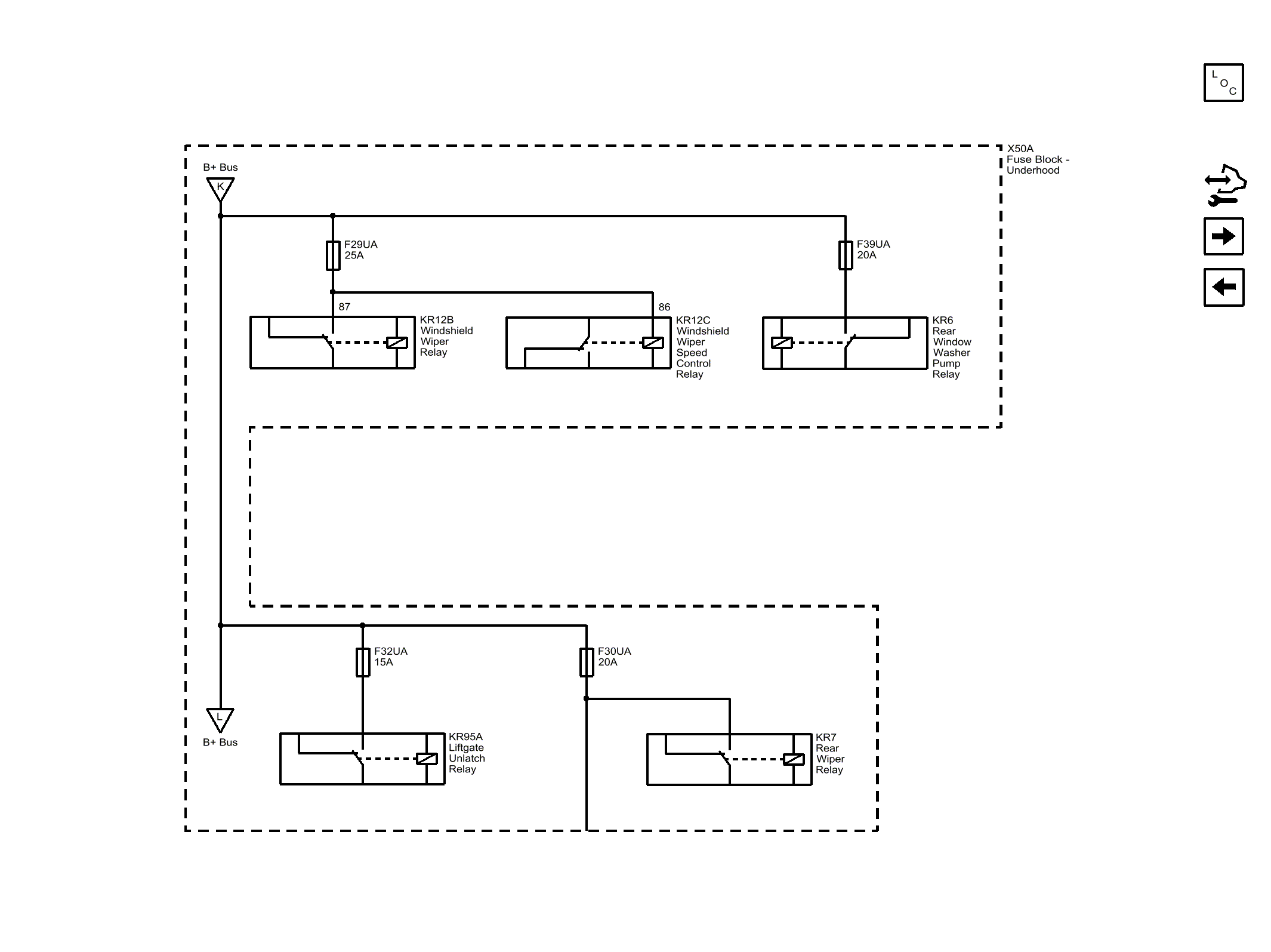

Home >> GMC >> 2016 >> Terrain SL, Gas >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Schematic Wiring Diagrams And Wiring Harness Routing Diagrams >> Wiring Harness Routing Diagrams And Schematic Wiring Diagrams >> Power Distribution Wiring Schematics >> B+ Bus (2 of 3)
