Ignition and Start Switch Replacement

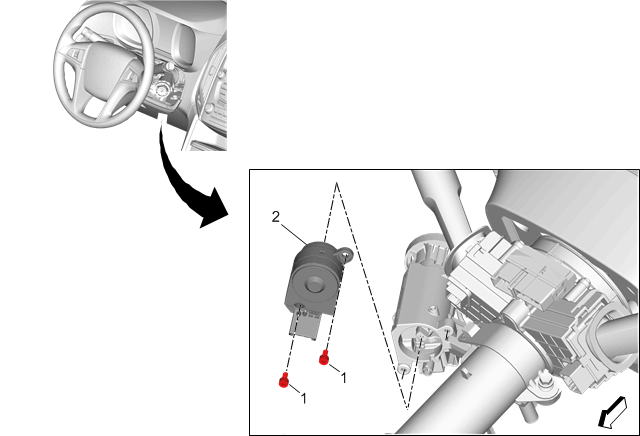

Fig 1: Ignition And Start Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection Steering Column Shroud Replacement
1	Ignition and Start Switch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Ignition and Start Switch Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Ignition and Start Switch Bolt (Qty: 2)

CAUTION:

Tighten
2 N.m (18 lb in)

Ignition and Start Switch
Procedure
Disconnect the electrical connector.
