Rear Wheelhouse Liner Replacement (Equinox)

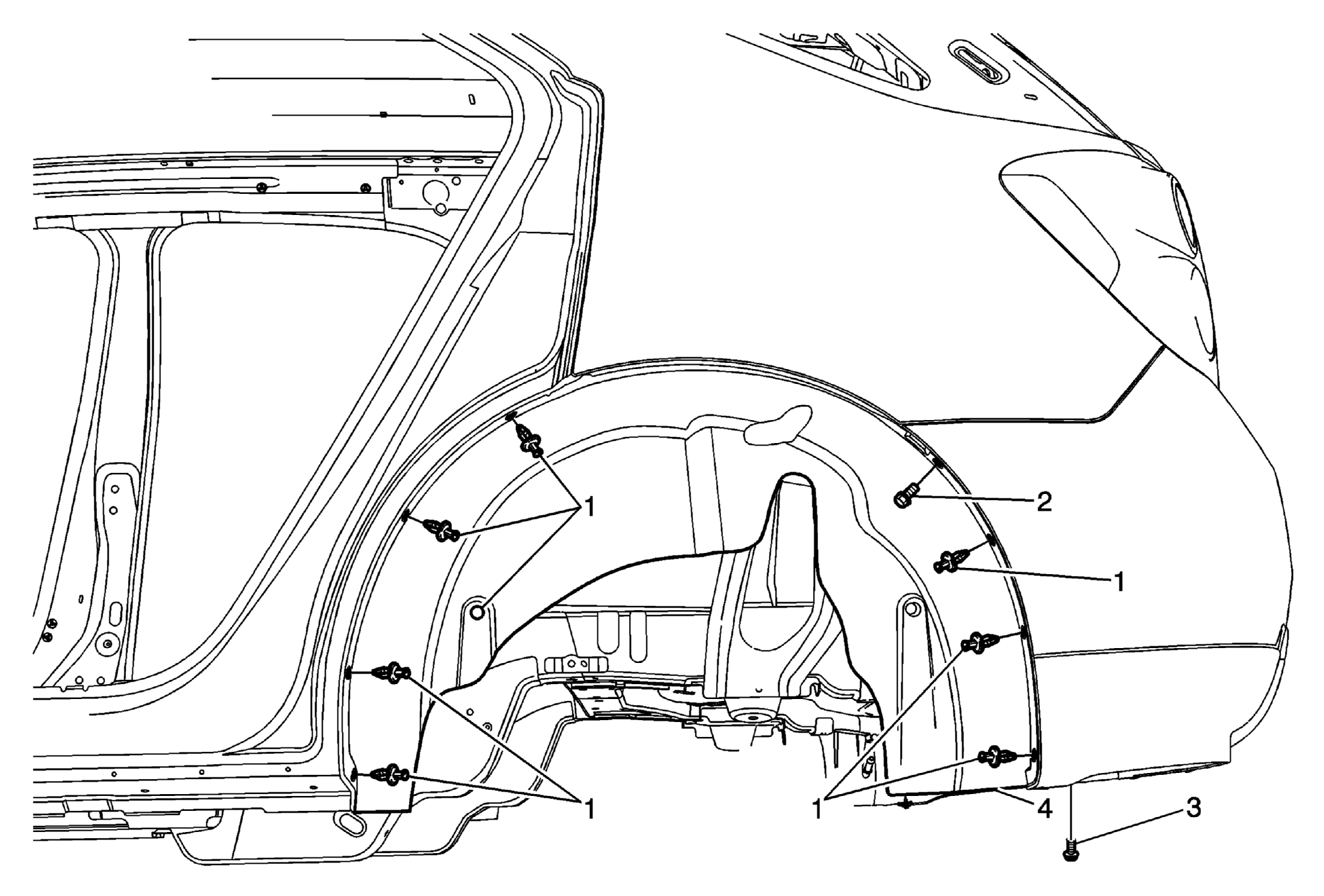

Fig 1: Identifying Front Wheelhouse Liner Components (Equinox)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Rear Wheelhouse Panel Liner Push-In Retainer (Qty: 7)
2	Rear Wheelhouse Panel Liner Screw CAUTION: Refer to Fastener Caution . Tighten  6 N.m (53 lb in)
3	Rear Wheelhouse Panel Liner Screw Tighten  6 N.m (53 lb in)
4	Rear Wheelhouse Panel Liner
