Hood Rear Weatherstrip Replacement (Equinox)

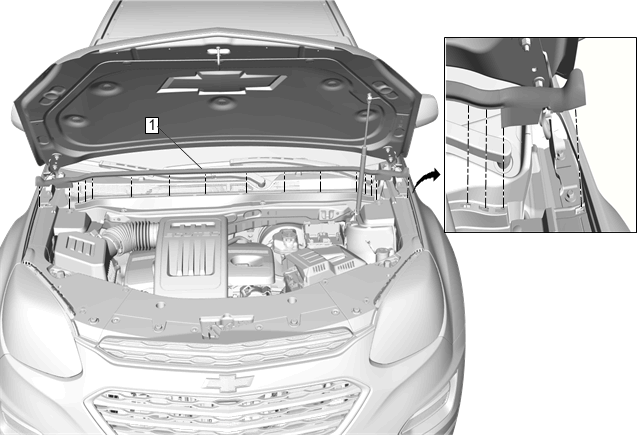

Fig 1: Hood Rear Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Opening Cover Replacement (Equinox)
1	Hood Rear Weatherstrip Procedure  The hood rear weatherstrip is held in place with plastic retainers that are part of the air inlet grille. Carefully pull the weatherstrip to the right/left to release from the retainers on the air inlet grille.
