Windshield Washer Nozzle Replacement (Terrain)

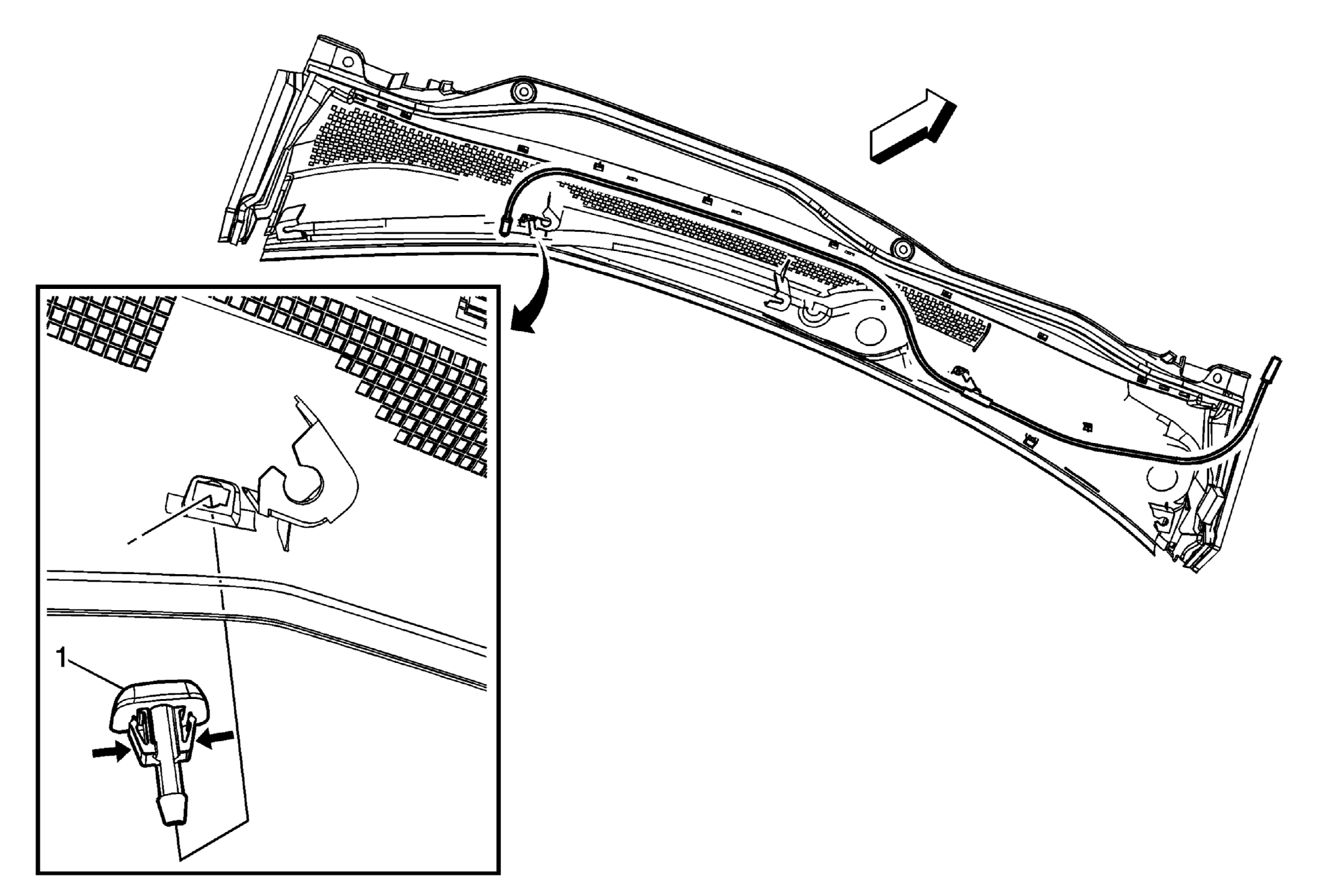

Fig 1: Windshield Washer Nozzle (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air inlet screen. Refer to Air Inlet Screen Replacement (Terrain) .
1	Windshield Washer Nozzle Passenger Side Procedure Disengage the windshield washer nozzle hose connection at the passenger or driver side windshield washer nozzle. Pinch the tabs on the underside of the washer nozzle and push the nozzle outward, away from the air inlet screen.

Callout

Component Name

Preliminary Procedure
Remove the air inlet screen. Refer to Air Inlet Screen Replacement (Terrain) .

Windshield Washer Nozzle Passenger Side

Procedure

Disengage the windshield washer nozzle hose connection at the passenger or driver side windshield washer nozzle.
Pinch the tabs on the underside of the washer nozzle and push the nozzle outward, away from the air inlet screen.
