Windshield Washer Nozzle Hose Replacement (Terrain)

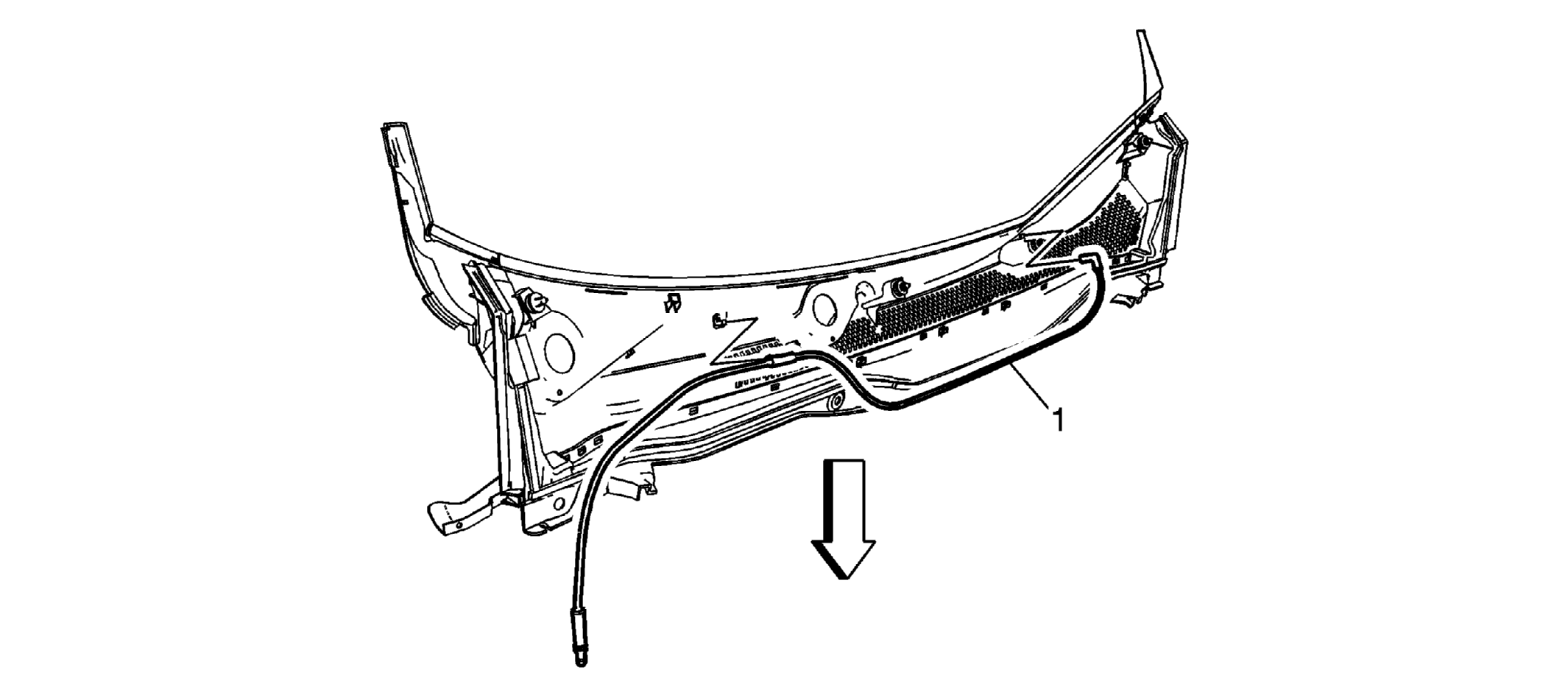

Fig 1: Windshield Washer Nozzle Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air inlet screen. Refer to Air Inlet Screen Replacement (Terrain) .
1	Windshield Washer Nozzle Hose Assembly Procedure Detach both hose connections from the windshield washer nozzles. Detach the washer nozzle hose from the integral clips on the bottom side of the air inlet screen. Remove the windshield washer nozzle hose.

Callout

Component Name

Preliminary Procedure
Remove the air inlet screen. Refer to Air Inlet Screen Replacement (Terrain) .

Windshield Washer Nozzle Hose Assembly

Procedure

Detach both hose connections from the windshield washer nozzles.
Detach the washer nozzle hose from the integral clips on the bottom side of the air inlet screen.
Remove the windshield washer nozzle hose.
