Heater Outlet Hose Replacement (Heater Outlet Hose Tee to Heater Outlet Pipe LFX)

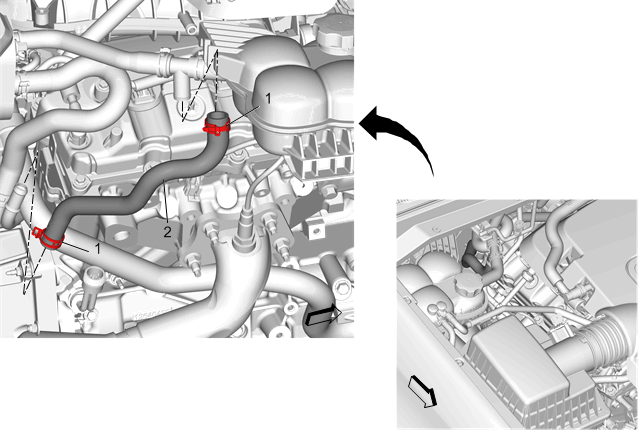

Fig 1: Heater Outlet Hose (Heater Outlet Hose Tee to Heater Outlet Pipe LFX)
GM3717513Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Cooling System Draining and Filling (Static Fill)Cooling System Draining and Filling (Vac n Fill)
  2. Remove the plenum front panel. Plenum Front Panel Replacement
  3. Remove the air cleaner outlet duct. Air Cleaner Outlet Duct Replacement
1 Heater Outlet Hose Clamp (Qty: 2)
Procedure
Reposition the heater outlet hose clamps (1) using the BO-38185  hose clamp pliers.
Special Tools
BO-38185  Hose Clamp Pliers
Equivalent regional tools:Special Tools
2 Heater Outlet Hose

Procedure

  1. Fill the cooling system to the proper level. Cooling System Draining and Filling (Static Fill)Cooling System Draining and Filling (Vac n Fill)
  2. Inspect the cooling system for leaks.
