Engine Oil Pressure Sensor and/or Switch Replacement
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . |
|

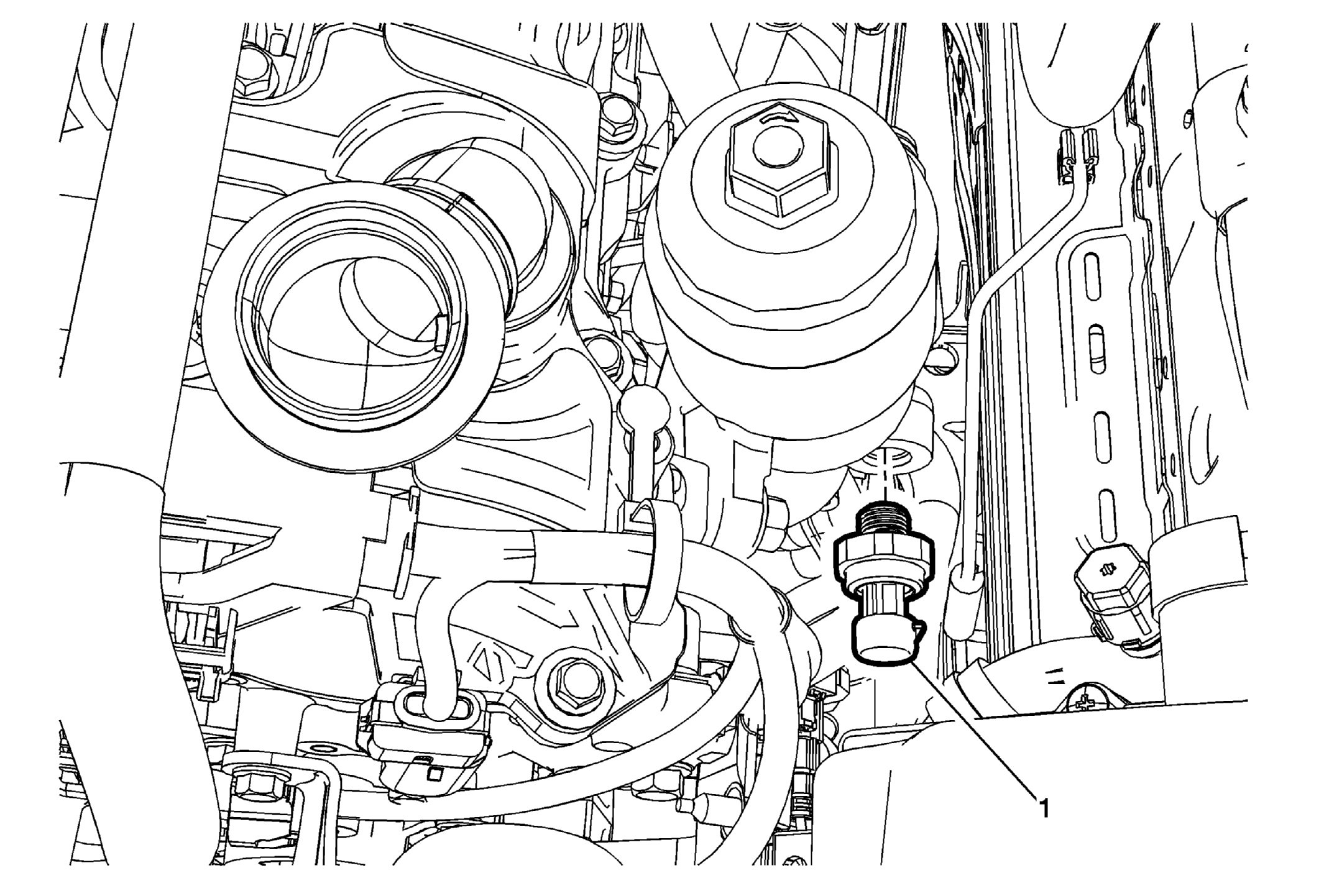

| 1 | Engine Oil Pressure Sensor and/or Switch
CAUTION:
Refer to Component Fastener Tightening Caution . Procedure Disconnect the oil pressure sensor electrical connector. Tighten 20 N.m (15 lb ft) Special Tools EN-41712 Oil Pressure Switch Socket For equivalent regional tools, refer to Special Tools . |
