Coolant Recovery Reservoir Hose Replacement (LCV)

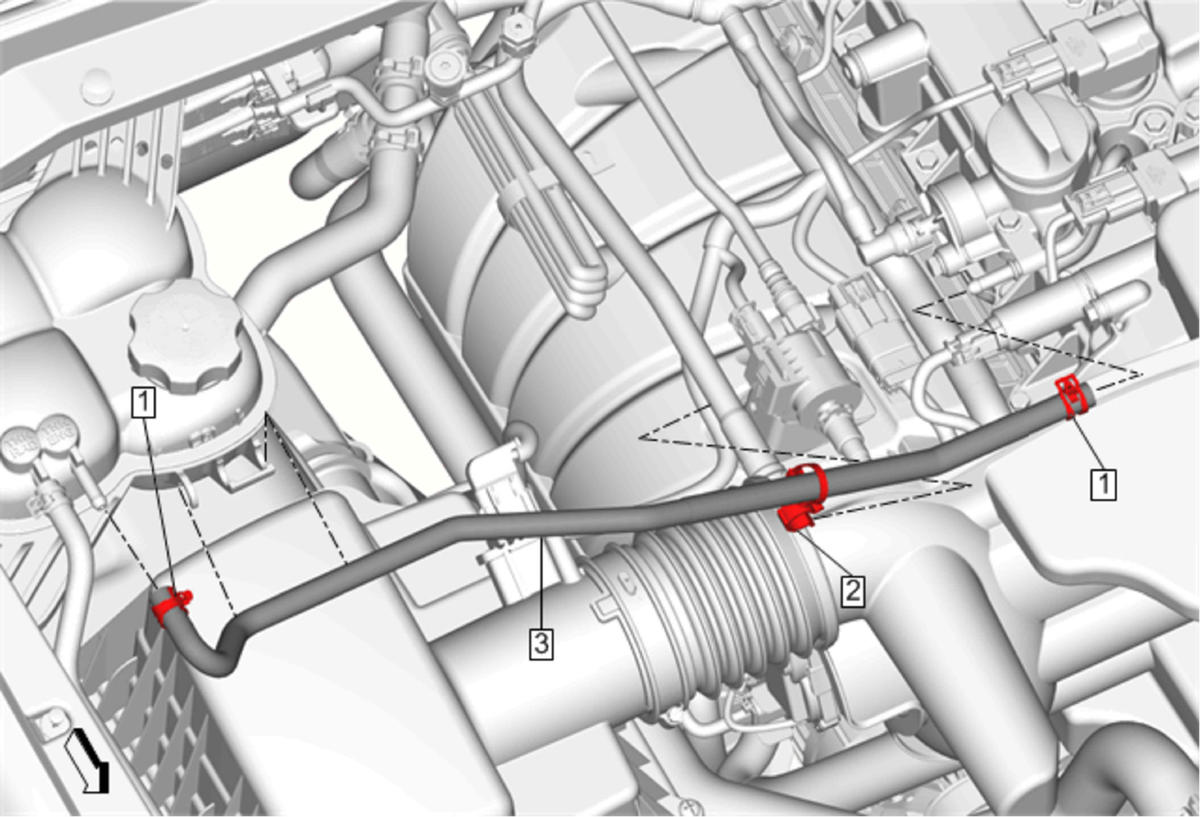

Fig 1: Coolant Recovery Reservoir Hose (LCV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement
1	Coolant Recovery Reservoir Hose Clamp (Qty: 2) Procedure Disengage BO-38185 hose clamp pliers. Special Tool BO-38185 hose clamp pliers
2	Coolant Recovery Reservoir Hose Clip Procedure Unclip the coolant recovery reservoir hose from the positive crankcase ventilation tube.
3	Coolant Recovery Reservoir Hose Procedure Unclip the coolant recovery reservoir hose from the radiator surge tank. Check the engine coolant level and fill to the proper level if necessary. Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (Vac n Fill)
