Hood Rear Weatherstrip Replacement (Enclave)

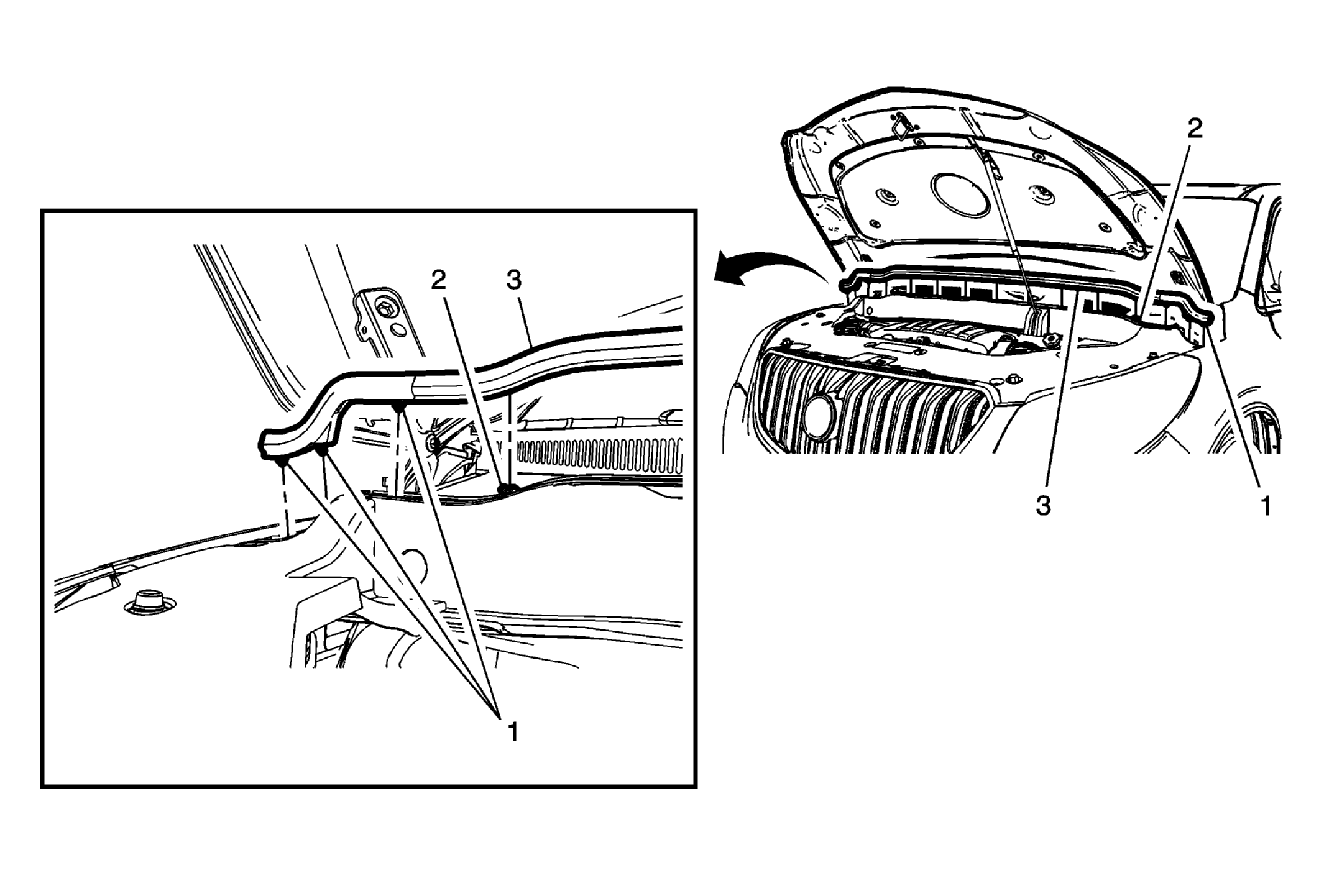

| Callout | Component Name |
|---|---|
| 1 | Hood Rear Weatherstrip Push-In Retainer (Qty: 6) Procedure Use a suitable tool to release the push-in retainers. |
| 2 | Hood Rear Weatherstrip Retainer (Qty: 9) Procedure The hood rear weatherstrip is held in place with plastic retainers that are part of the air inlet grille. Carefully pull the weatherstrip to the right/left to release from the retainers on the air inlet grille. |
| 3 | Hood Rear Weatherstrip |
