Front Compartment Front Sight Shield Replacement (Acadia)

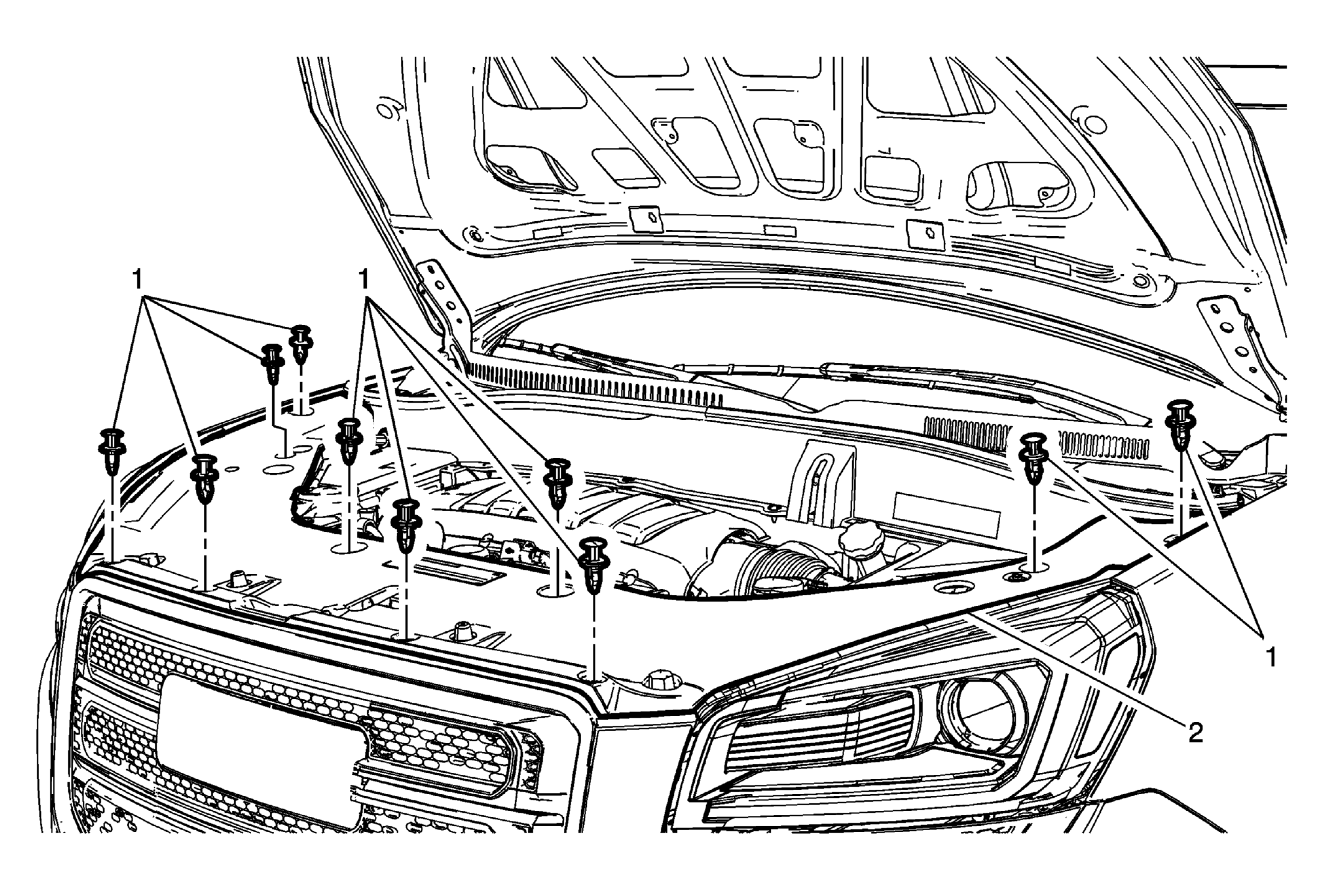

Fig 1: Front Compartment Front Sight Shield (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Procedure  Disconnect the ends of the hood rear weatherstrip from the front sight shield. Refer to Hood Rear Weatherstrip Replacement (Acadia) .
1	Front Compartment Front Sight Shield Push-In Retainer (Qty: 10)
2	Front Compartment Front Sight Shield
