Instrument Panel Compartment Replacement (Acadia)

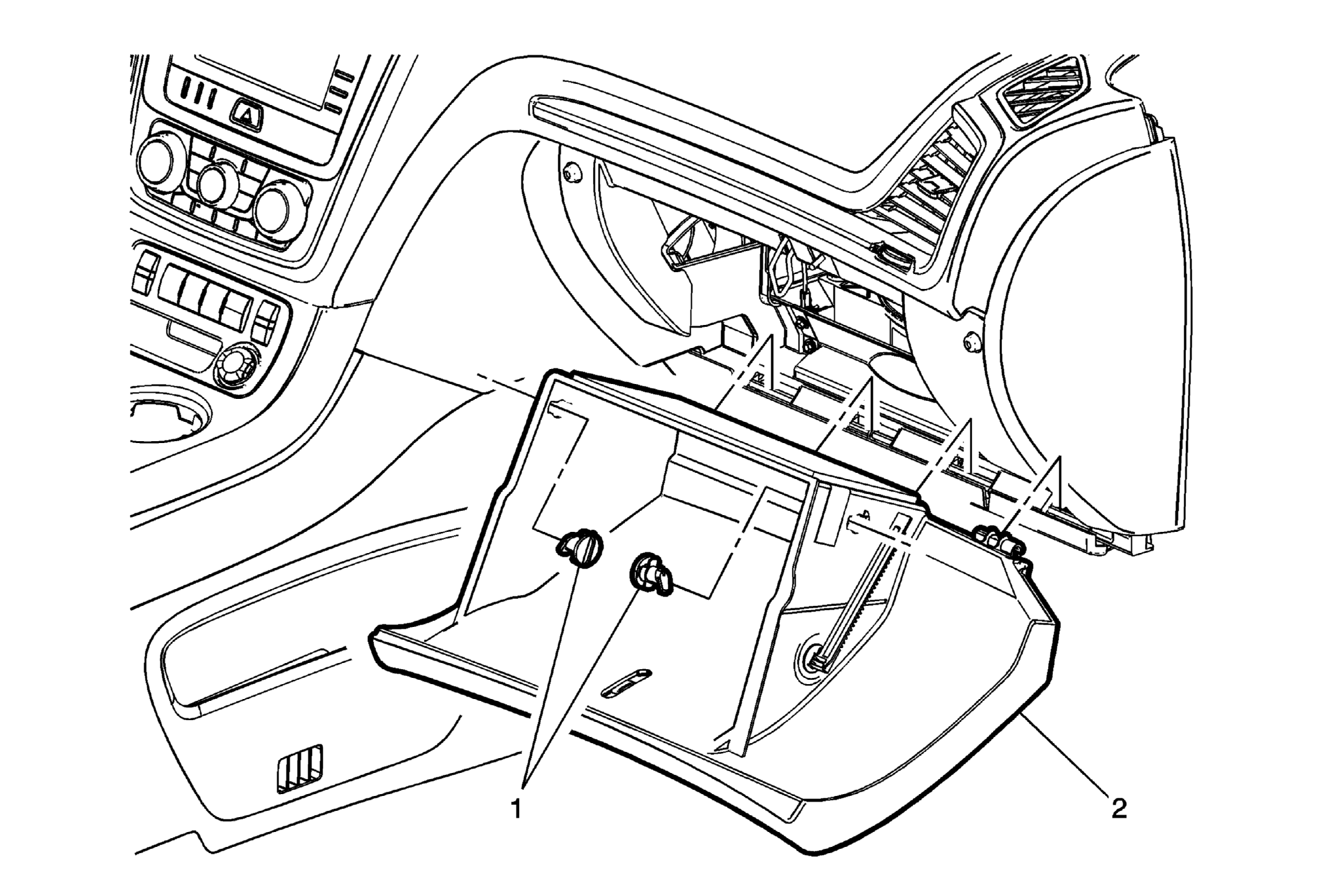

Fig 1: Instrument Panel Compartment (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Compartment Door Stop (Qty: 2) Procedure Twist the compartment door stop and pull outward to remove.
2	Instrument Panel Compartment Assembly Procedure Unsnap the instrument panel compartment assembly from the instrument panel. When replacing the instrument panel compartment, transfer all necessary components. When reinstalling the instrument panel compartment assembly ensure the instrument panel compartment dampener arm is aligned properly to the dampener gear assembly.

Callout

Component Name

Instrument Panel Compartment Door Stop (Qty: 2)
Procedure
Twist the compartment door stop and pull outward to remove.

Instrument Panel Compartment Assembly

Procedure

Unsnap the instrument panel compartment assembly from the instrument panel.
When replacing the instrument panel compartment, transfer all necessary components.
When reinstalling the instrument panel compartment assembly ensure the instrument panel compartment dampener arm is aligned properly to the dampener gear assembly.
