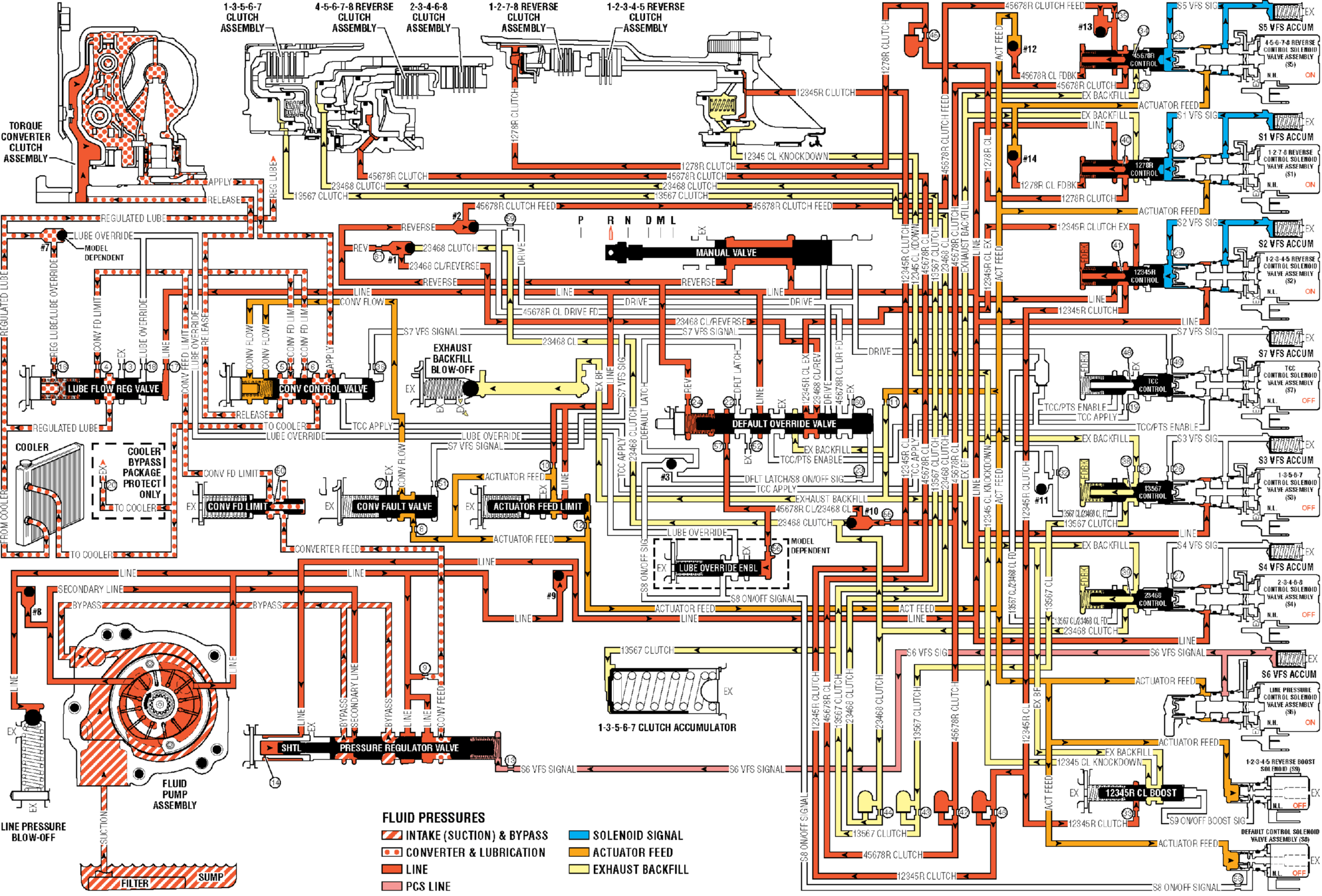

Home >> GMC >> 2015 >> Yukon SLE, RWD >> Repair and Diagnosis >> Transmission >> Hydraulic Diagrams >> Automatic Transmission - 8L90 (M5U) - Description And Operation >> Description and Operation >> Reverse >> Reverse - A/T System Hydraulic Diagram
