Drive Range, Third Gear - A/T System Hydraulic Diagram

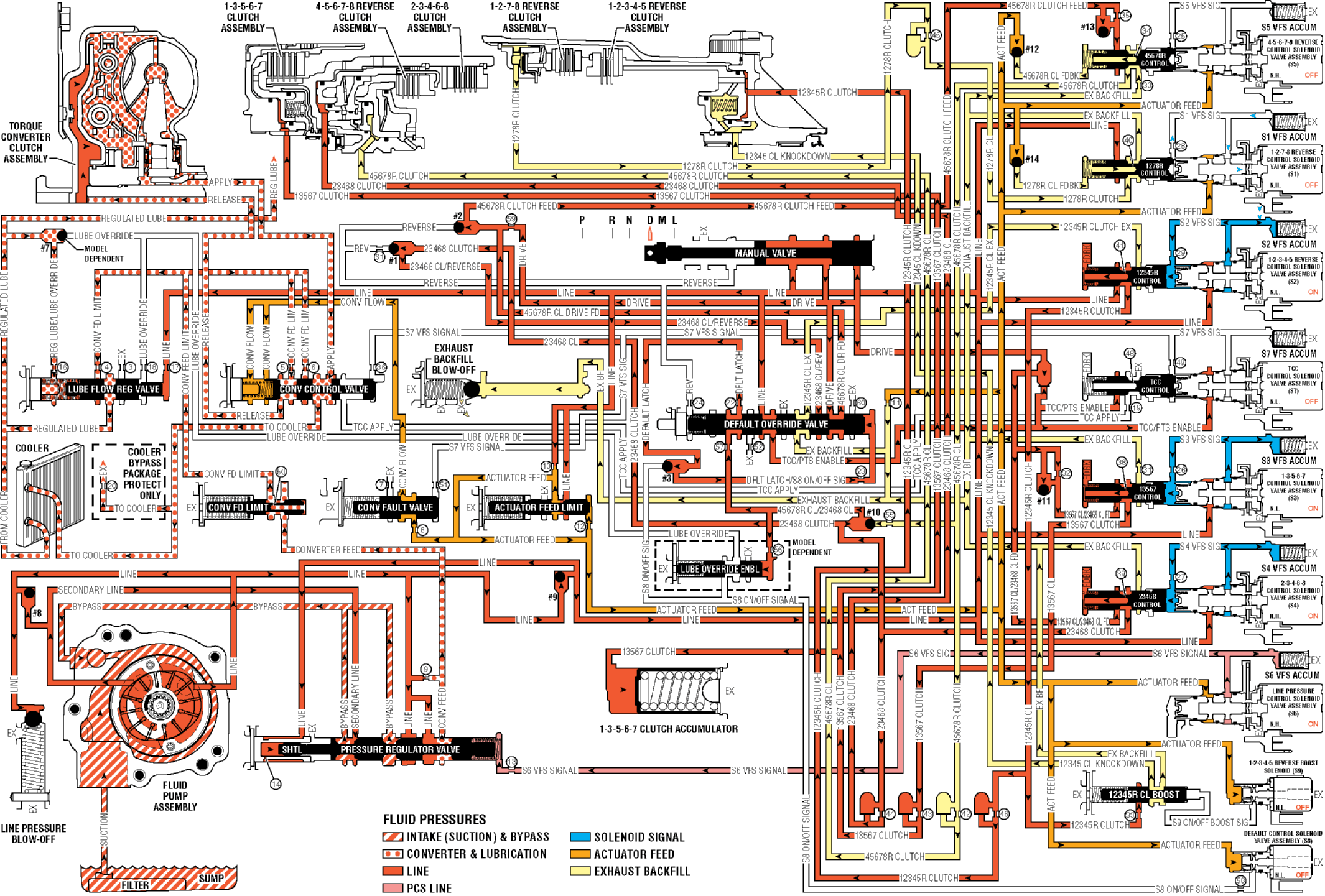

Fig 1: Drive Range, Third Gear - A/T System Hydraulic Diagram

GM3803556

Courtesy of GENERAL MOTORS COMPANY
